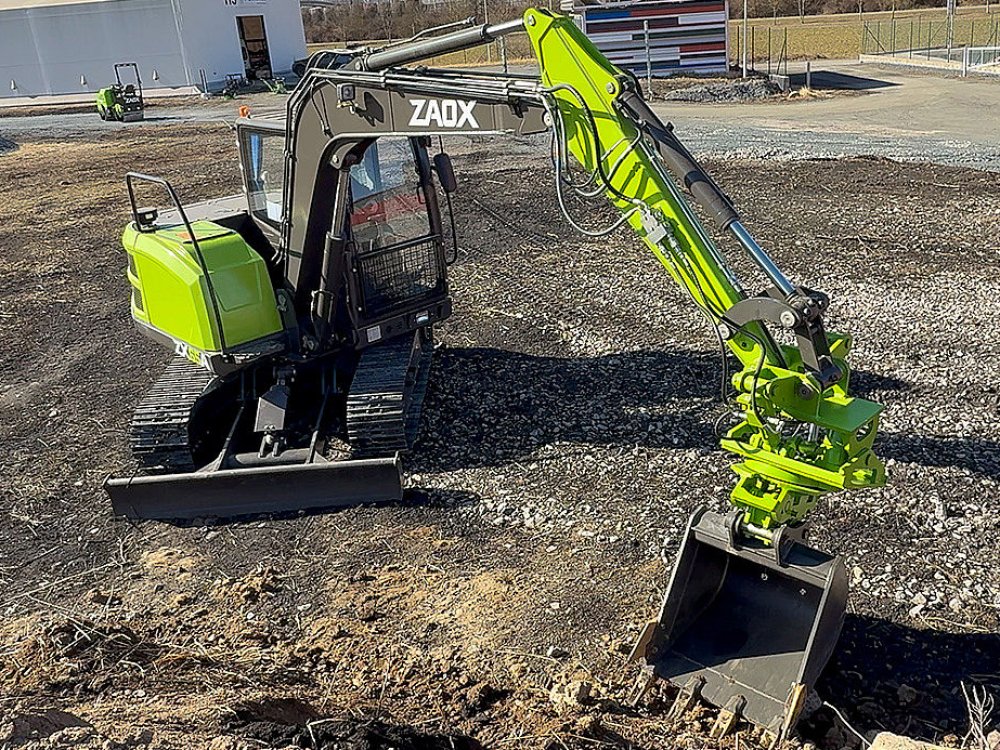

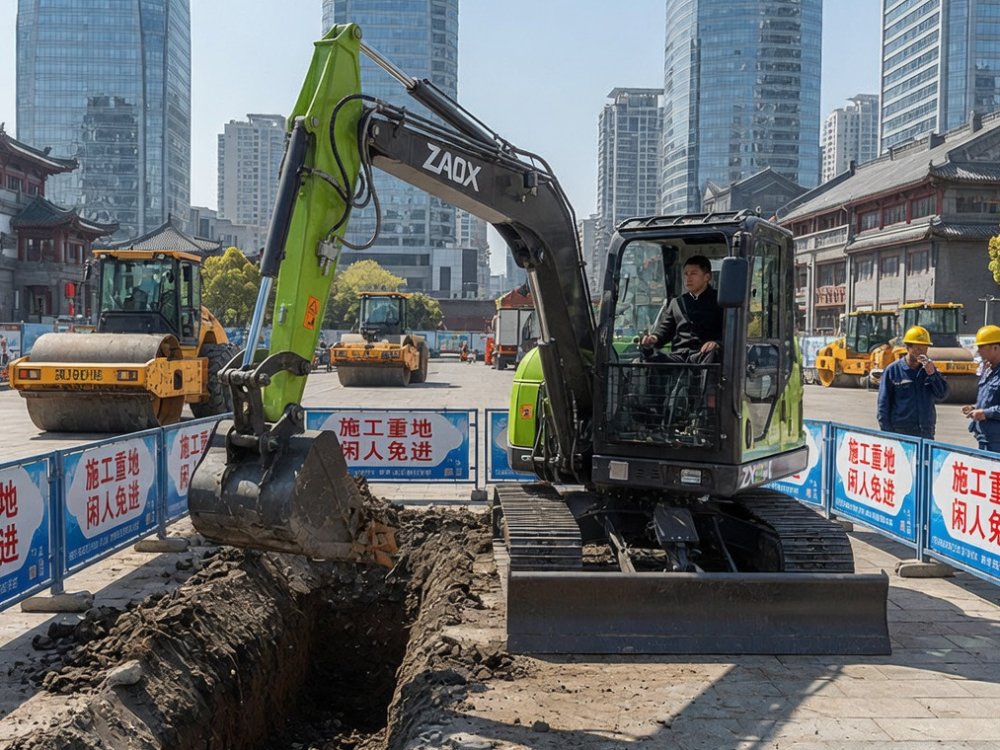

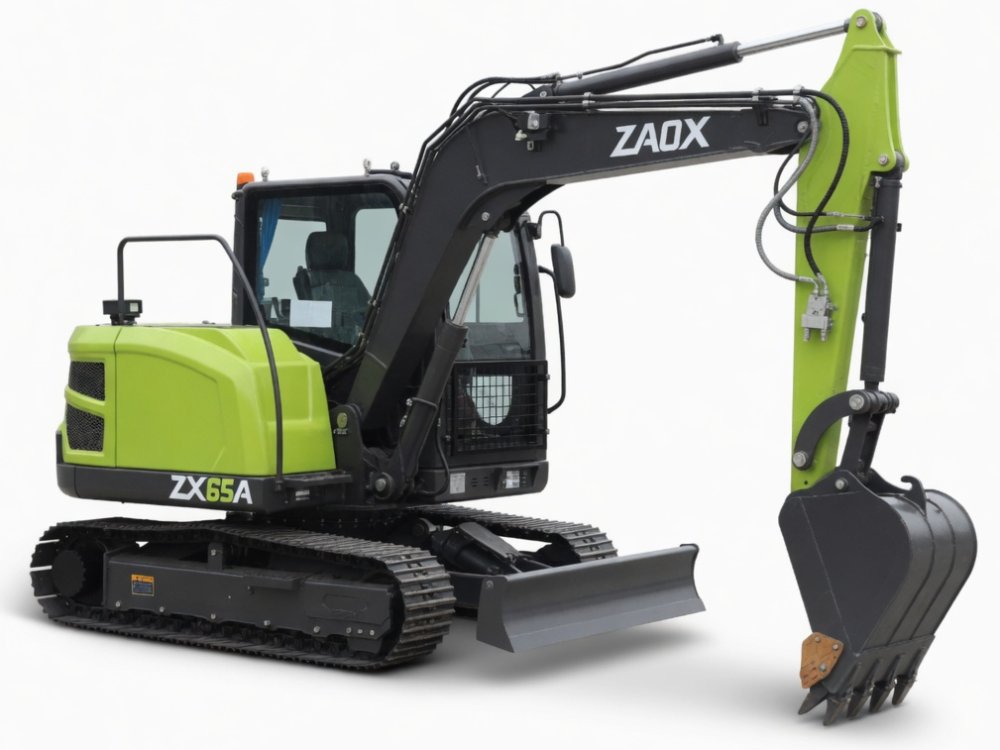

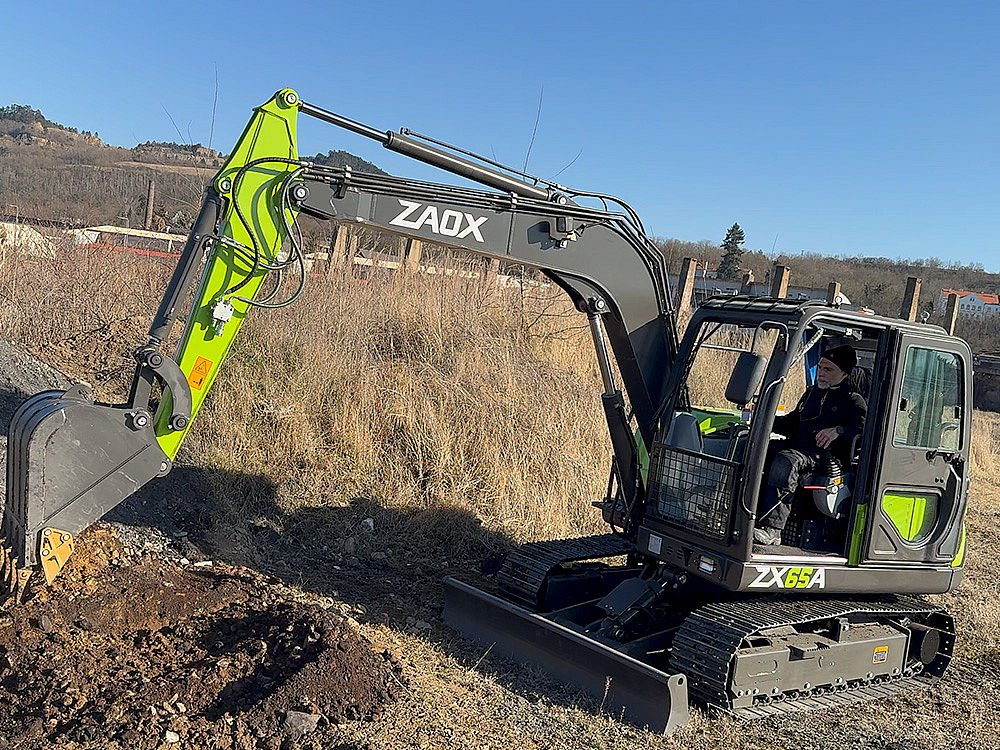

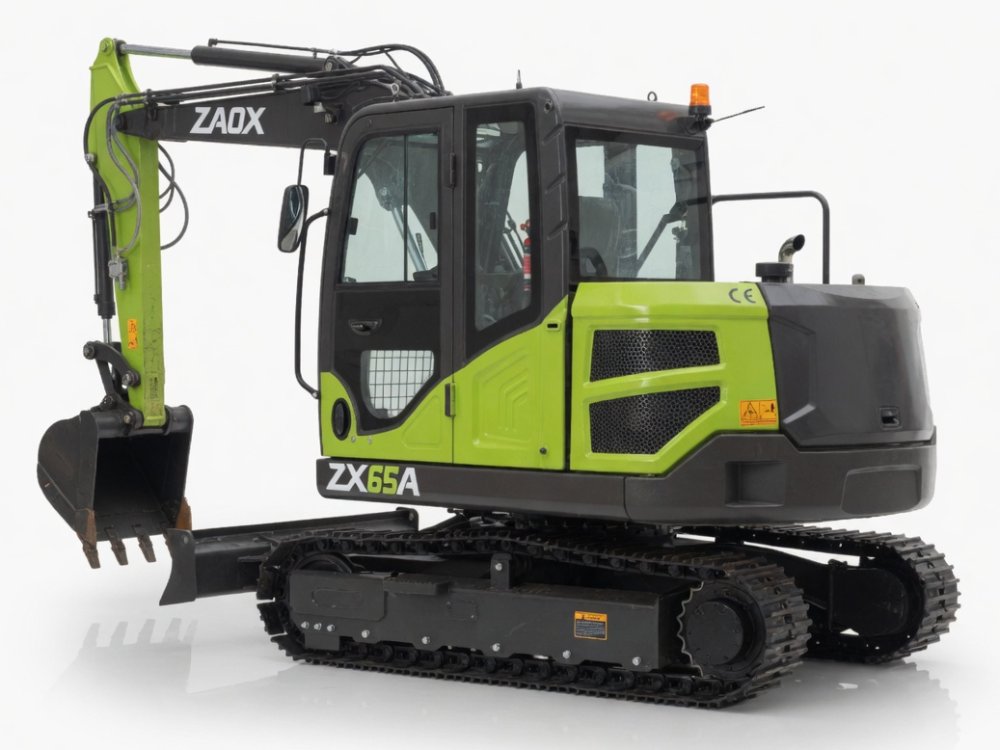

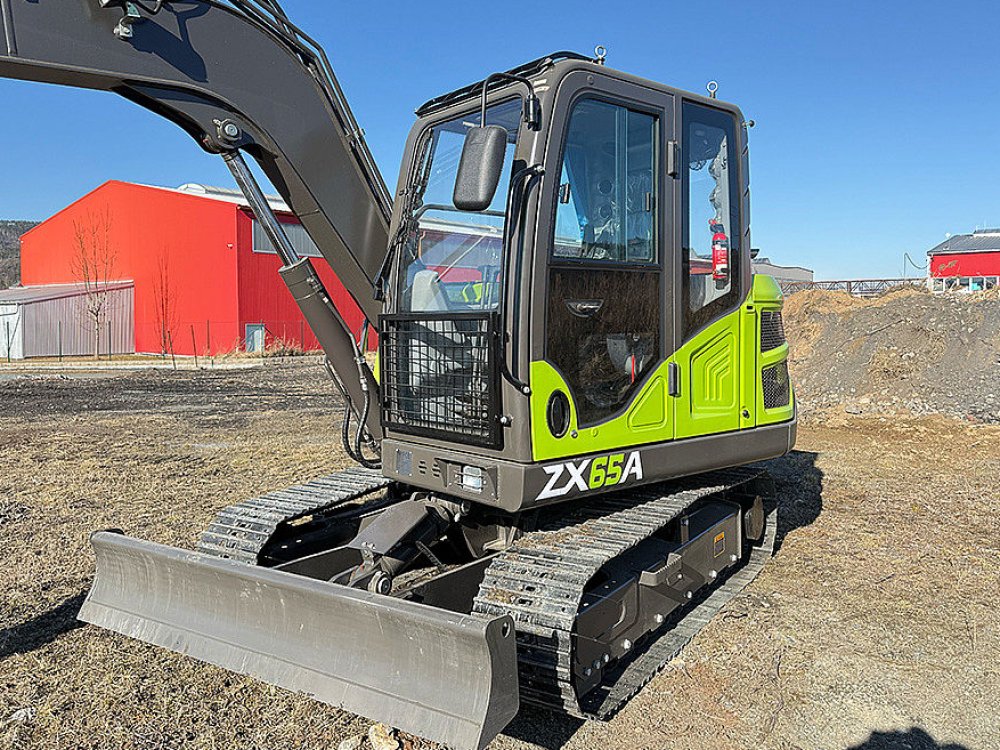

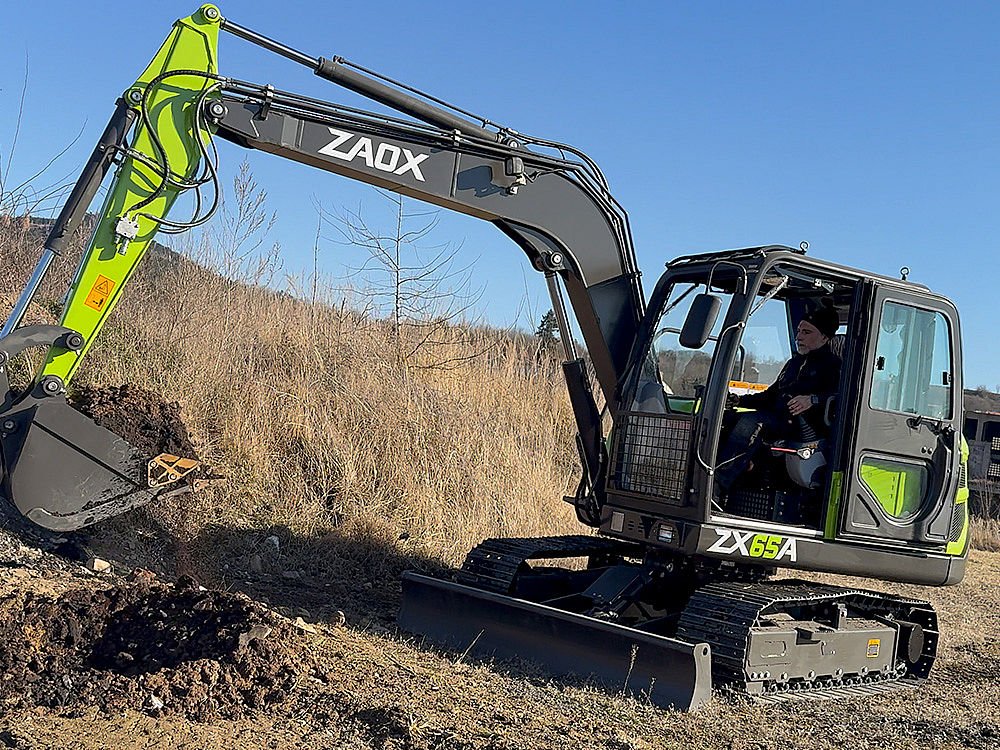

ZX65A

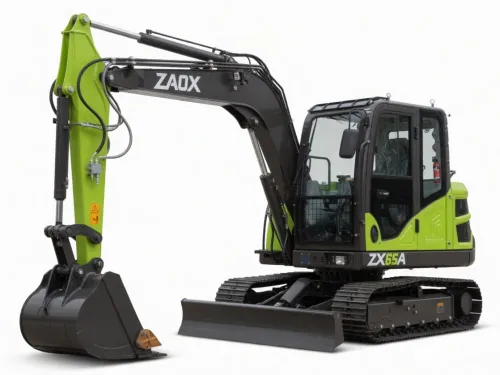

EXCAVATOR ZX65A
WEIGHT: 6 500 KG
The ZX65A is an excellent hydraulic excavator with an operative weight of 6350 kg (around 6.5 tons) and with a max Digging Depth over 4,1 mt. The machine comes with a 700 mm Standard Bucket, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard.
The ZX65A is powered by a reliable and low fuel consumption Kubota V2607 Euro V engine in combination with top notch Hydraulic Components. The Zaox Load Sensing System provide a precise control of different execution elements, good controllability and high working efficiency.
The machine has plenty of power, it is fast, reliable and an enviable quality/price ratio.
The ZX65A is powered by a reliable and low fuel consumption Kubota V2607 Euro V engine in combination with top notch Hydraulic Components. The Zaox Load Sensing System provide a precise control of different execution elements, good controllability and high working efficiency.
The machine has plenty of power, it is fast, reliable and an enviable quality/price ratio.
Starting at
780 000 Kč
943 800 Kč VAT included
🛡️
Extend your warranty — 2 years or 2000 hours for only + 24 000 Kč
FACTORY OPTIONS
 |
Hydraulic Thumb | + 24 000 Kč |
 |
Quick Hitch Aux Pipeline | + 13 000 Kč |
 |
Second Aux. Pipeline | + 37 000 Kč |
AVAILABLE ACCESSORIES
420 mm Bucket with Teeth
Tilt Rotator with quick hitch
1200 mm Clean Bucket
LP263
550 mm Wide Track Shoes for ZX65A Excavator
DETAILED SPECIFICATION
| Standard Bucket Capacity/Length (?/mm) | 0.21/700 |
| Swing Speed (rmp) | 1-11 |
| Gradeability (°) | 35 |
| Max. Bucket Digging Force (KN) | 48 |
| Max. Arm Digging Force (KN) | 35 |
| Engine Model | KUBOTA V2706 |
| Power/Revolution speed (Kw(HP)/rpm) | 42.4[56.8]/2200 |
| System Pressure (MPa) | 28 |
| Fuel Tank Capacity (L) | 87 |
| Hydraulic Circuit Capacity (L) | 100 |
| Cooling Circuit Capacity (L) | 18 |
| Engine Oil Capacity (L) | 12 |
| Bucket capacity (m³) | 0.21 |

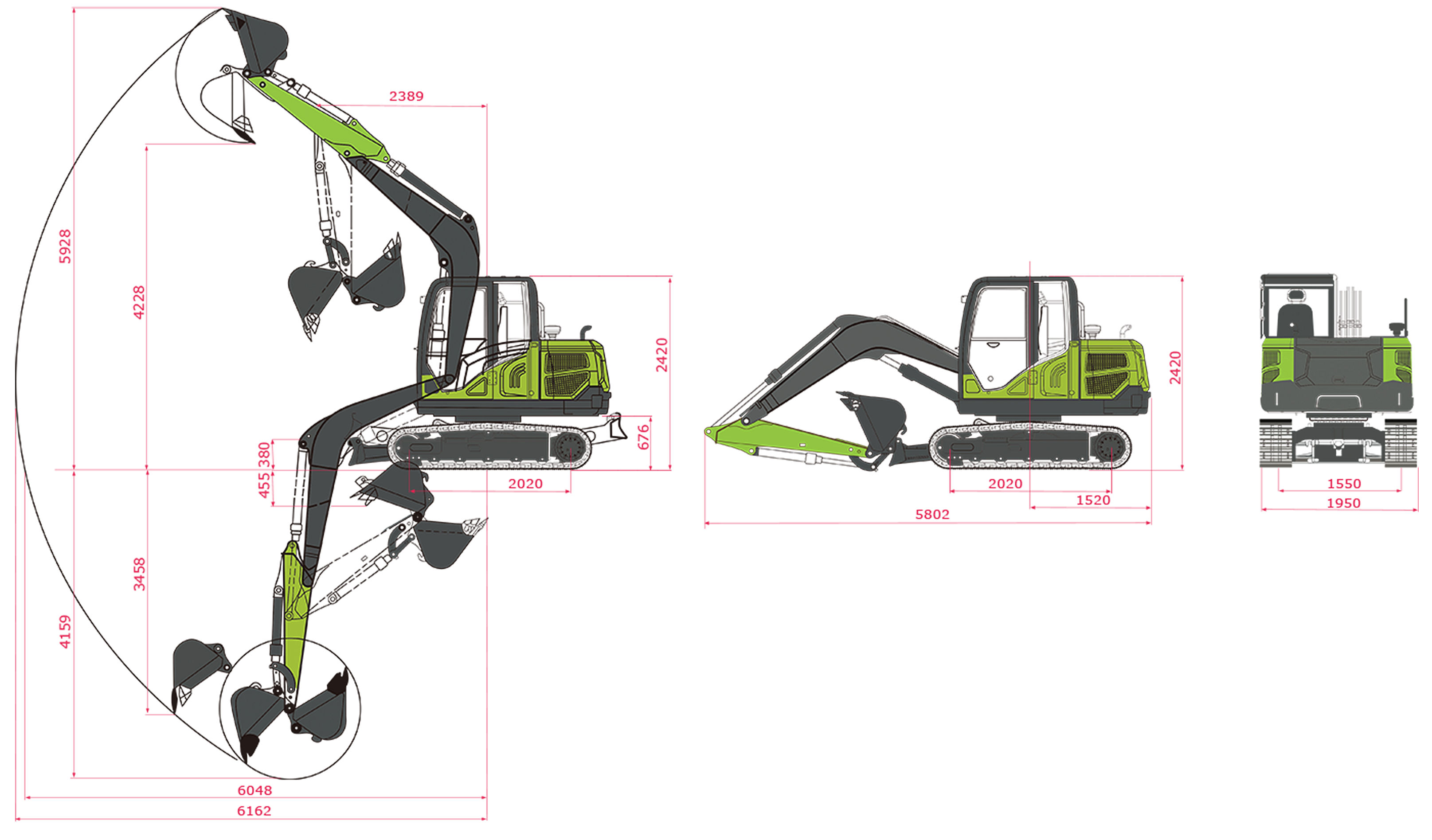

| Max. Digging Height (mm) | 5499 |
| Max. Dumping Height (mm) | 3845 |
| Max. Digging Depth (mm) | 3808 |
| Max. Vertical Digging Depth (mm) | 2983 |
| Max. Digging Radius (mm) | 6128 |
| Max. Swing Radius (mm) | 2607 |
| MAx. Dozer Blade Lifting Distance (mm) | 376 |
| MAx. Dozer Blade Cutting Distance (mm) | 474 |
| Total Length (mm) | 5940 |
| Total Width (mm) | 1950 |
| Machine Weight (with all fluids) (kg) | 6275 |
| Cabin Height (mm) | 2600 |
| Axle Base (mm) | 1990 |
| Minimum Ground Clearance (mm) | 353 |
| Wheel (track) Distance (mm) | 1480 |
| Tail Swing Radius (mm) | 1689 |
 |
2 years or 2000 hours | + 24 000 Kč |
|
|
3 years or 3000 hours | + 39 500 Kč |
