ZD500

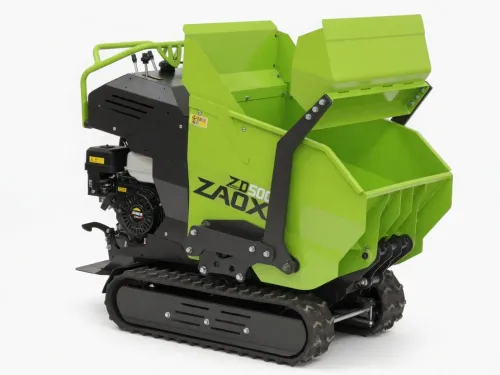

MINI DUMPER ZD500
WEIGHT: 488 KG

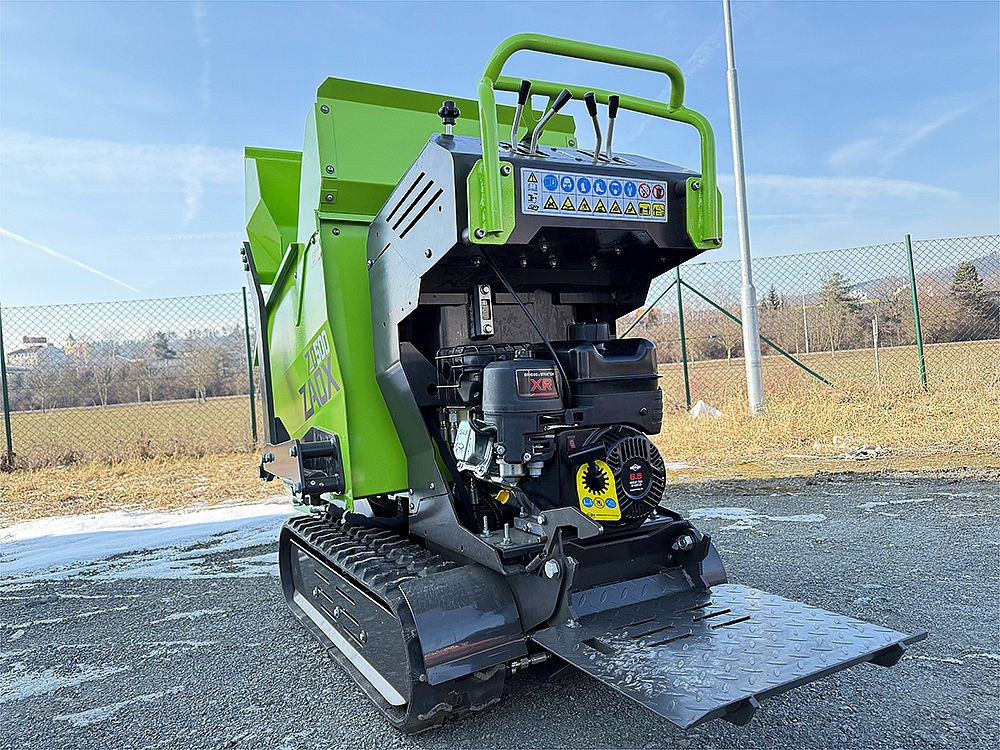

ENGINE MODEL: BRIGGS & STRATTON
BOX CAPACITY: 0.5 m³

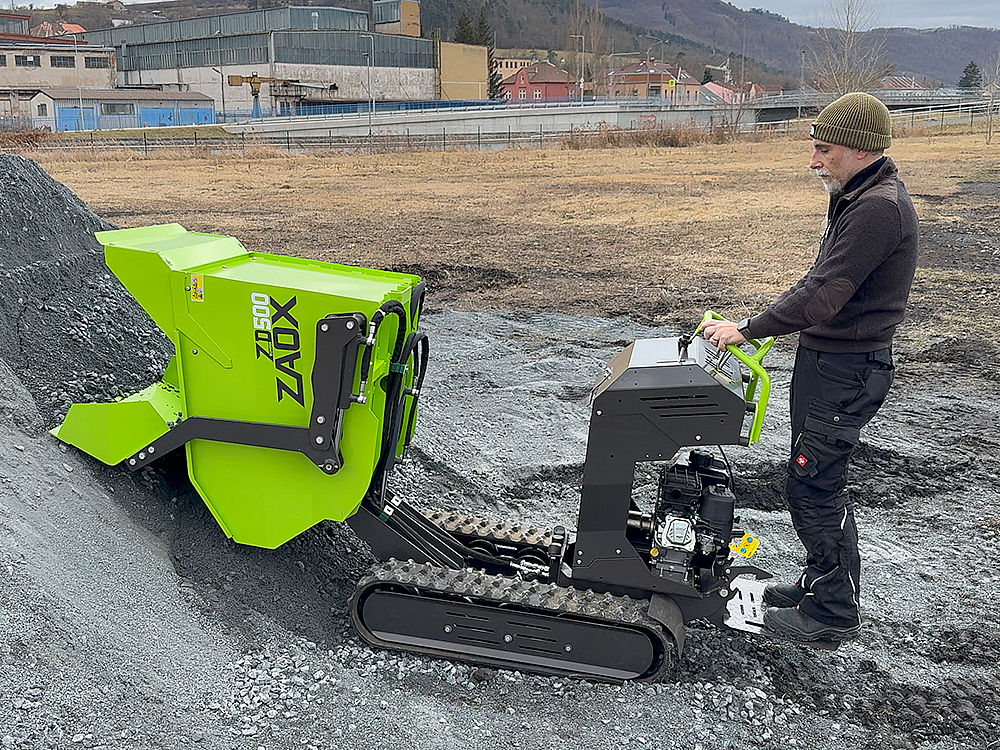

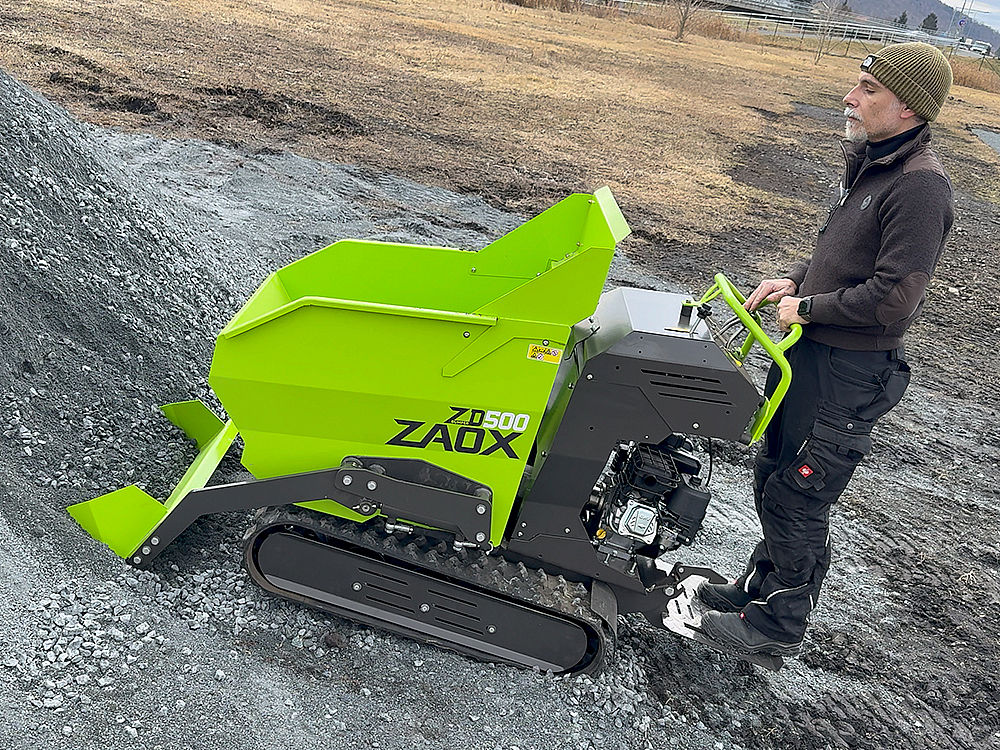

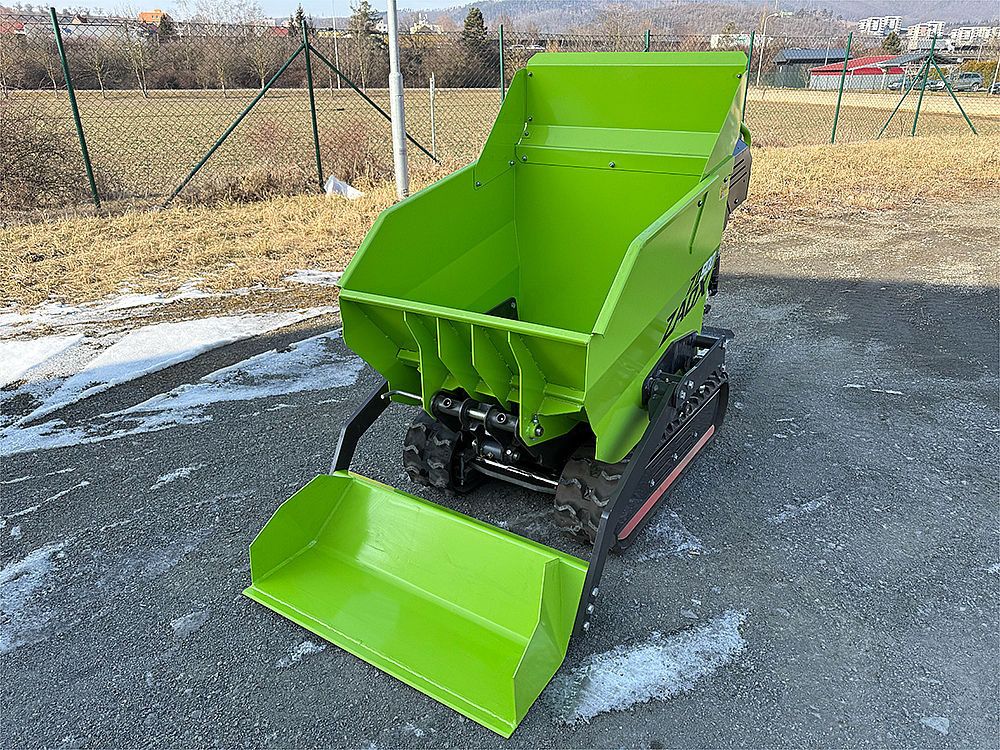

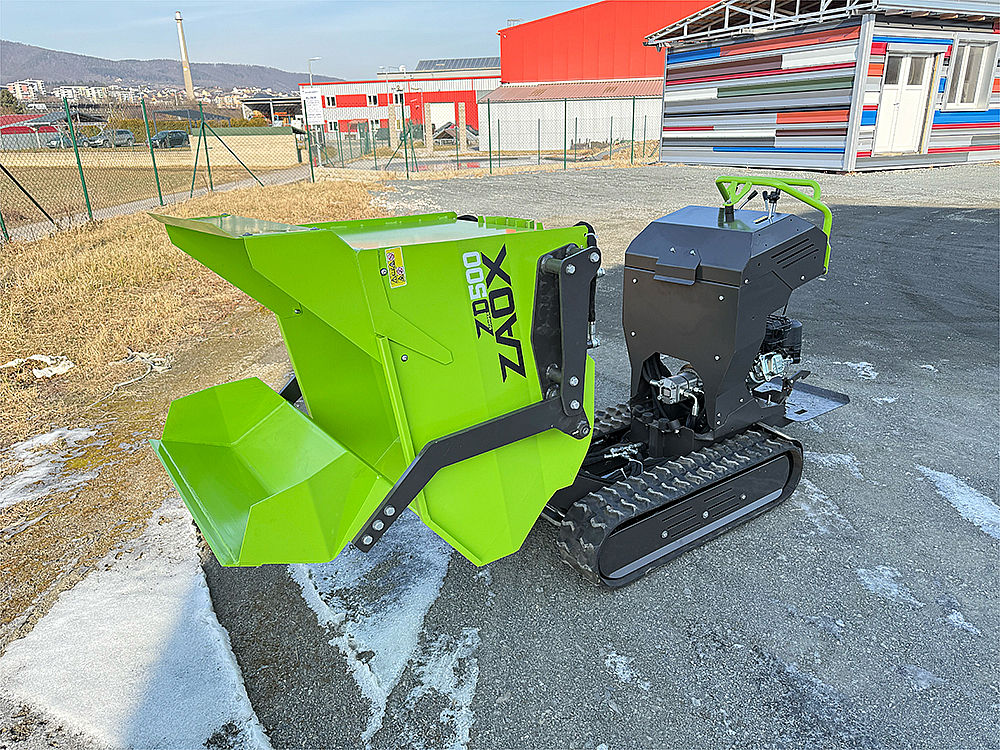

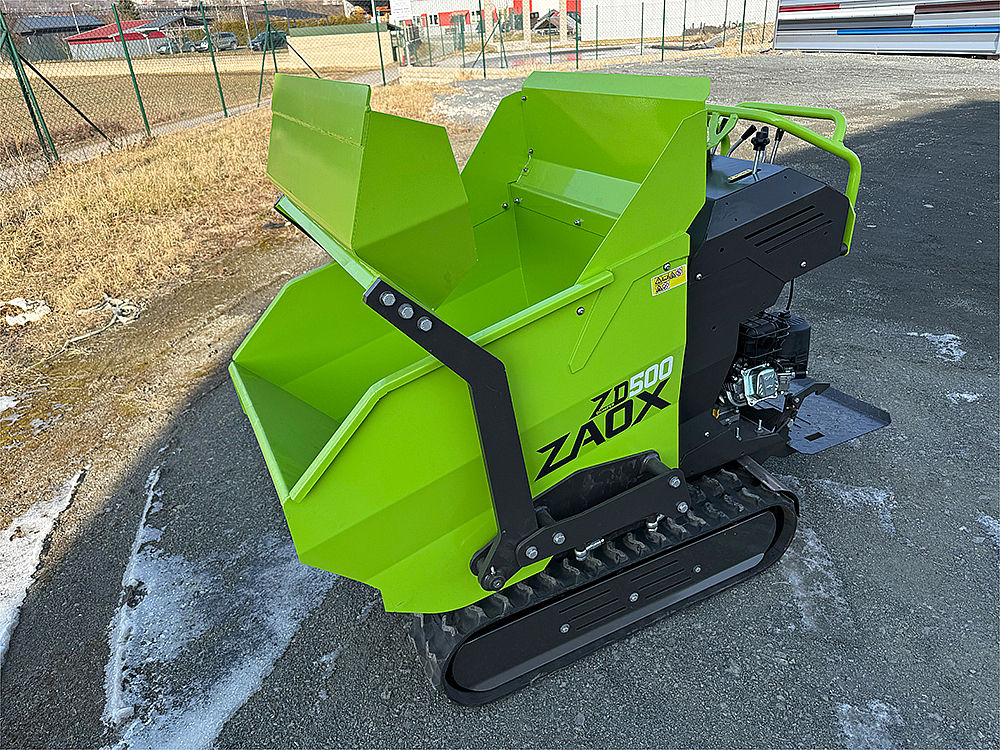

The ZAOX ZD500 mini dumper is a robust and adaptable machine engineered to effortlessly tackle all your heavy lifting and material transportation requirements.

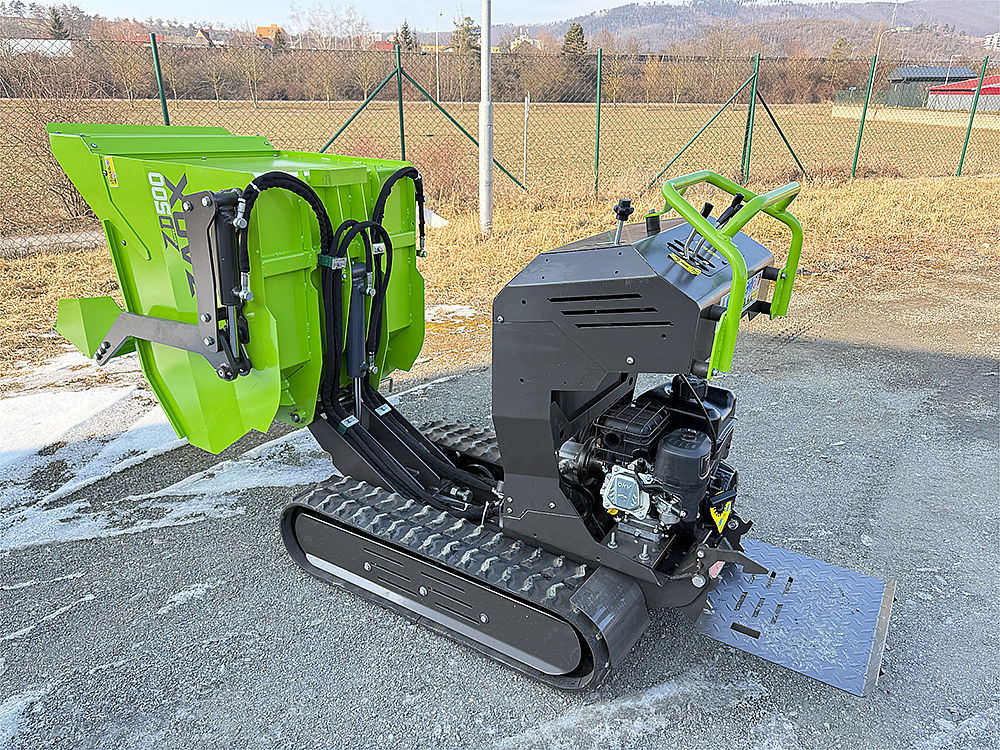

Its standard hydraulic lift system allows for seamless loading and unloading of materials, saving you both time and energy while providing precise control.

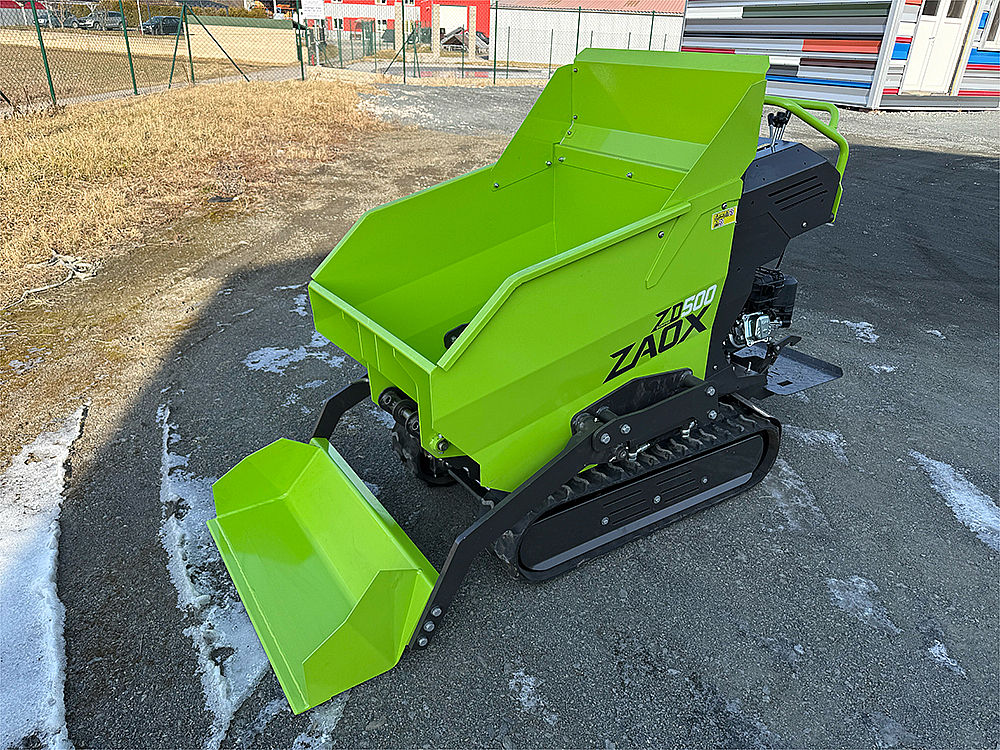

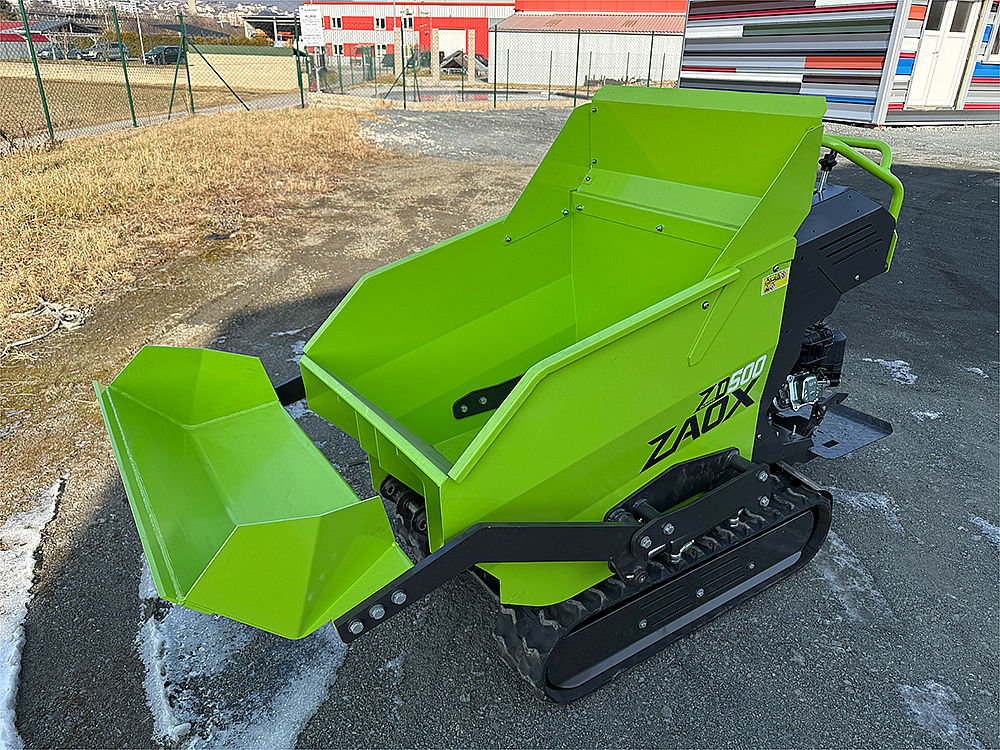

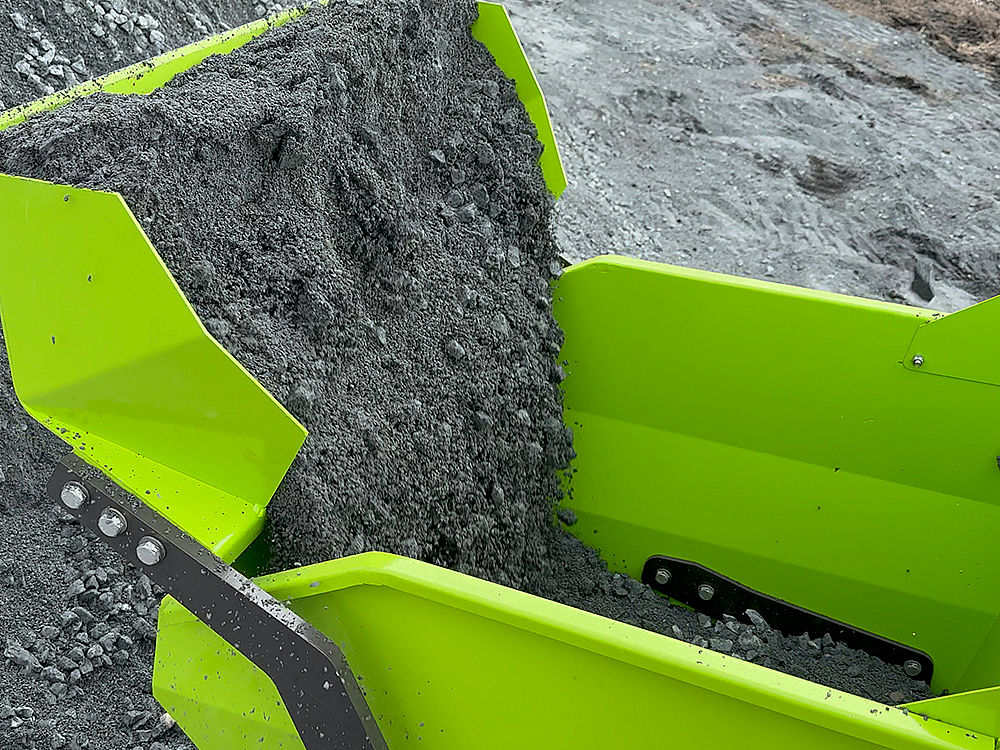

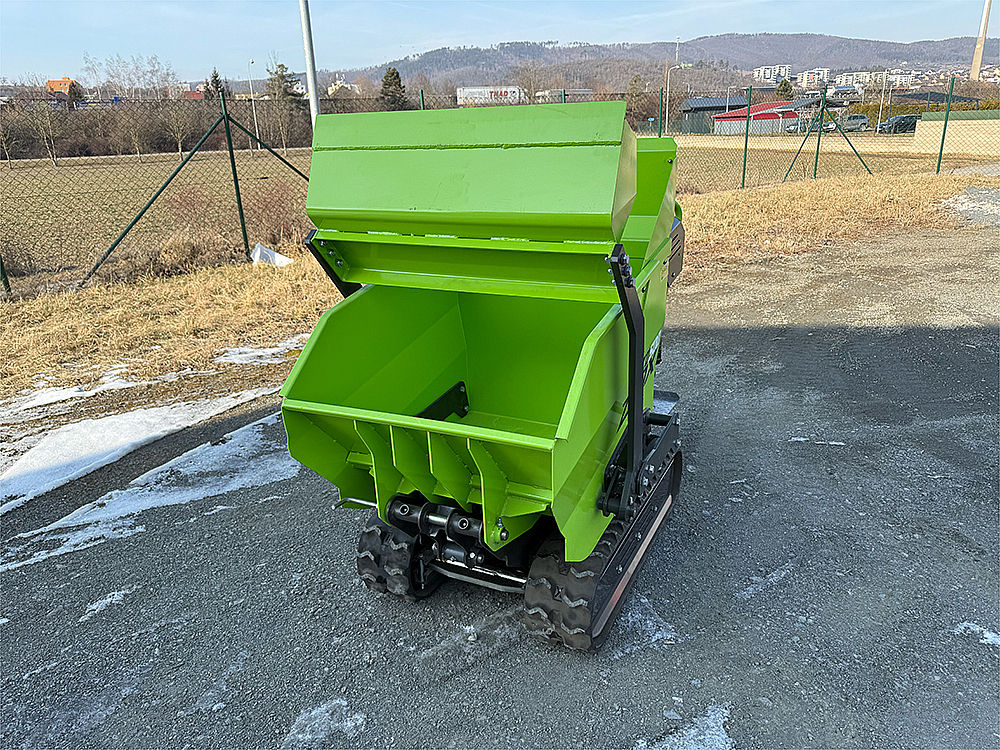

The ZD500’s bucket is a standout feature, offering an impressive 0.5 m² box capacity, ideal for transporting a wide range of materials such as soil, gravel, rocks, and more. Regardless of the terrain or payload, this mini dumper rises to the occasion.
Another key advantage is the ZD500’s compact design, with a slim width of just 840mm. This narrow build ensures exceptional maneuverability, even in confined spaces, making it a transformative solution for areas inaccessible to larger equipment.
Its standard hydraulic lift system allows for seamless loading and unloading of materials, saving you both time and energy while providing precise control.
The ZD500’s bucket is a standout feature, offering an impressive 0.5 m² box capacity, ideal for transporting a wide range of materials such as soil, gravel, rocks, and more. Regardless of the terrain or payload, this mini dumper rises to the occasion.
Another key advantage is the ZD500’s compact design, with a slim width of just 840mm. This narrow build ensures exceptional maneuverability, even in confined spaces, making it a transformative solution for areas inaccessible to larger equipment.
Starting at
116 000 Kč
140 360 Kč VAT included
🛡️
Extend your warranty — 2 years or 2000 hours for only + 7 000 Kč
DETAILED SPECIFICATION
| Engine Model | BRIGGS & STRATTON |
| Power/Revolution speed (Kw(HP)/rpm) | 4.9[6.5]/3600 |
| Operative weight (Kg) | 488 |
| Cooling Mode | Air-cooled |
| Fuel | Gasoline |
| Start Mode | Manual |
| Driving Mode | Hydraulic |
| Steering Mode | Hydraulic |
| Unload Mode | Hydraulic |
| Box Capacity (m³) | 0.5 |
| Loading Capacity (Kg) | 500 |
| Track Width (mm) | 180 |
| Flow of Pump (L/min) | 6 |
| Net Weight (kg) | 413 |
| Box length (mm) | 816 |
| Box Width (mm) | 680 |
| Box Depth (mm) | 620 |
| Box Type | Integrated/one-piece |
| Length (mm) | 1680 |
| Width (mm) | 840 |
| Height (mm) | 1275 |
 |
2 years or 2000 hours | + 7 000 Kč |
|
|
3 years or 3000 hours | + 12 000 Kč |
