ZA10

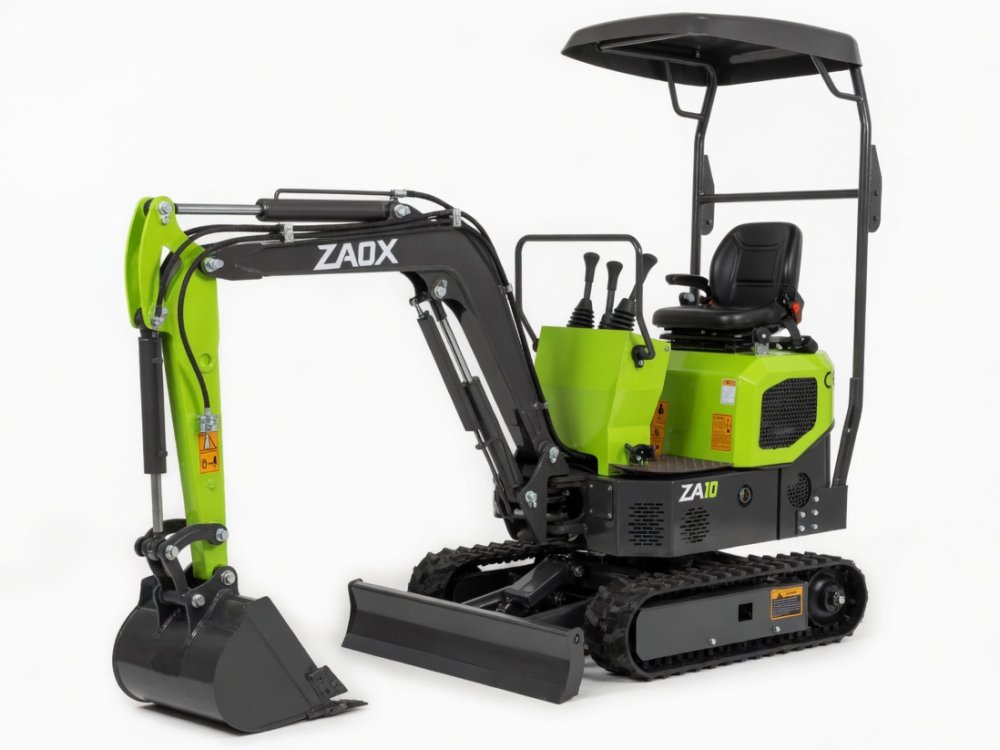

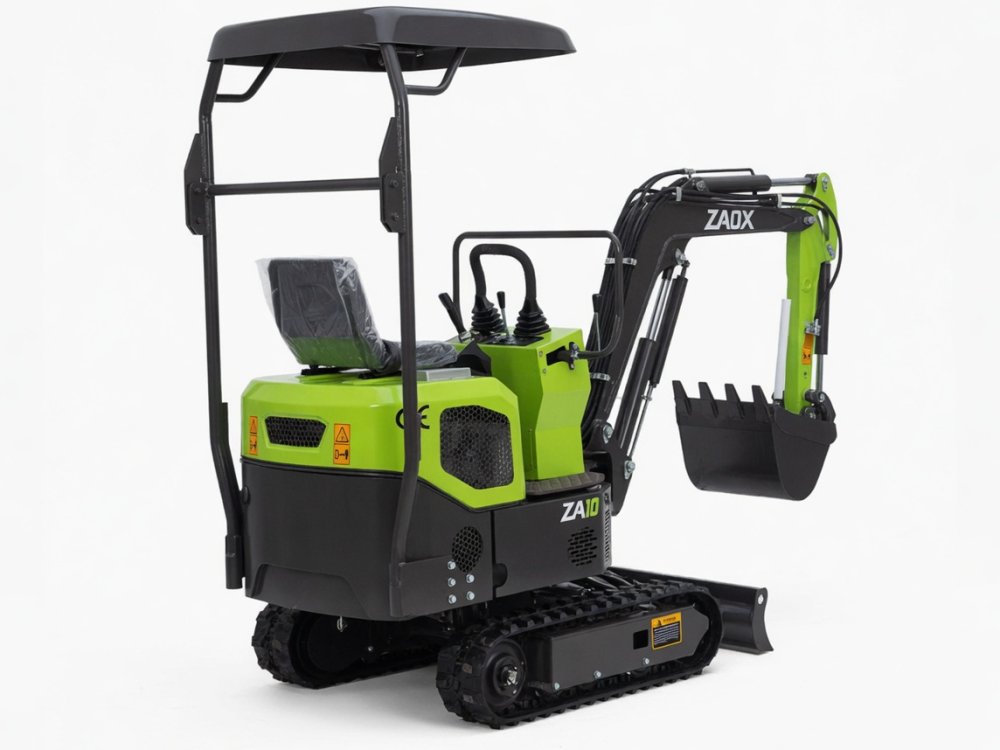

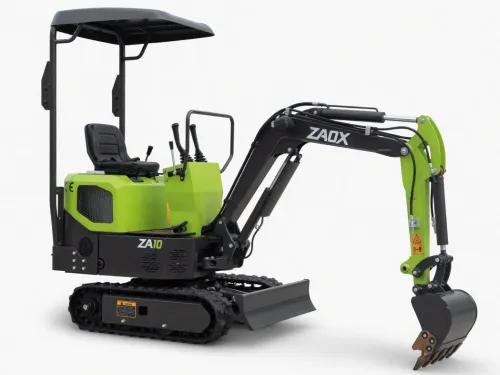

MINI EXCAVATOR ZA10
WEIGHT: 945 KG

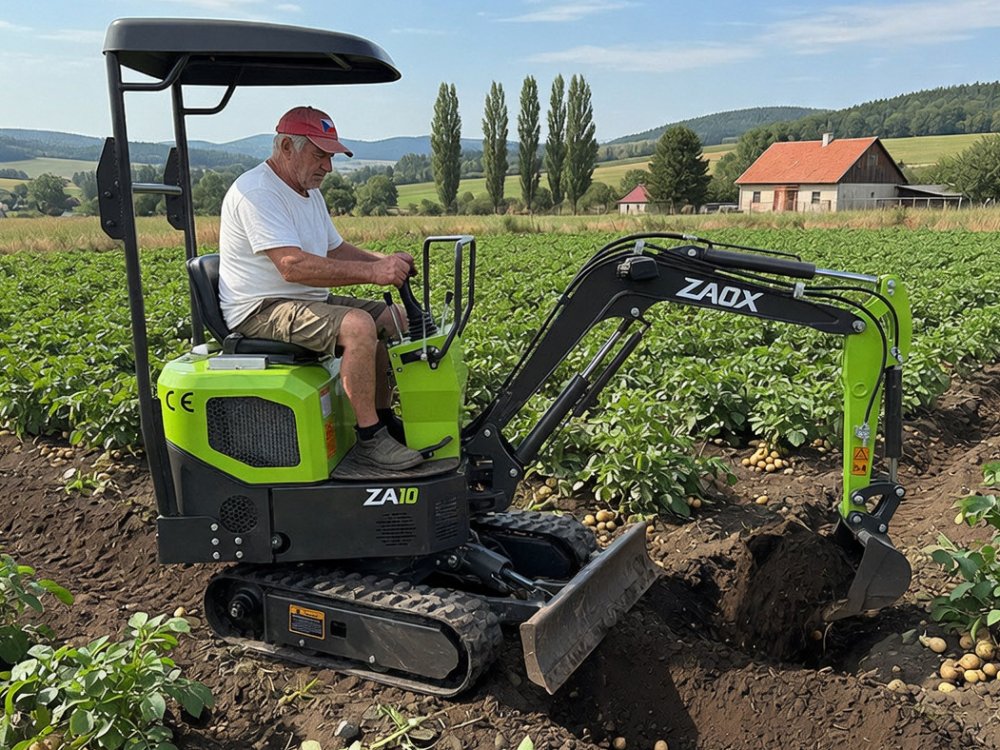

The ZA10 is a cost-effective hydraulic mini excavator with an operative weight of 945 kg (around 1 ton), especially suitable for agricultural work. The machine has a max digging depth of over 1.7 m and comes with a standard bucket of 38 cm and an Auxiliary Hydraulic Pipeline (to power, for example, a hydraulic hammer) as standard.

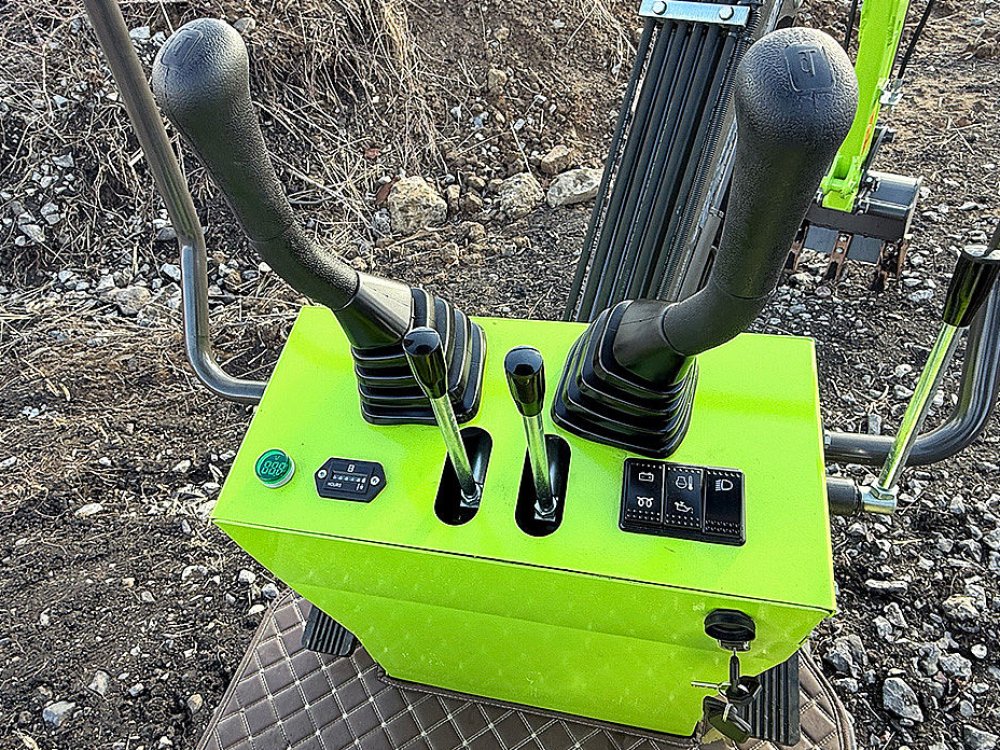

The ZA10 comes as standard with a reliable, low-consumption KOOP KD192FB engine, with the option to upgrade to a Kubota Z428 Euro V engine for those who require it. Combined with quality hydraulic components, it delivers dependable performance. The mini excavator's controllability is ensured by a simple lever system that guarantees a high degree of precision.
The machine offers plenty of power and an excellent value-for-money ratio.
The ZA10 comes as standard with a reliable, low-consumption KOOP KD192FB engine, with the option to upgrade to a Kubota Z428 Euro V engine for those who require it. Combined with quality hydraulic components, it delivers dependable performance. The mini excavator's controllability is ensured by a simple lever system that guarantees a high degree of precision.
The machine offers plenty of power and an excellent value-for-money ratio.
Starting at
114 000 Kč
137 940 Kč VAT included
🛡️
Extend your warranty — 2 years or 2000 hours for only + 5 500 Kč
FACTORY OPTIONS
 |
Hydraulic Thumb | + 12 000 Kč |
 |
Kubota 482 engine | + 31 000 Kč |
AVAILABLE ACCESSORIES

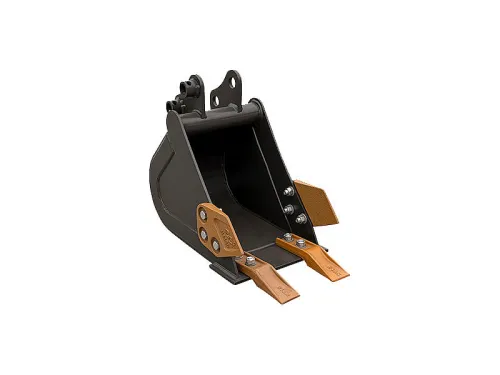

260 mm Bucket with teeth

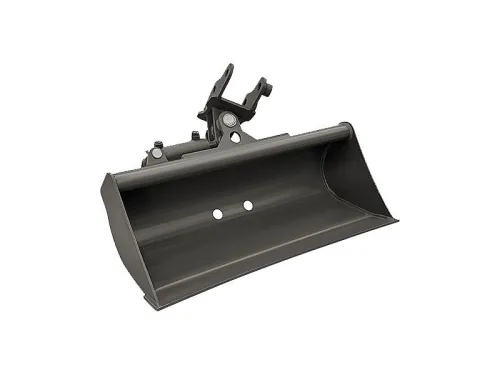

800 mm Hydraulic Tilt Bucket

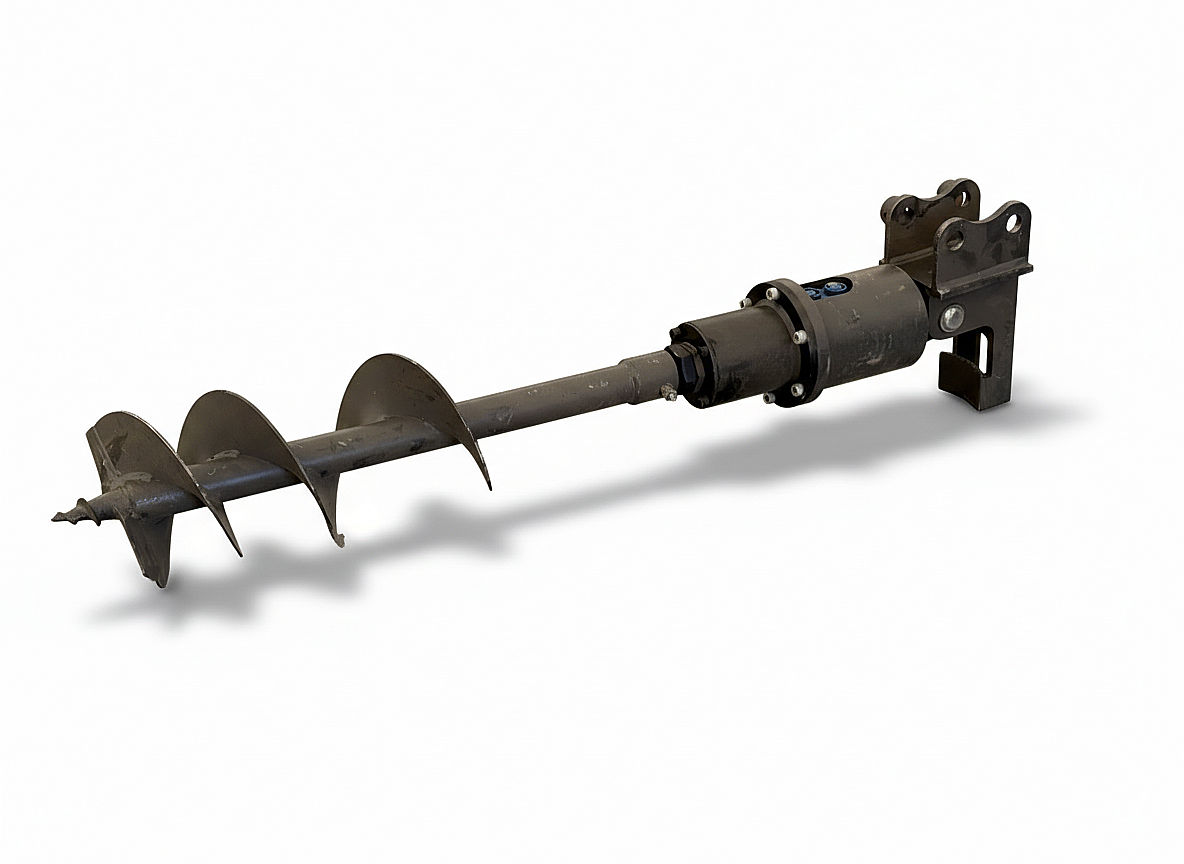

Hydraulic Auger 200 mm

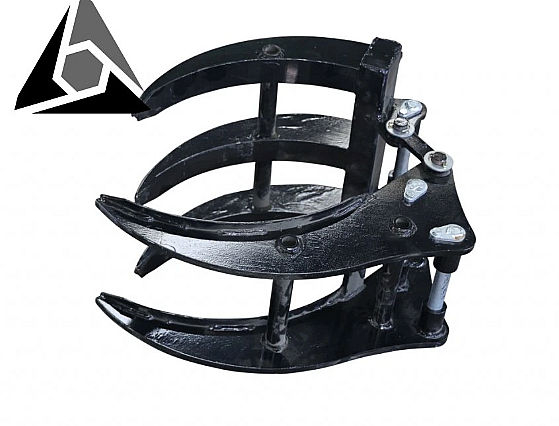

grapple

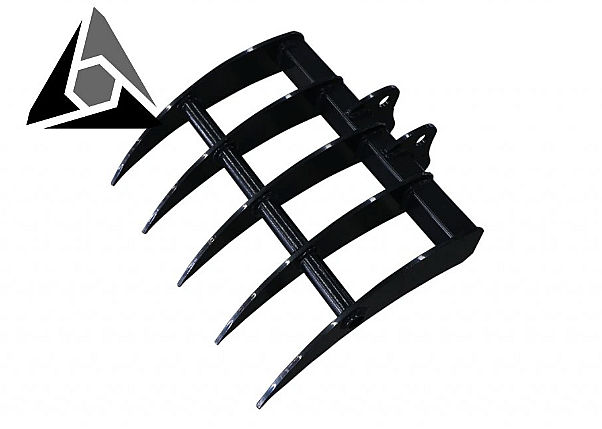

rake

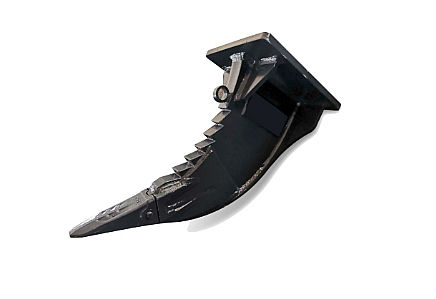

ripper

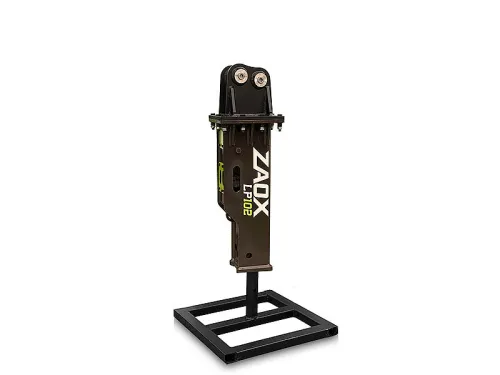

LP102

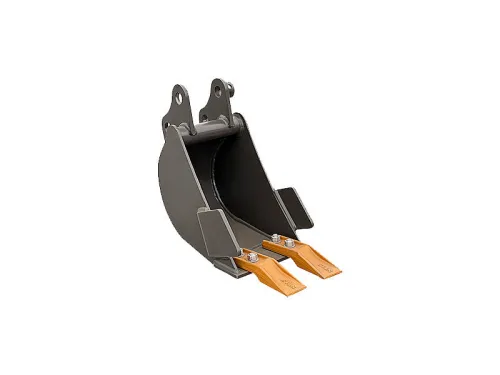

200 mm Bucket with Teeth

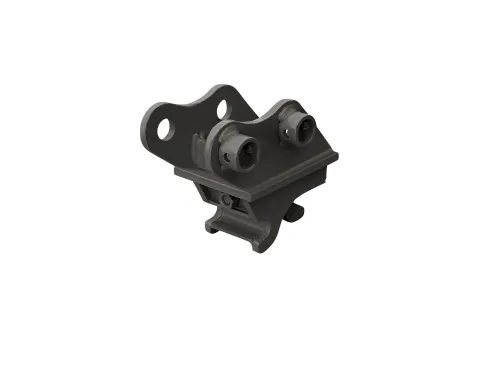

Mechanical quick hitch
DETAILED SPECIFICATION
| Standard Bucket Capacity/Length (?/mm) | 0.023/380 |
| Swing Speed (rmp) | 0-13 |
| Gradeability (°) | 30 |
| Max. Bucket Digging Force (KN) | 7.2 |
| Max. Arm Digging Force (KN) | 4.6 |
| Engine Model | KUBOTA Z482 |
| Power/Revolution speed (Kw(HP)/rpm) | 7(9.3)/3000 |
| System Pressure (MPa) | 16 |
| Fuel Tank Capacity (L) | 4 |
| Hydraulic Circuit Capacity (L) | 10 |
| Cooling Circuit Capacity (L) | 3 |
| Engine Oil Capacity (L) | 1.8 |
| Bucket capacity (m³) | 0.023 |

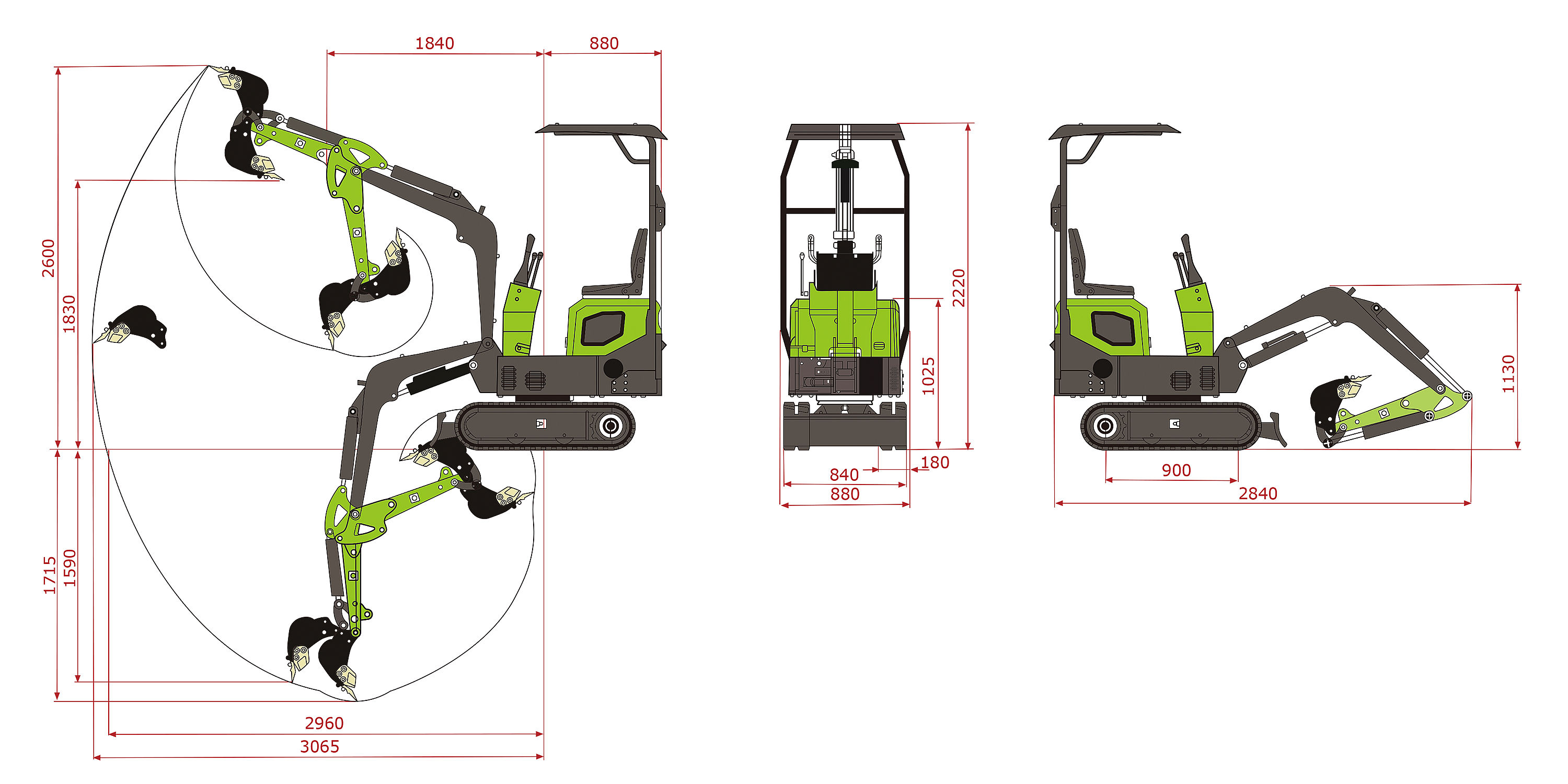

| Max. Digging Height (mm) | 2600 |
| Max. Dumping Height (mm) | 1380 |
| Max. Digging Depth (mm) | 1715 |
| Max. Vertical Digging Depth (mm) | 1590 |
| Max. Digging Radius (mm) | 3065 |
| Max. Swing Radius (mm) | 1480 |
| Total Length (mm) | 2840 |
| Total Width (mm) | 880 |
| Machine Weight (with all fluids) (kg) | 870 |
| Canopy Height (mm) | 2220 |
| Axle Base (mm) | 900 |
| Minimum Ground Clearance (mm) | 132 |
| Wheel (track) Distance (mm) | 660 |
| Tail Swing Radius (mm) | 800 |
 |
2 years or 2000 hours | + 5 500 Kč |
