ZA13A

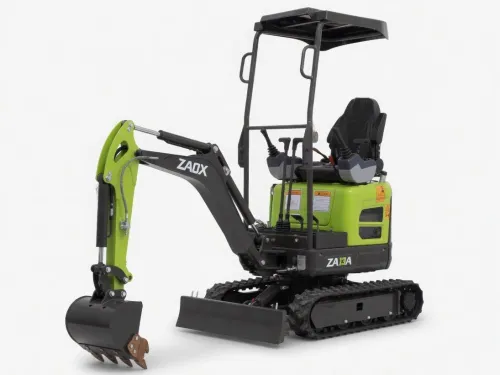

MINI EXCAVATOR ZA13A
WEIGHT: 1 275 KG
KUBOTA D722 ENGINE
380MM BUCKET WITH TEETH
SWING BOOM
CANOPY
RUBBER TRUCK
H/L SPEED
RETRACTABLE RUBBER TRACKS
AUXILIARY HYDRAULIC PIPELINE
ONE YEAR WARRANTY

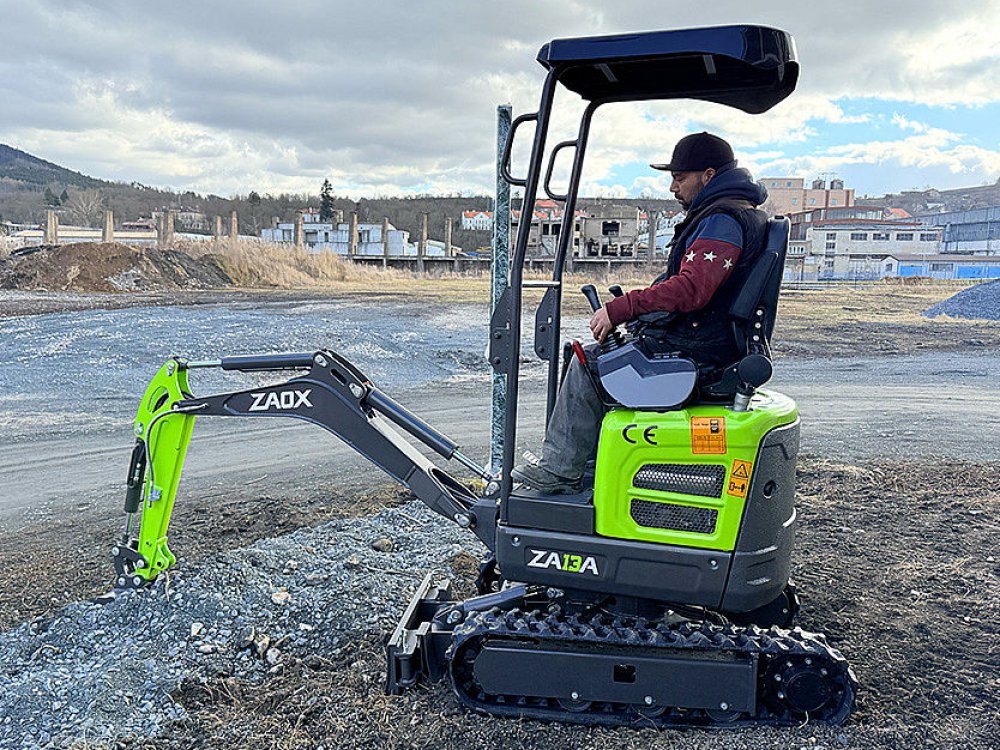

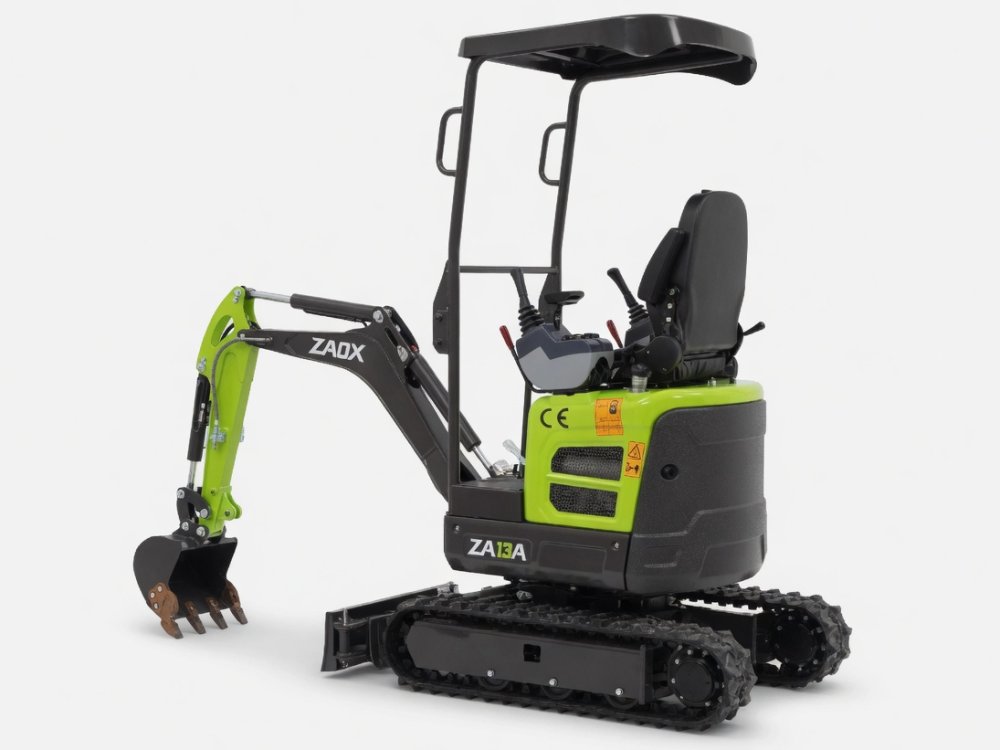

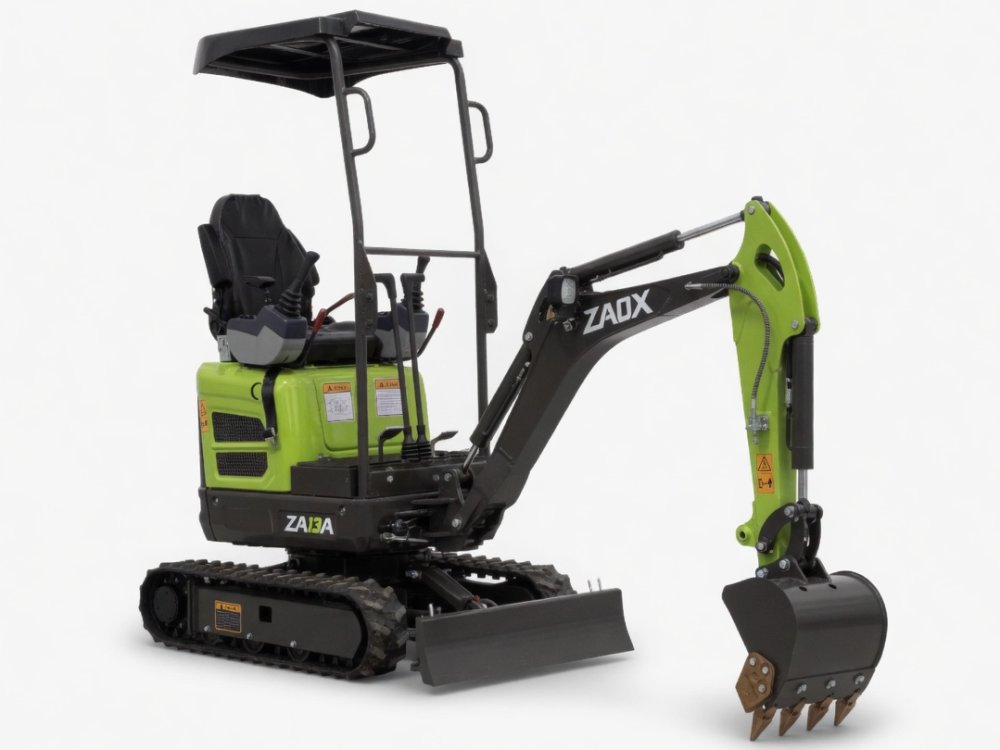

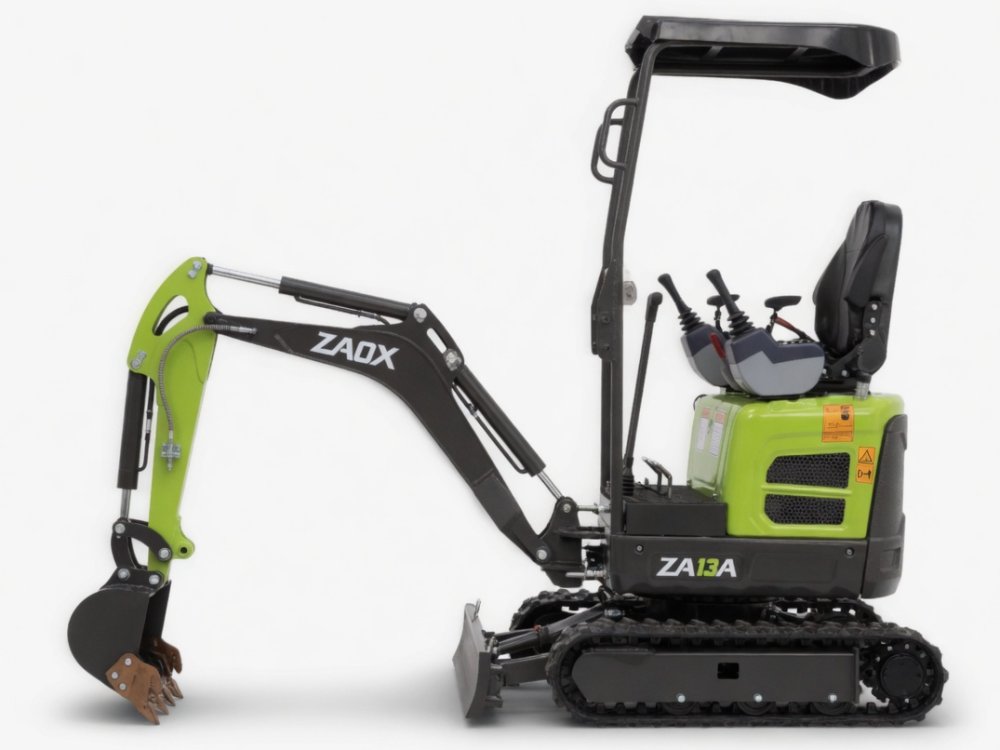

The ZA13A is an ultra compact hydraulic mini excavator with an operative weight of 1225 kg (around 1.2 tons). It is a no tail machine, with a max Digging Depth over 1,80 mt. The machine comes with a 380 mm Standard Bucket, Retractable Tracks, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard.

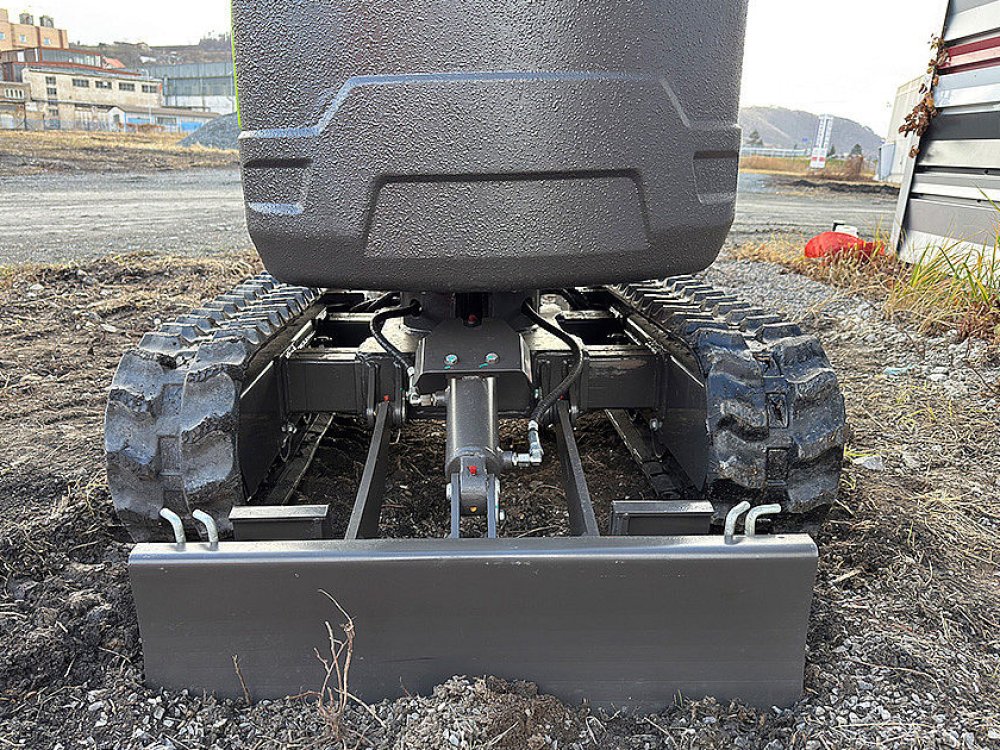

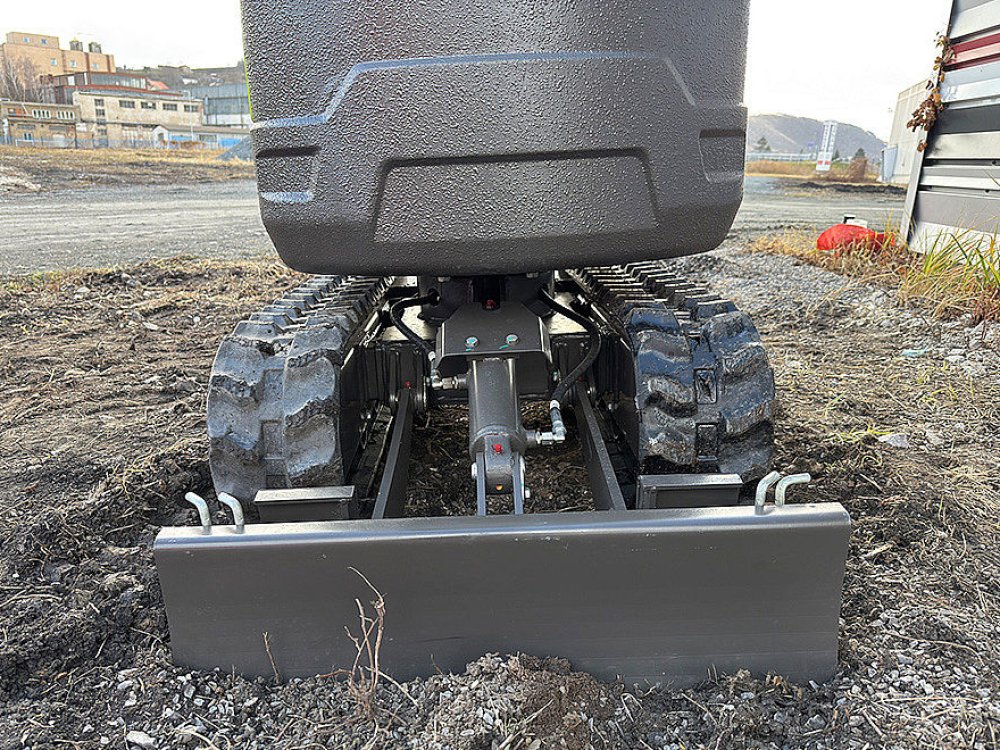

When tracks are retracted, the machine is wide just 75 cm, allowing the possibility to enter narrow spaces, such as doors and cellars. Stability during normal working is excellent extending the tracks to 98 cm.
The ZA13A is powered by a reliable and low fuel consumption Kubota D722 Euro V engine in combination with top notch Hydraulic Components..

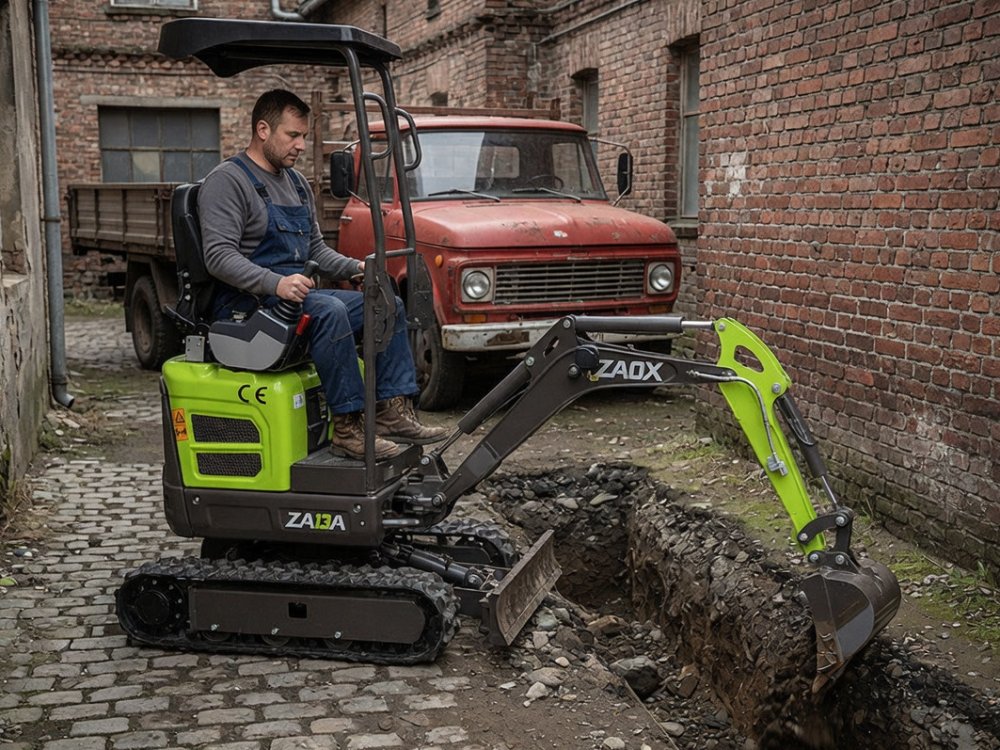

The machine, despite its extremely small size, appears surprisingly simple to control even in moments when maximum caution and precision are required..
When tracks are retracted, the machine is wide just 75 cm, allowing the possibility to enter narrow spaces, such as doors and cellars. Stability during normal working is excellent extending the tracks to 98 cm.
The ZA13A is powered by a reliable and low fuel consumption Kubota D722 Euro V engine in combination with top notch Hydraulic Components..
The machine, despite its extremely small size, appears surprisingly simple to control even in moments when maximum caution and precision are required..
Starting at
280 000 Kč
338 800 Kč VAT included
🛡️
Extend your warranty — 2 years or 2000 hours for only + 9 000 Kč
FACTORY OPTIONS
 |
Hydraulic Thumb | + 12 000 Kč |
 |
Quick Hitch Aux Pipeline | + 8 000 Kč |
AVAILABLE ACCESSORIES
Mechanical quick hitch
Hydraulic Quick Hitch
200 mm Bucket with Teeth
260 mm Bucket with teeth
800 mm Clean Bucket
800 mm Hydraulic Tilt Bucket
Hydraulic Auger 200 mm
grapple
rake
ripper
DETAILED SPECIFICATION
| Standard Bucket Capacity/Length (?/mm) | 0.025/380 |
| Swing Speed (rmp) | 0-12 |
| Gradeability (°) | 30 |
| Max. Bucket Digging Force (KN) | 9 |
| Max. Arm Digging Force (KN) | 5.5 |
| Engine Model | KUBOTA D722 |
| Power/Revolution speed (Kw(HP)/rpm) | 10.2[13.8]/2500 |
| System Pressure (MPa) | 17 |
| Fuel Tank Capacity (L) | 10 |
| Hydraulic Circuit Capacity (L) | 21 |
| Cooling Circuit Capacity (L) | 4 |
| Engine Oil Capacity (L) | 2.5 |
| Bucket capacity (m³) | 0.023 |
| Max. Digging Height (mm) | 3107 |
| Max. Dumping Height (mm) | 2172 |
| Max. Digging Depth (mm) | 1835 |
| Max. Vertical Digging Depth (mm) | 1709 |
| Max. Digging Radius (mm) | 3422 |
| Max. Swing Radius (mm) | 1389 |
| MAx. Dozer Blade Lifting Distance (mm) | XXX |
| MAx. Dozer Blade Cutting Distance (mm) | XXX |
| Total Length (mm) | 3032 |
| Total Width (mm) | 760/980 |
| Machine Weight (with all fluids) (kg) | 1200 |
| Canopy Height (mm) | 2270 |
| Axle Base (mm) | 1010 |
| Minimum Ground Clearance (mm) | 125 |
| Wheel (track) Distance (mm) | 580/760 |
| Tail Swing Radius (mm) | 550 |
| 2 years or 2000 hours | + 9 000 Kč | |
 |
3 years or 3000 hours | + 15 000 Kč |
