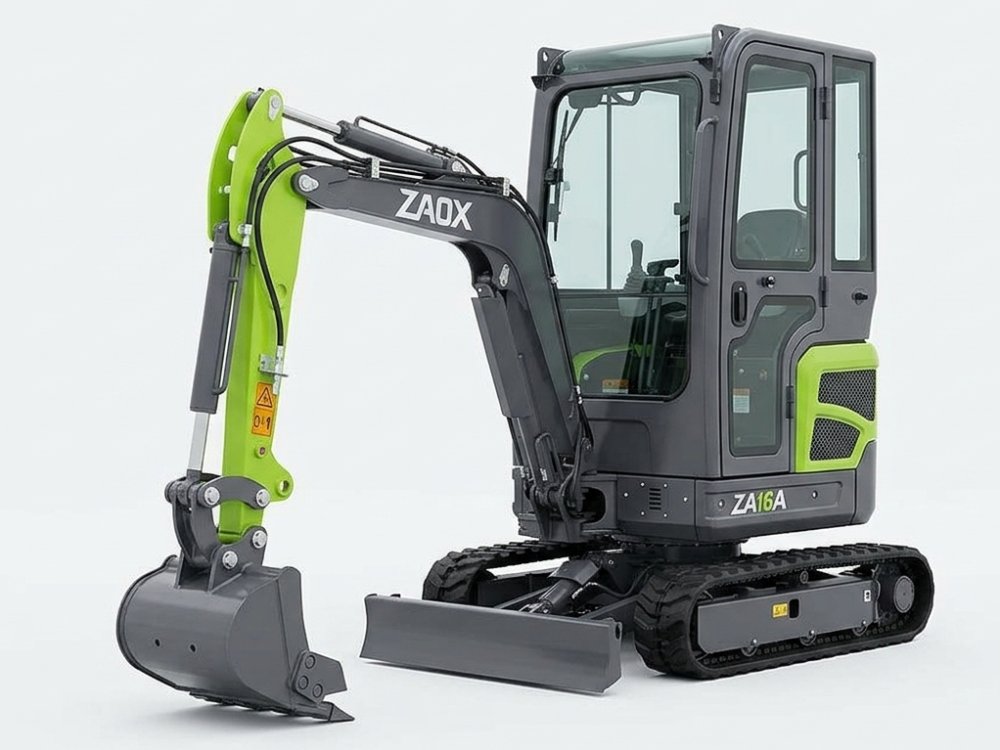

ZA16A

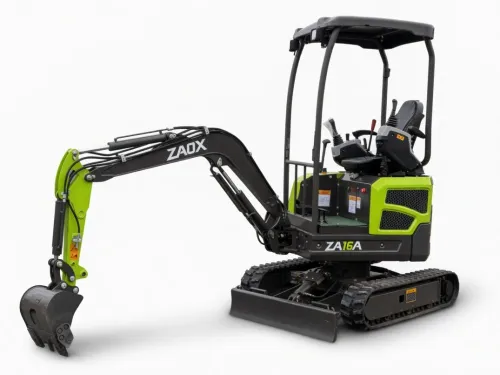

MINI EXCAVATOR ZA16A
WEIGHT: 1 605 KG
ENGINE MODEL: KUBOTA D722
MAX. DIGGING DEPTH: 1953 mm
KUBOTA D722 ENGINE
380MM BUCKET WITH TEETH
SWING BOOM

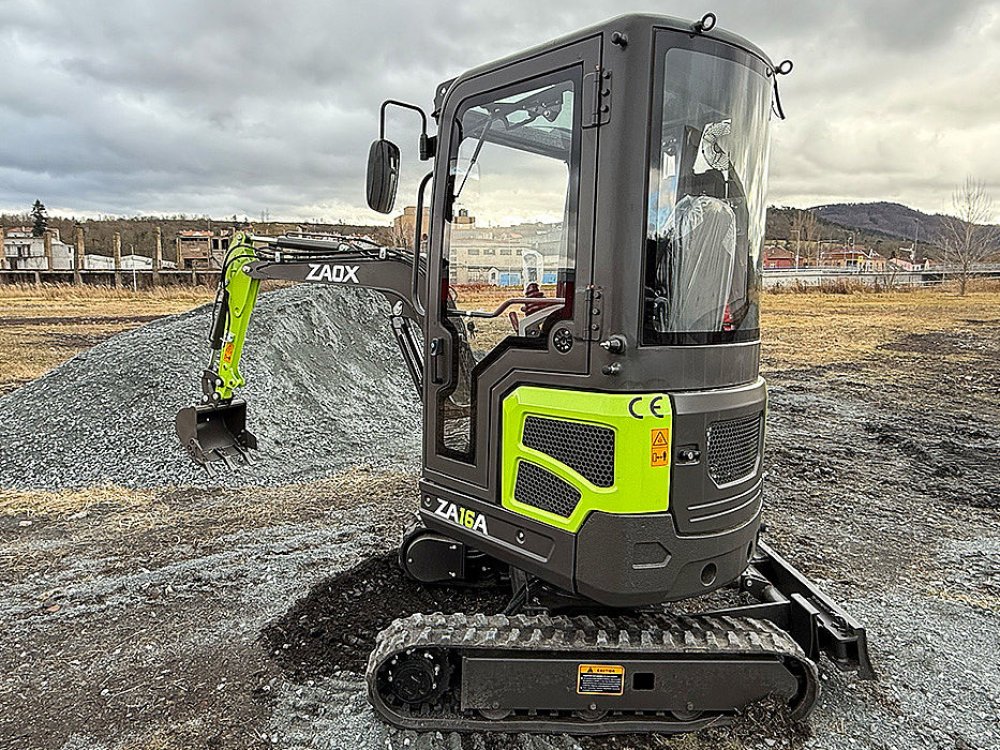

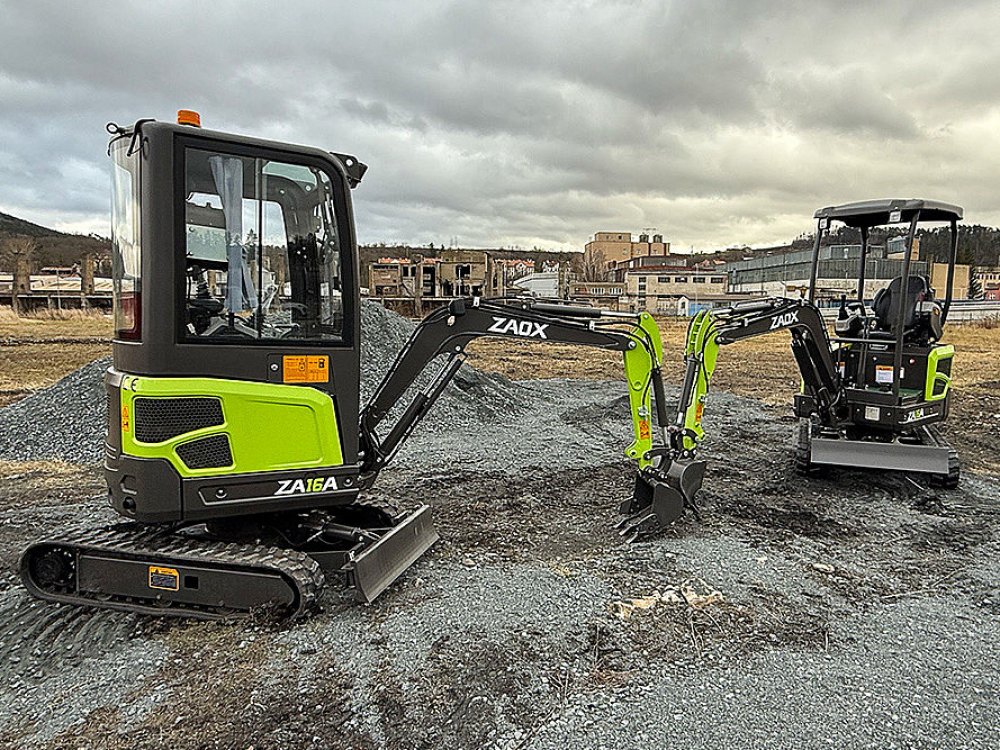

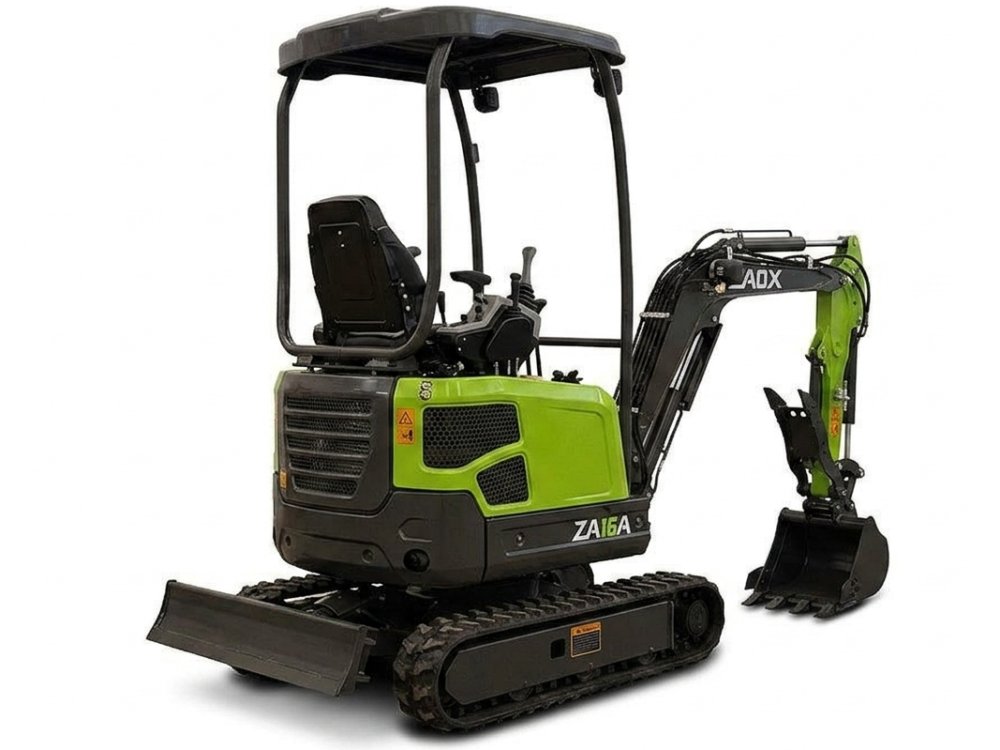

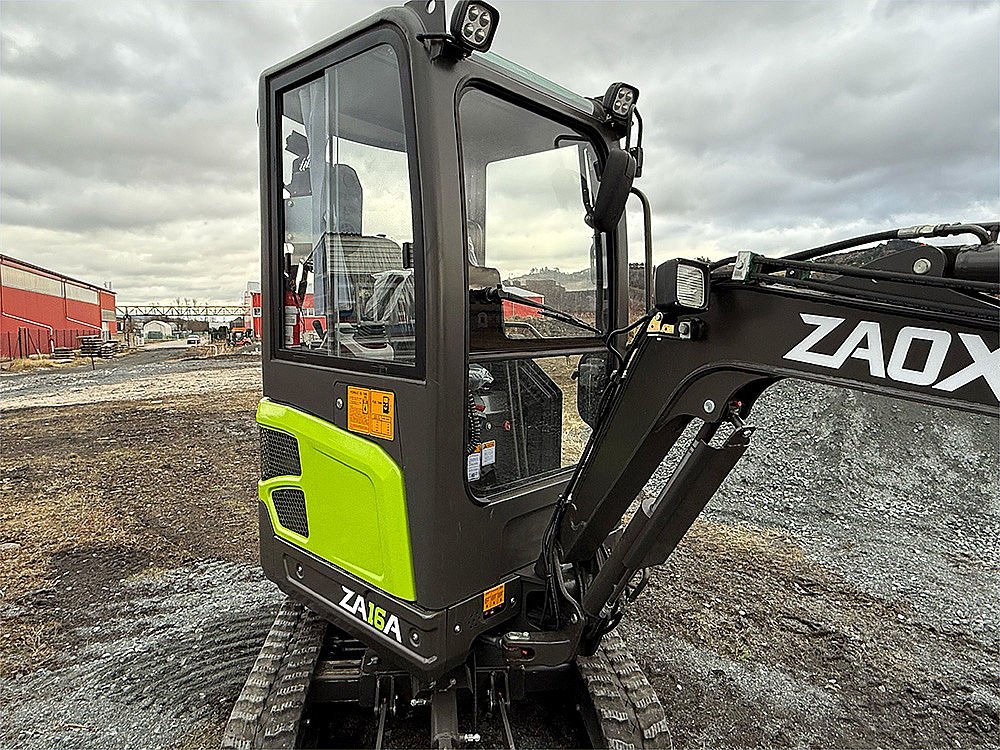

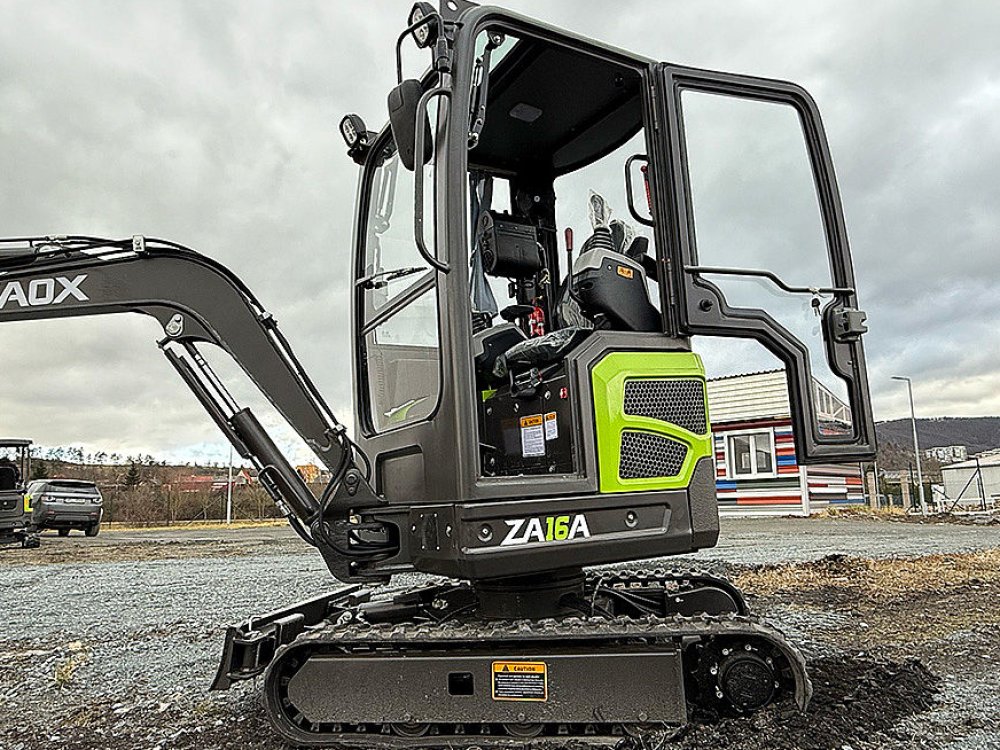

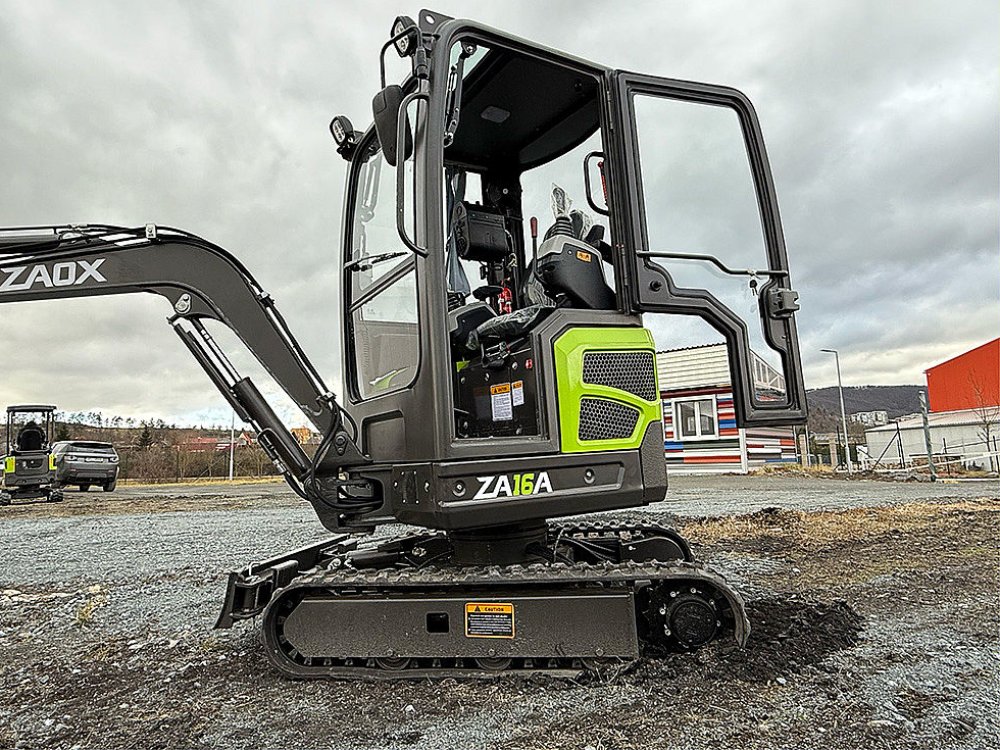

CANOPY OR HEATED CAB
RUBBER TRUCK
H/L SPEED
AUXILIARY HYDRAULIC PIPELINE

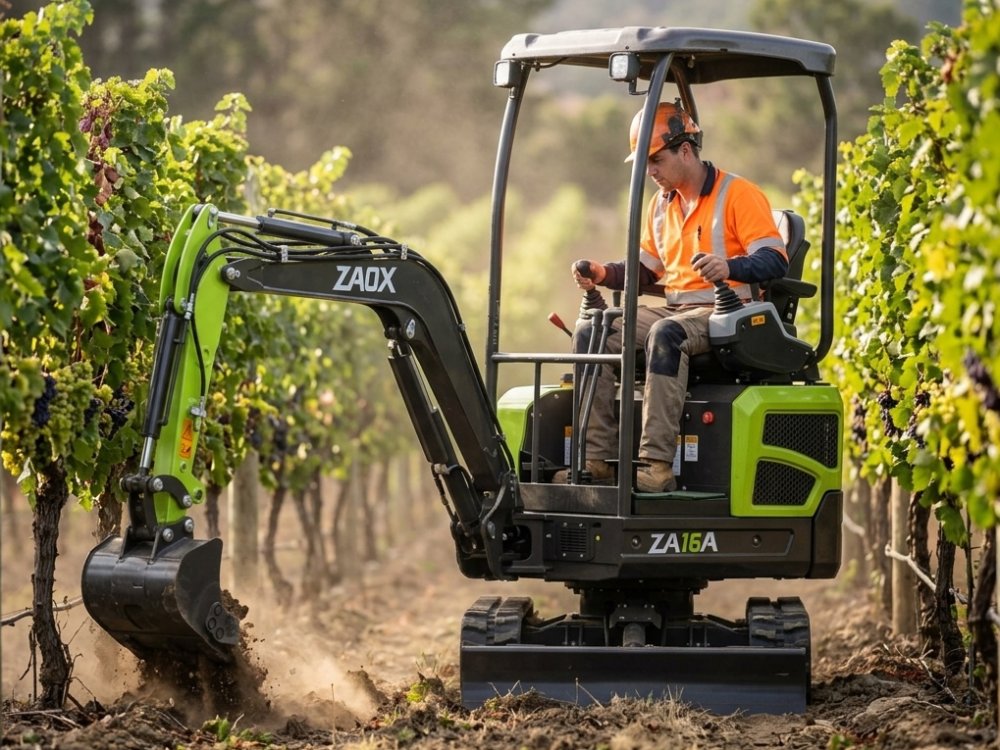

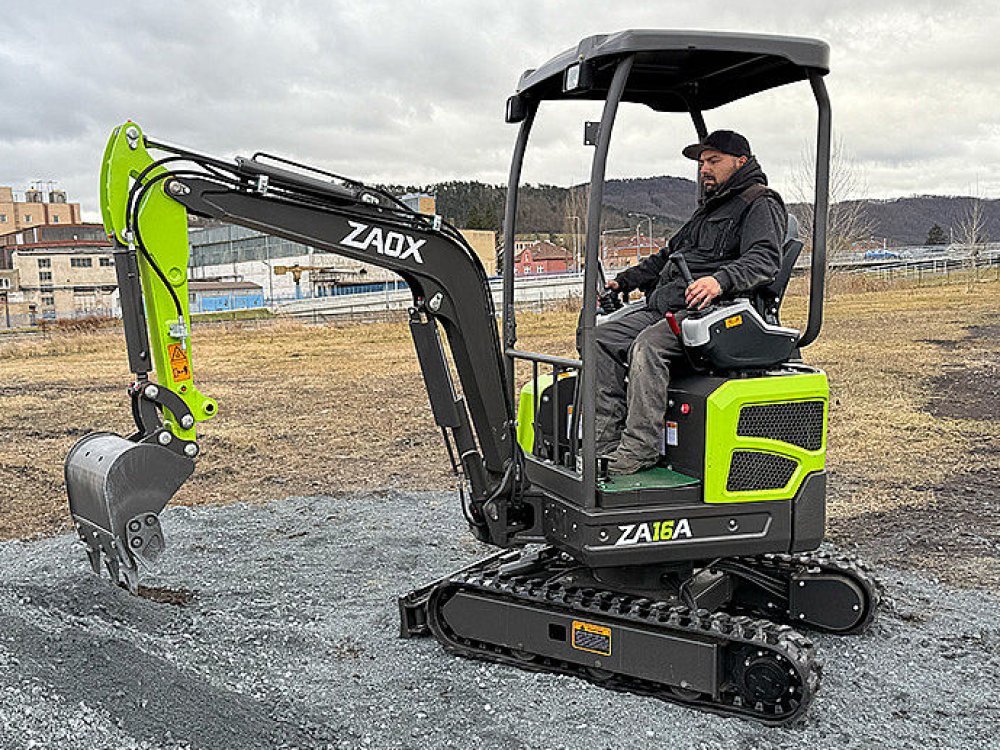

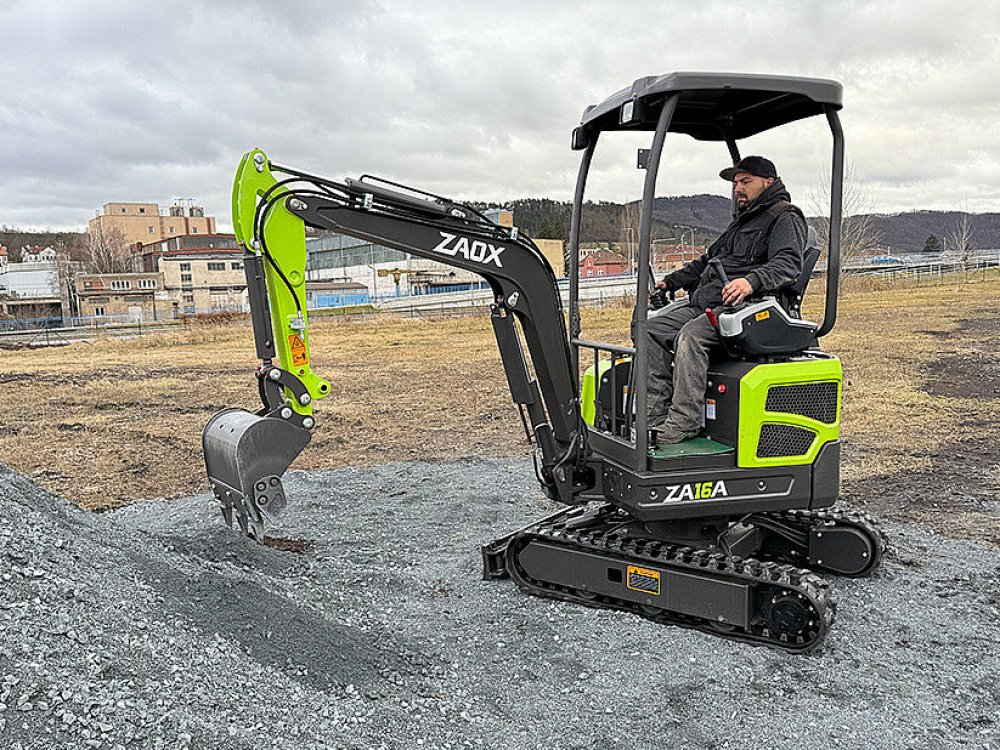

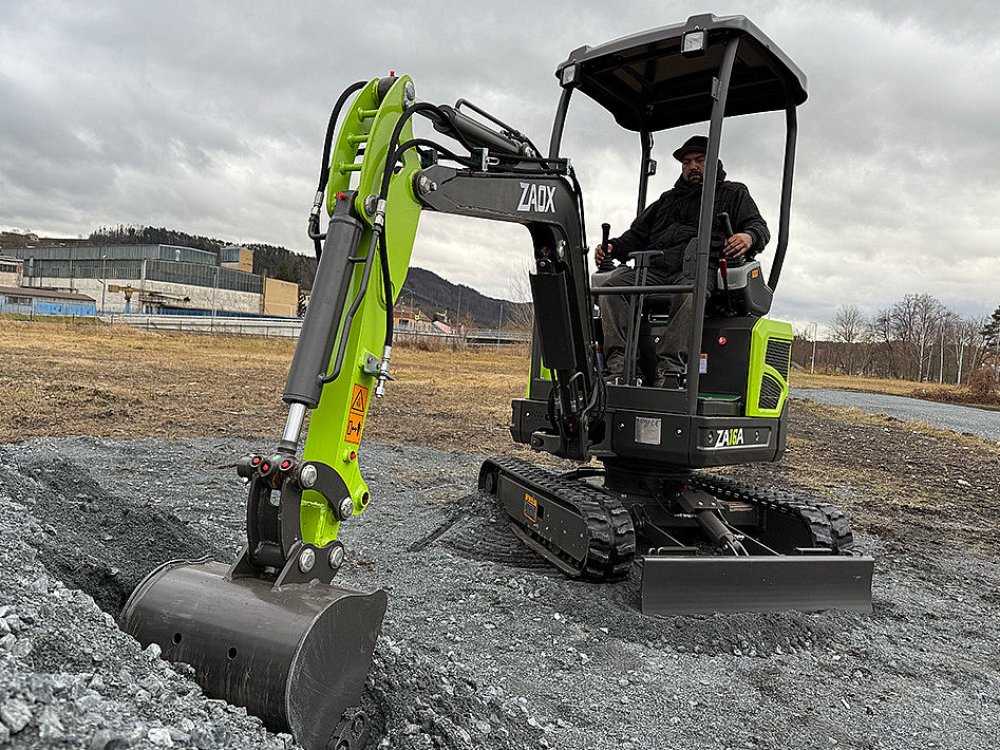

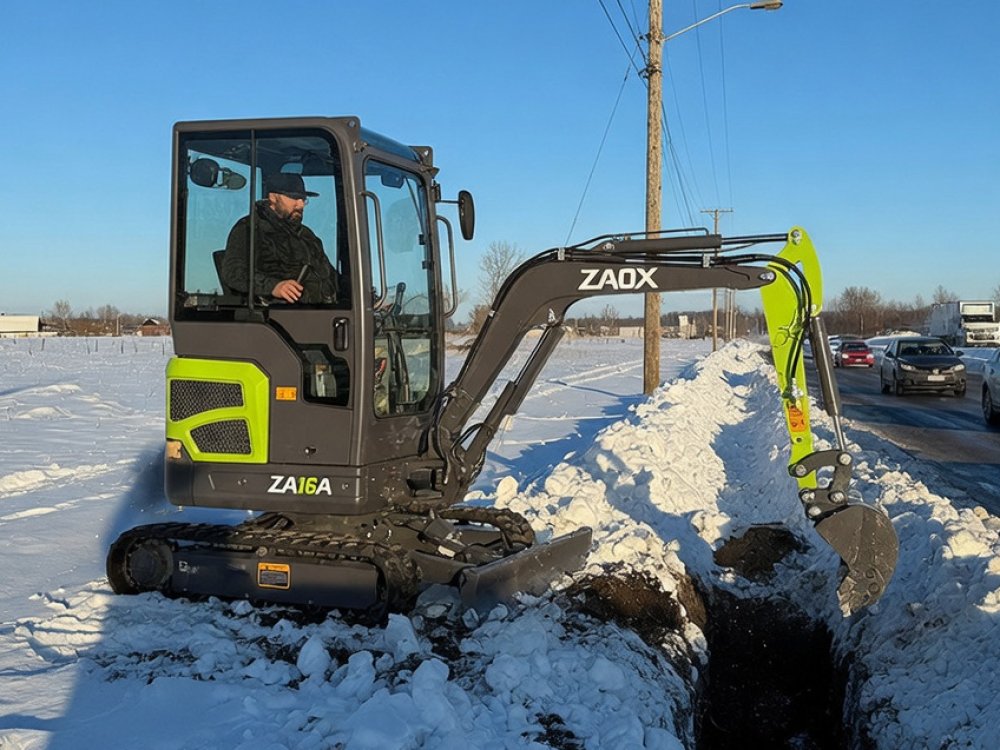

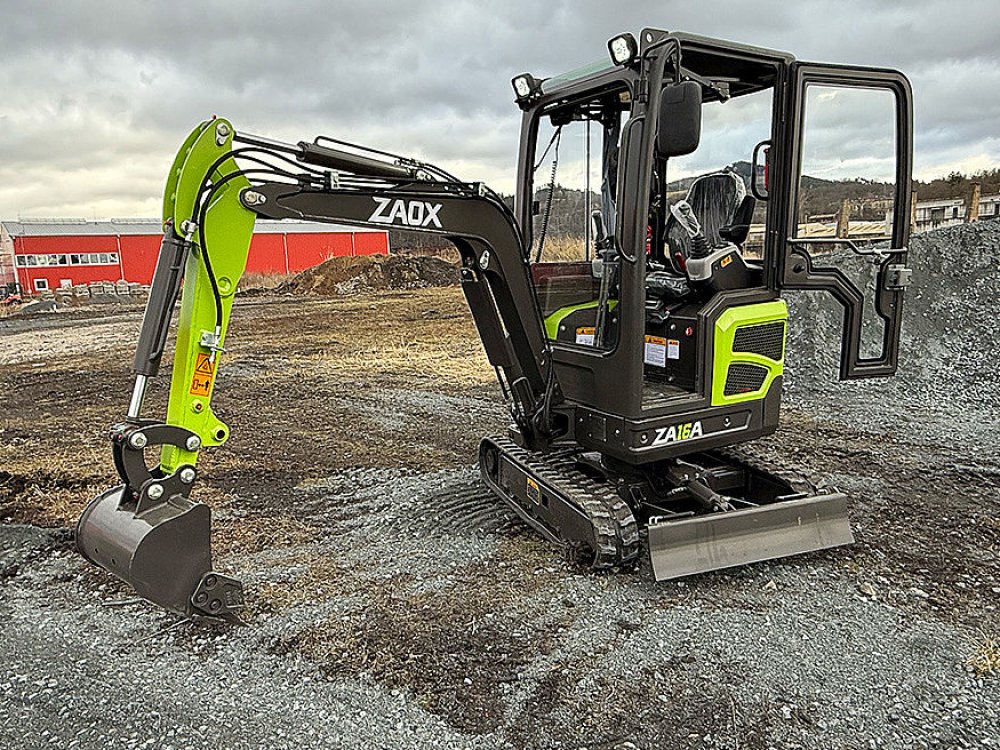

The ZA16A is an excellent hydraulic mini excavator with an operative weight of 1605 kg (around 1.6 tons). It is a no tail machine, with a max Digging Depth over 2 mt. The machine comes with a Standard Bucket large 38 cm, Retractable Tracks, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard.
The ZA16A is powered by a reliable and low fuel consumption Kubota D722 Euro V engine in combination with top notch Hydraulic Componentsfor a precise control of the execution elements, good controllability and high working efficiency.
The machine has plenty of power and an enviable quality/price ratio.
The ZA16A is powered by a reliable and low fuel consumption Kubota D722 Euro V engine in combination with top notch Hydraulic Componentsfor a precise control of the execution elements, good controllability and high working efficiency.
The machine has plenty of power and an enviable quality/price ratio.
Starting at
292 000 Kč
353 320 Kč VAT included
🛡️
Extend your warranty — 2 years or 2000 hours for only + 10 000 Kč
FACTORY OPTIONS
 |

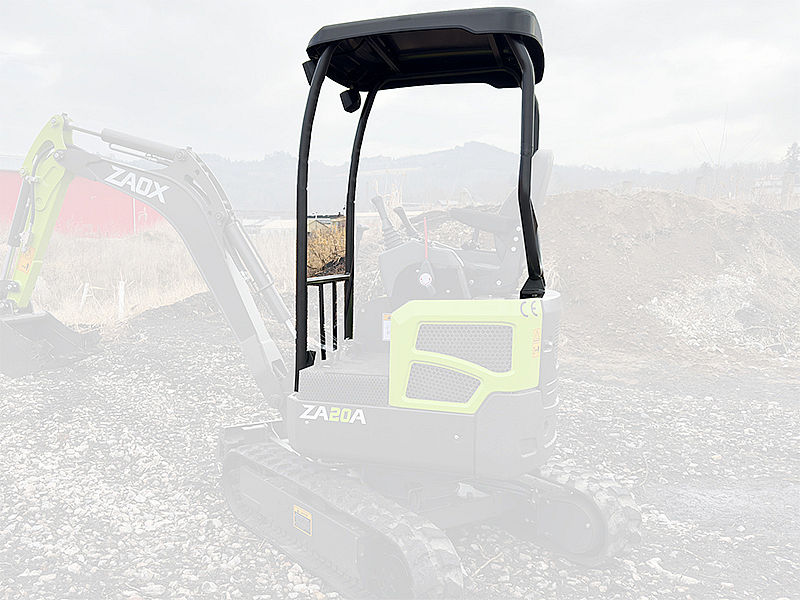

Canopy | — |
 |

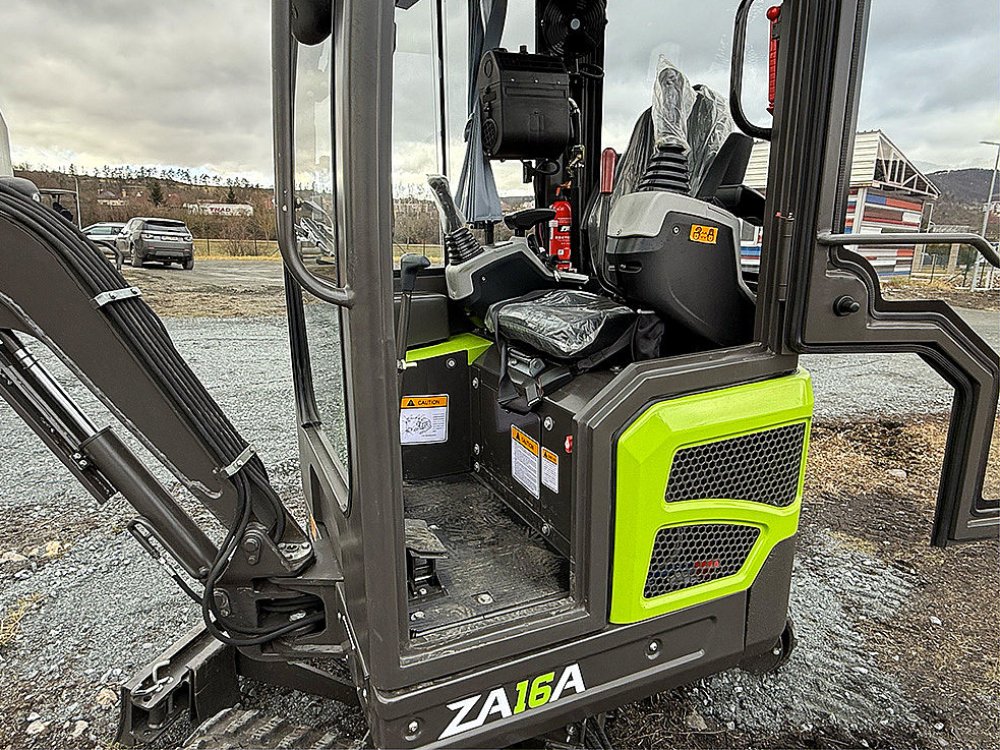

Heated Cabin | + 22 500 Kč |
 |
Hydraulic Thumb | + 16 500 Kč |
 |
Quick Hitch Aux Pipeline | + 6 500 Kč |
 |
Power Control | + 7 500 Kč |
 |
Plunger Pump with LS system | + 18 000 Kč |
AVAILABLE ACCESSORIES
Complete cabin with heating for ZA20A & ZA20B
Hydraulic Quick Hitch
Mechanical quick hitch
200 mm Bucket with Teeth
260 mm Bucket with teeth
800 mm Clean Bucket
800 mm Hydraulic Tilt Bucket
Hydraulic Auger 200 mm
grapple
rake
ripper
LP102
Rotary Screening Bucket ZM1225
DETAILED SPECIFICATION
| Standard Bucket Capacity/Length (?/mm) | 0.025/380 |
| Swing Speed (rmp) | 1-13 |
| Gradeability (°) | 30 |
| Max. Bucket Digging Force (KN) | 9 |
| Max. Arm Digging Force (KN) | 5.5 |
| Engine Model | KUBOTA D722 |
| Power/Revolution speed (Kw(HP)/rpm) | 10.2[13.8]/2500 |
| System Pressure (MPa) | 17 |
| Fuel Tank Capacity (L) | 14.5 |
| Hydraulic Circuit Capacity (L) | 21 |
| Cooling Circuit Capacity (L) | 5 |
| Engine Oil Capacity (L) | 2.5 |
| Bucket capacity (m³) | 0.025 |
| Max. Digging Height (mm) | 2961 |
| Max. Dumping Height (mm) | 2083 |
| Max. Digging Depth (mm) | 1953 |
| Max. Vertical Digging Depth (mm) | 1859 |
| Max. Digging Radius (mm) | 3519 |
| Max. Swing Radius (mm) | - |
| MAx. Dozer Blade Lifting Distance (mm) | 224 |
| MAx. Dozer Blade Cutting Distance (mm) | 237 |
| Total Length (mm) | 3335 |
| Total Width (mm) | 990/1300 |
| Track Width (mm) | 200 |
| Machine Weight (with all fluids) (kg) | 1530 |
| Canopy Height (mm) | 2270 |
| Axle Base (mm) | 1215 |
| Minimum Ground Clearance (mm) | 153 |
| Wheel (track) Distance (mm) | 790 |
| Tail Swing Radius (mm) | 655 |
 |
2 years or 2000 hours | + 10 000 Kč |
|
|
3 years or 3000 hours | + 16 500 Kč |
