ZA20A

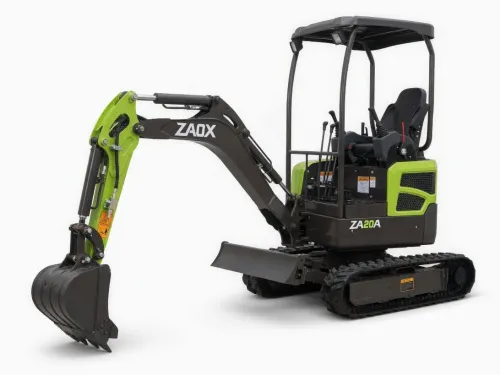

MINI EXCAVATOR ZA20A
WEIGHT: 1 975 KG
KUBOTA D1105 ENGINE
435MM BUCKET WITH TEETH

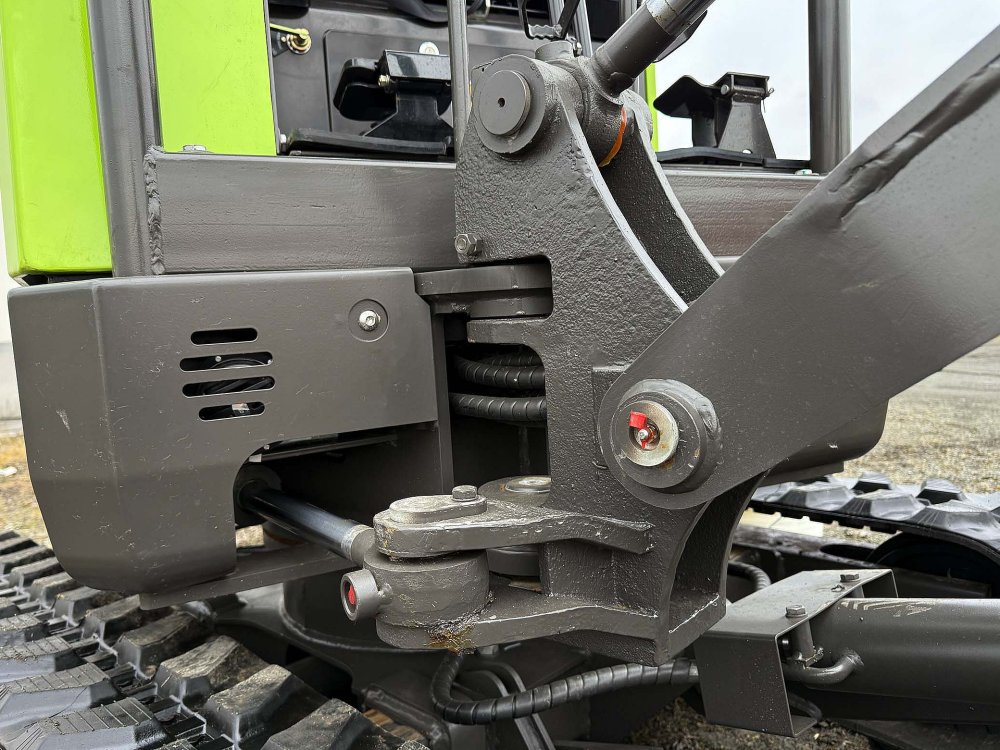

SWING BOOM
CANOPY
RUBBER TRUCK
H/L SPEED

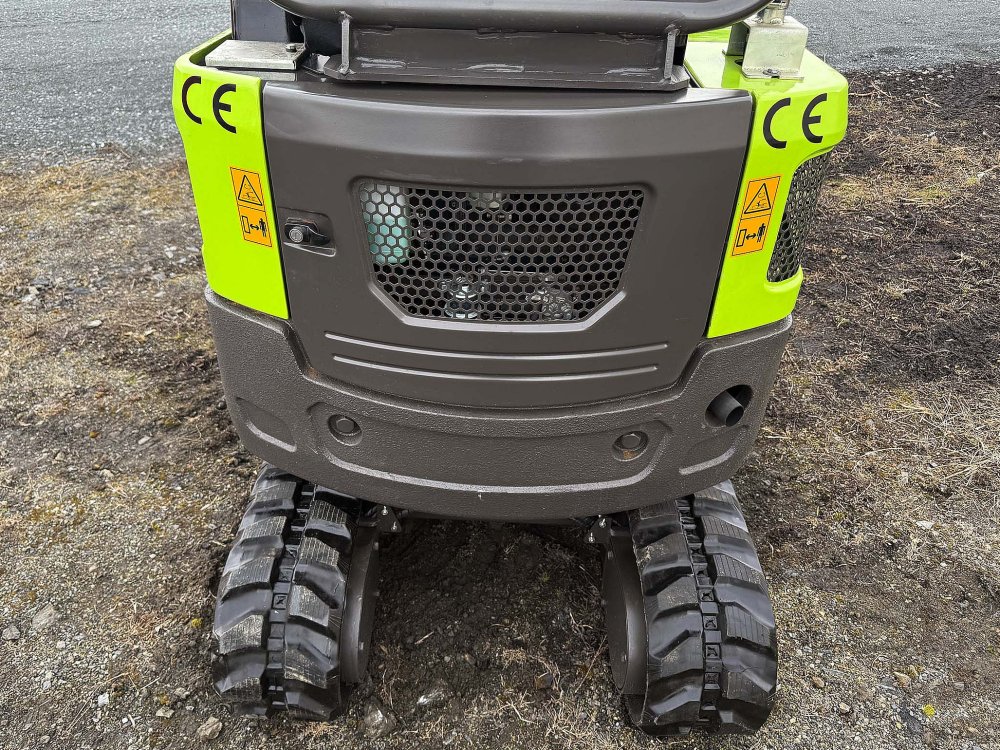

RETRACTABLE RUBBER TRACKS
AUXILIARY HYDRAULIC PIPELINE
ONE YEAR WARRANTY

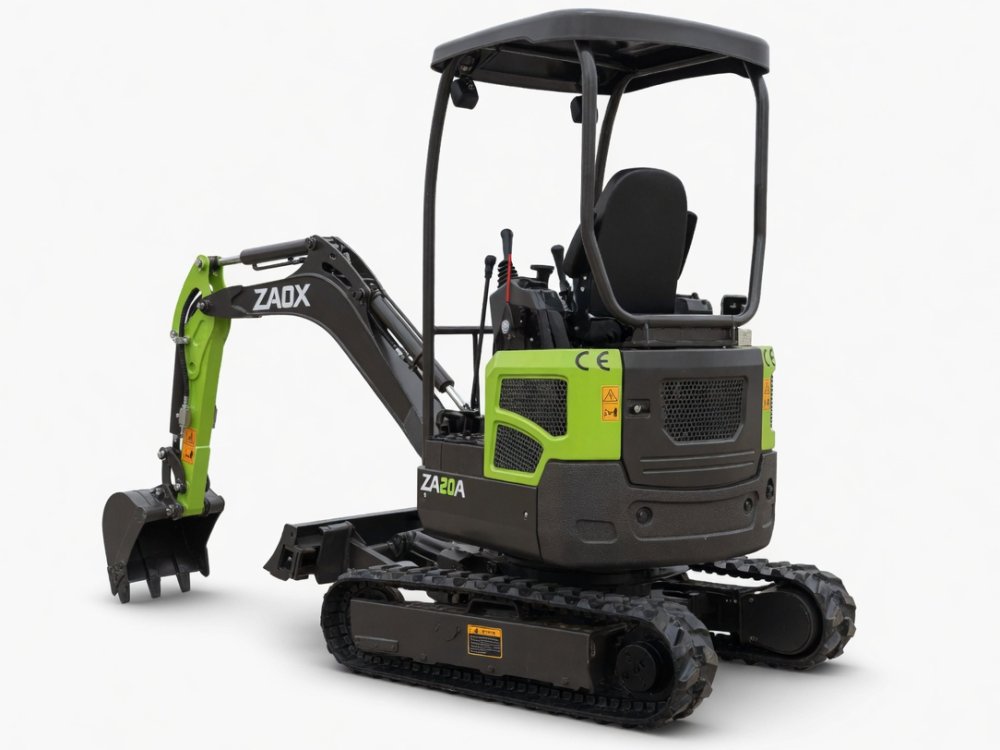

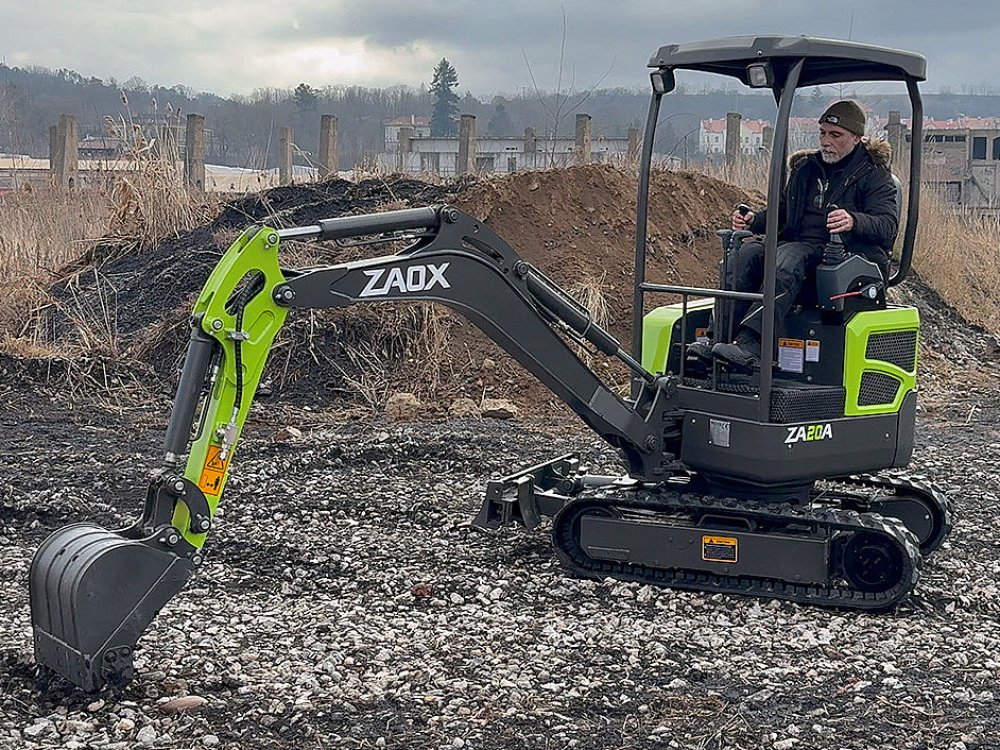

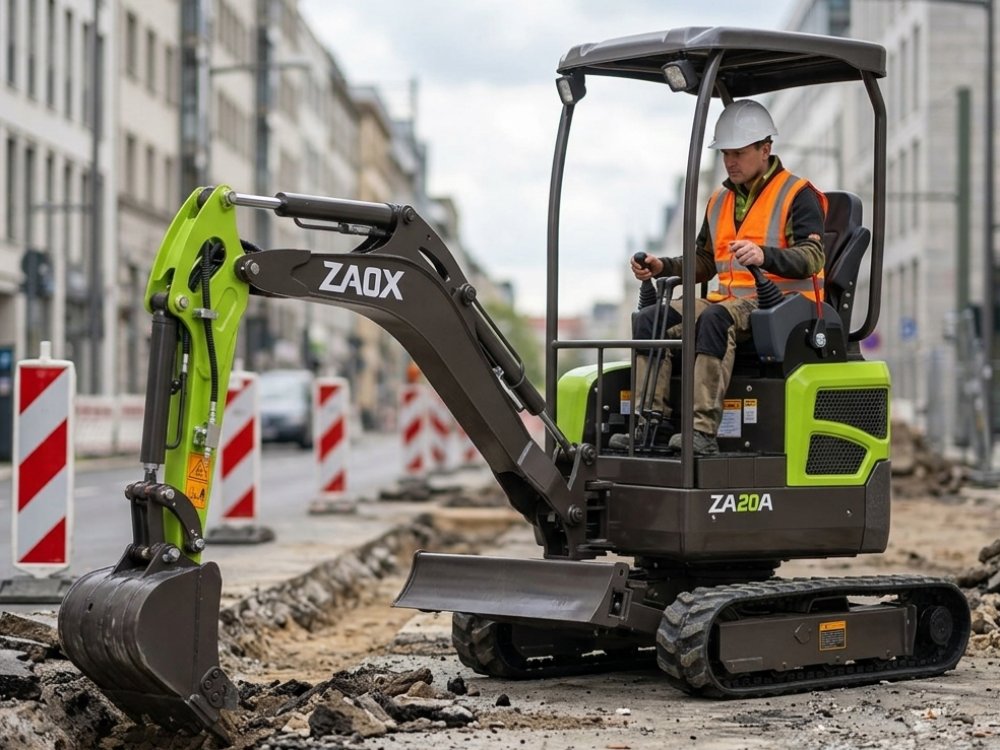

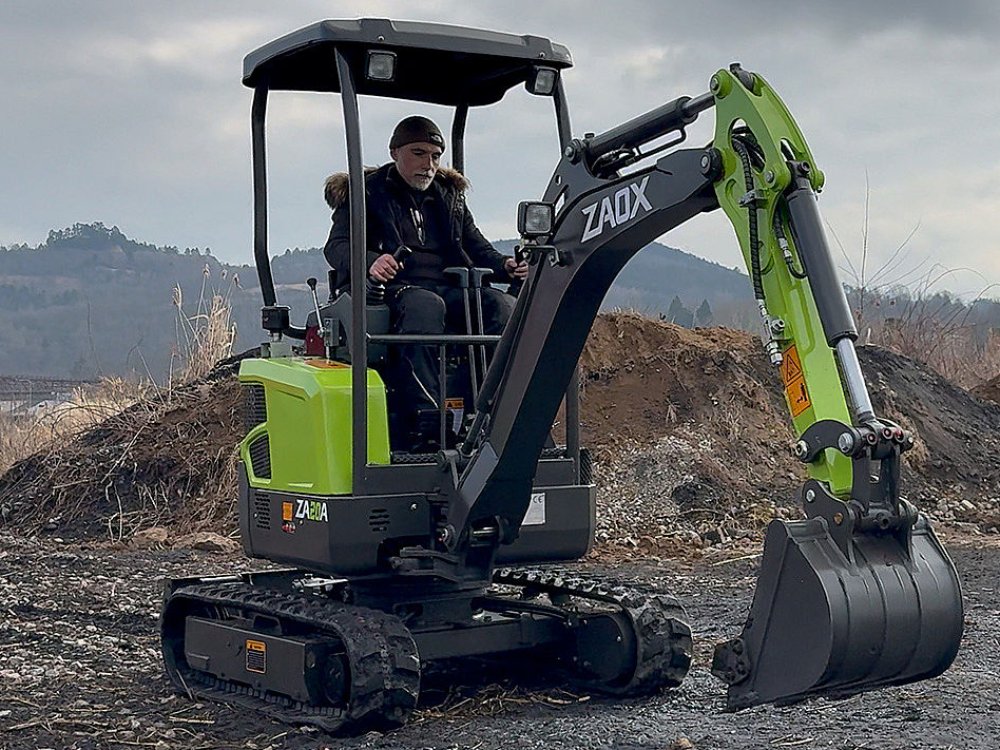

The ZA20A is an excellent hydraulic mini excavator with an operative weight of 1975 kg (around 2 tons). It is a no tail machine, with a max Digging Depth over 2,4 mt. The machine comes with a 435 mm Standard Bucket, Retractable Tracks, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard. This machine is available only with canopy (the machine is so compact, there is no space to install a cab)
The ZA20A is powered by a reliable and low fuel consumption Kubota D1105 Euro V engine in combination with top notch Hydraulic Components for a precise control of the execution elements, good controllability and high working efficiency.
The machine has plenty of power and an enviable quality/price ratio.
The ZA20A is powered by a reliable and low fuel consumption Kubota D1105 Euro V engine in combination with top notch Hydraulic Components for a precise control of the execution elements, good controllability and high working efficiency.
The machine has plenty of power and an enviable quality/price ratio.
Starting at
392 000 Kč
474 320 Kč VAT included
🛡️
Extend your warranty — 2 years or 2000 hours for only + 12 000 Kč
FACTORY OPTIONS
 |
Heated Cabin | + 34 500 Kč |
 |
Hydraulic Thumb | + 14 000 Kč |
 |
Quick Hitch Aux Pipeline | + 6 500 Kč |
 |
Power Control | + 7 500 Kč |
AVAILABLE ACCESSORIES
Complete cabin with heating for ZA20A & ZA20B
Mechanical quick hitch
Hydraulic Quick Hitch
200 mm Bucket with Teeth
260 mm Bucket with teeth
800 mm Clean Bucket
800 mm Tilt Bucket
Hydraulic Auger 200 mm
LP129
Rotary Screening Bucket ZM1225
DETAILED SPECIFICATION
| Standard Bucket Capacity/Length (?/mm) | 0.07/435 |
| Swing Speed (rmp) | 1-9 |
| Gradeability (°) | 35 |
| Max. Bucket Digging Force (KN) | 18 |
| Max. Arm Digging Force (KN) | 11 |
| Engine Model | KUBOTA D1105 |
| Power/Revolution speed (Kw(HP)/rpm) | 14.2[19.4]/2000 |
| Ground pressure (without driver) kPa (kgf/cm²) | 63.79 (0.65) |
| System Pressure (MPa) | 21.5 |
| Fuel Tank Capacity (L) | 17 |
| Hydraulic Circuit Capacity (L) | 30 |
| Cooling Circuit Capacity (L) | 9 |
| Engine Oil Capacity (L) | 4.2 |
| Bucket capacity (m³) | 0.07 |
| Max. Digging Height (mm) | 3570 |
| Max. Dumping Height (mm) | 2440 |
| Max. Digging Depth (mm) | 2400 |
| Max. Vertical Digging Depth (mm) | 2025 |
| Max. Digging Radius (mm) | 4040 |
| Max. Swing Radius (mm) | 1610 |
| MAx. Dozer Blade Lifting Distance (mm) | 240 |
| MAx. Dozer Blade Cutting Distance (mm) | 270 |
| Total Length (mm) | 3555 |
| Total Width (mm) | 990/1300 |
| Track Width (mm) | 230 |
| Machine Weight (with all fluids) (kg) | 1900 |
| Canopy Height (mm) | 2290 |
| Axle Base (mm) | 1230 |
| Minimum Ground Clearance (mm) | 150 |
| Wheel (track) Distance (mm) | 760 |
| Tail Swing Radius (mm) | 650 |
 |
2 years or 2000 hours | + 12 000 Kč |
|
|
3 years or 3000 hours | + 20 000 Kč |
