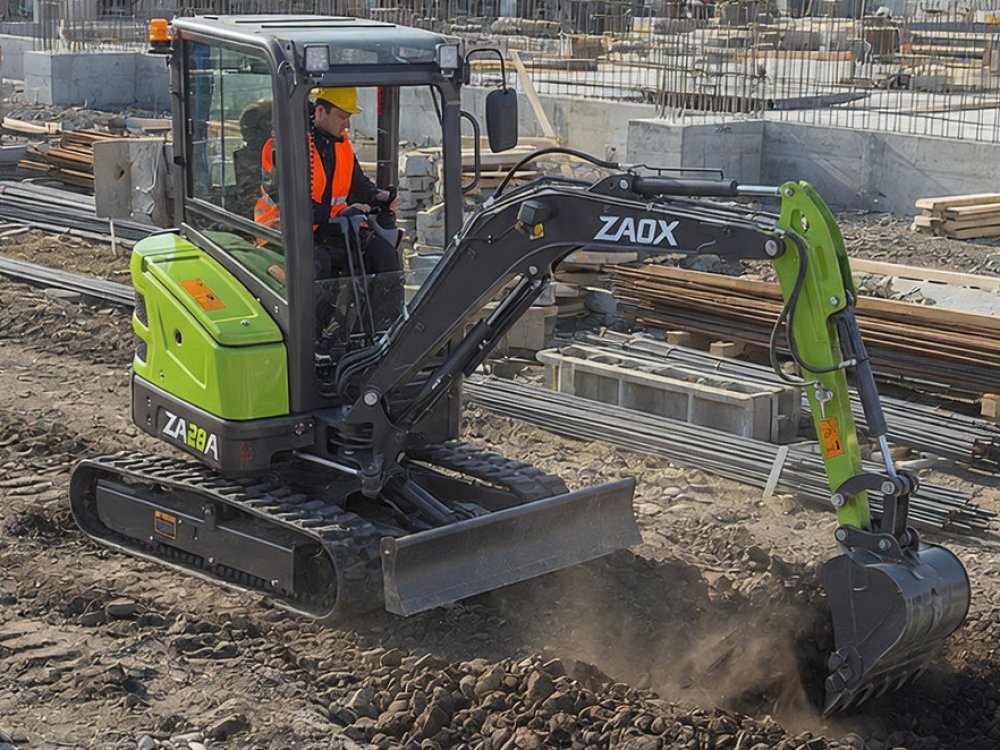

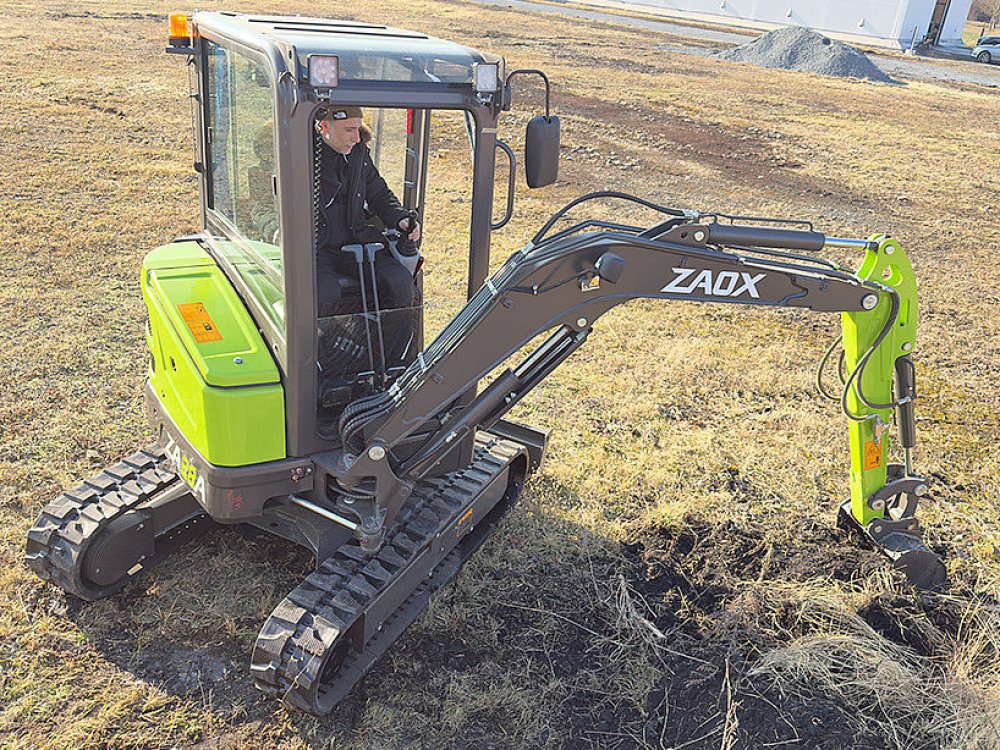

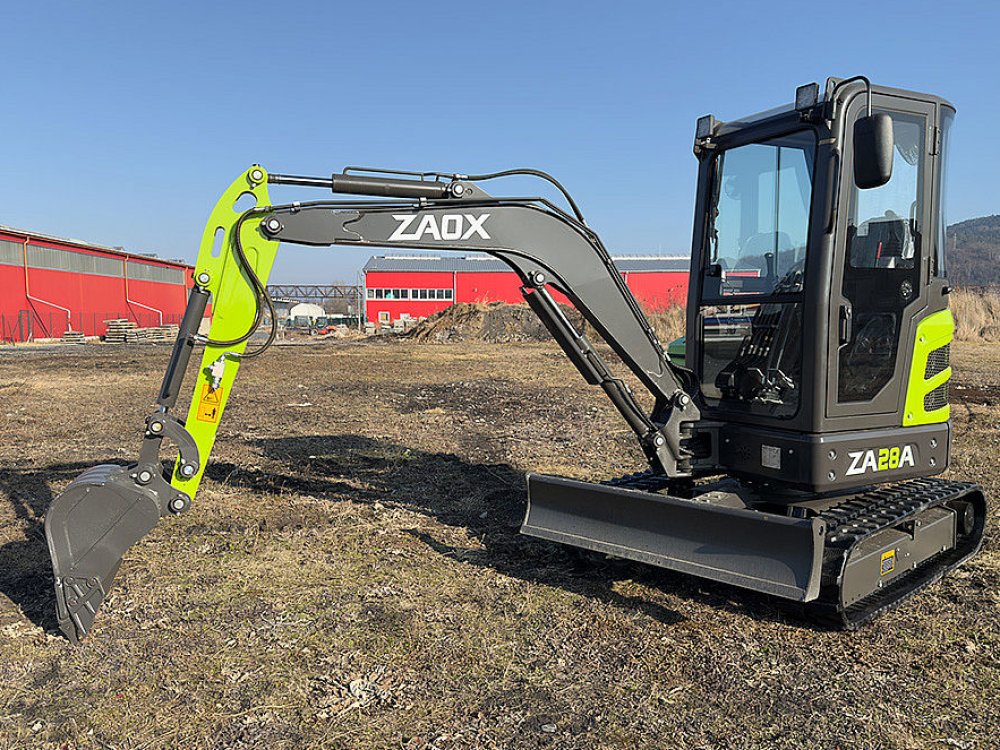

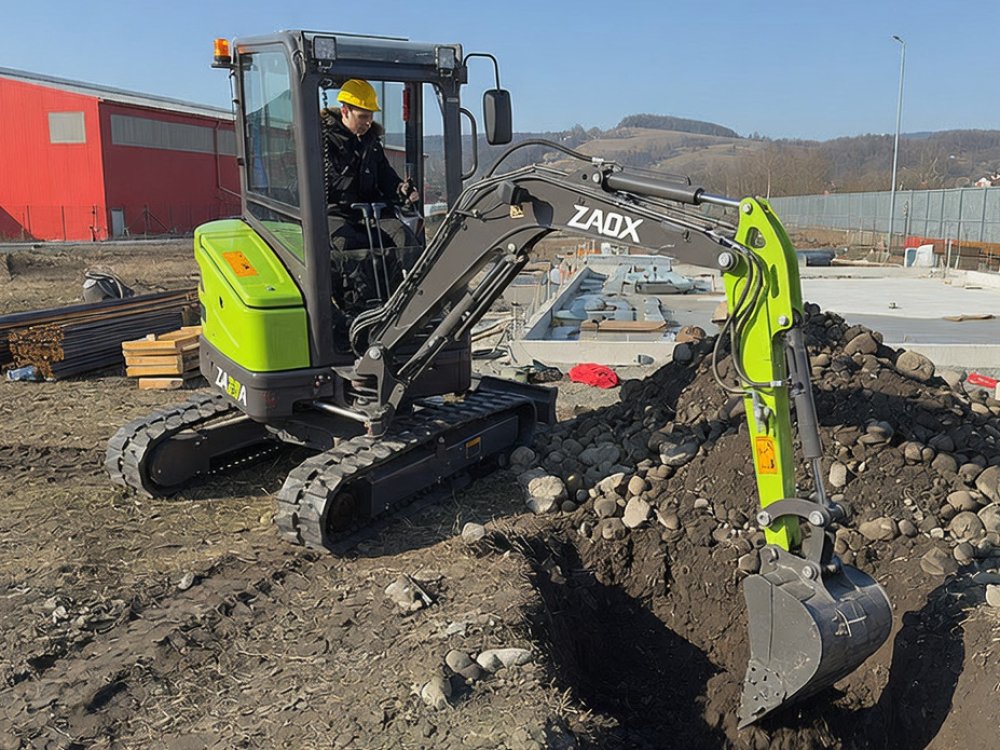

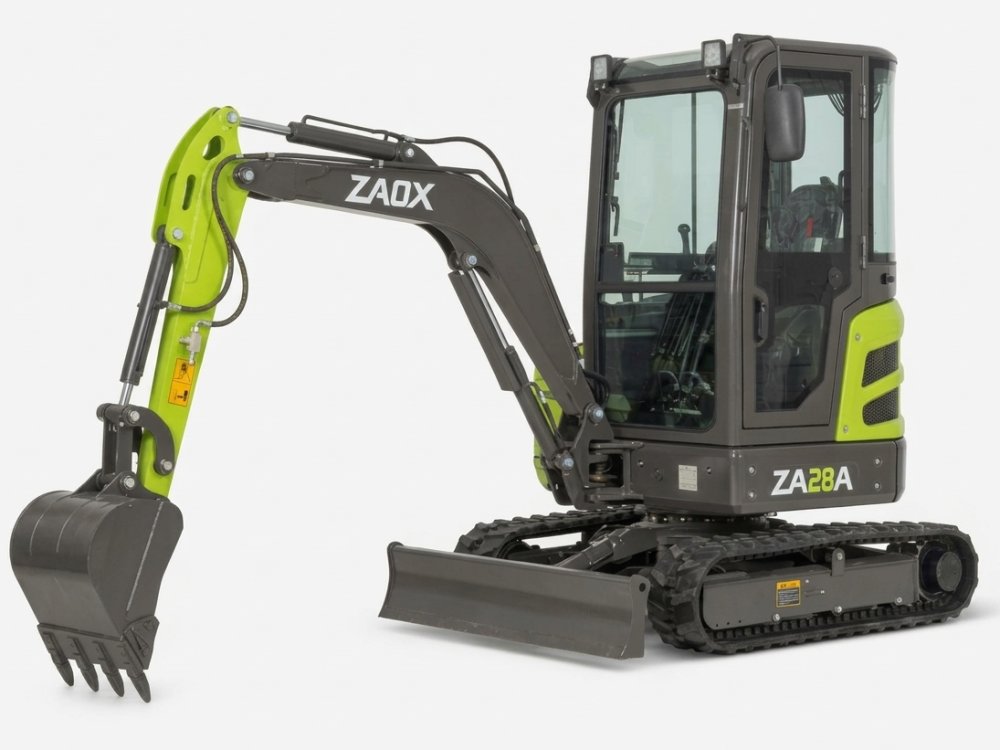

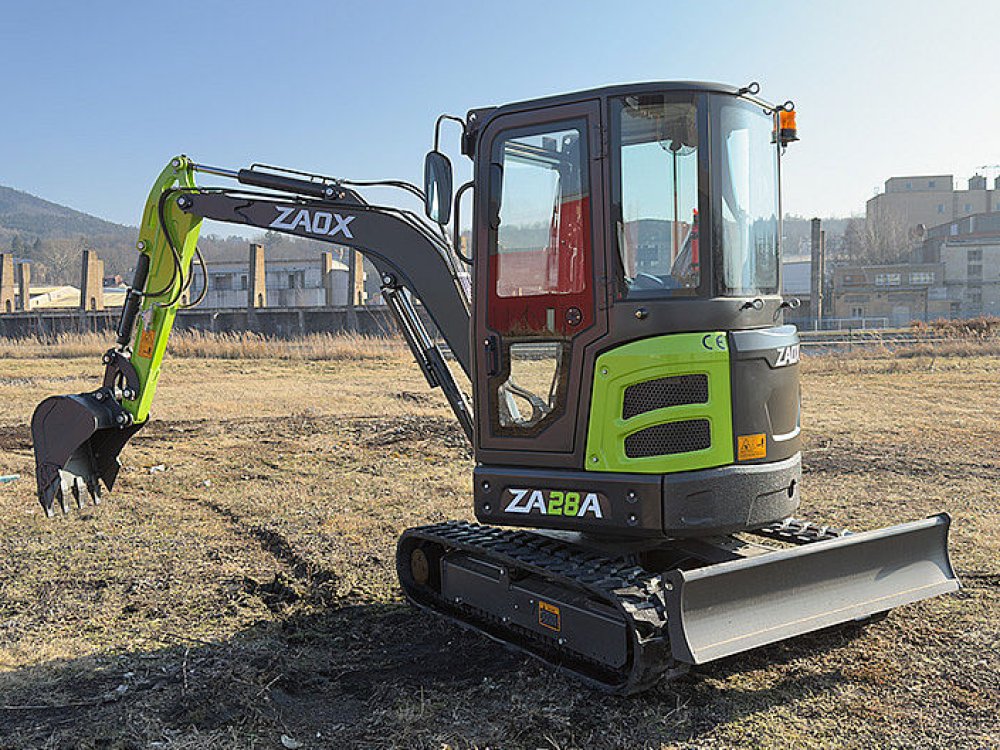

ZA28A

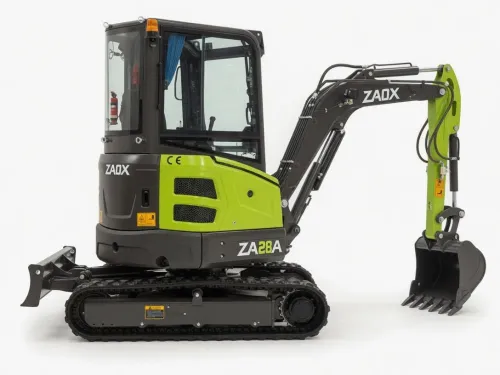

MINI EXCAVATOR ZA28A
WEIGHT: 2 795 KG
ENGINE MODEL: KUBOTA D1105
MAX. DIGGING DEPTH: 2830 mm

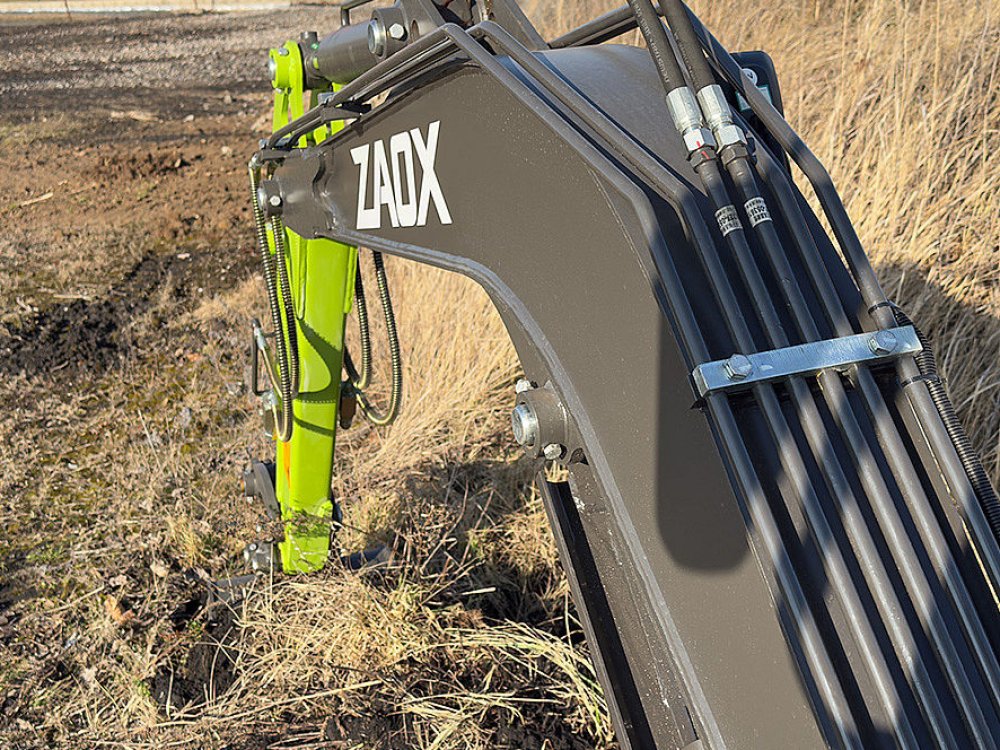

The ZA28A is an excellent hydraulic mini excavator with an operative weight of 2795 kg (around 2.8 tons). It is a no tail machine, with a max Digging Depth over 2,8 mt. The machine comes with a 500 mm Standard Bucket, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard.
The ZA28A is powered by a reliable and low fuel consumption Kubota D1105 Euro V engine in combination with top notch Hydraulic Components for a precise control of the execution elements, good controllability and high working efficiency.
The machine has plenty of power and an enviable quality/price ratio.
The ZA28A is powered by a reliable and low fuel consumption Kubota D1105 Euro V engine in combination with top notch Hydraulic Components for a precise control of the execution elements, good controllability and high working efficiency.
The machine has plenty of power and an enviable quality/price ratio.
Starting at
516 000 Kč
624 360 Kč VAT included
🛡️
Extend your warranty — 2 years or 1000 hours for only + 15 000 Kč
FACTORY OPTIONS
 |
A/C | + 7 000 Kč |
 |

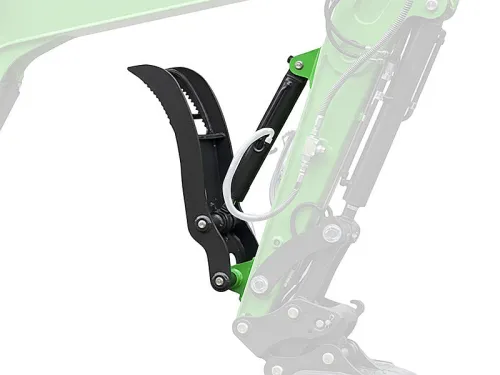

Hydraulic Thumb | + 15 500 Kč |
 |
Quick Hitch Aux Pipeline | + 8 500 Kč |
 |
Second Aux. Pipeline | + 32 000 Kč |
AVAILABLE ACCESSORIES

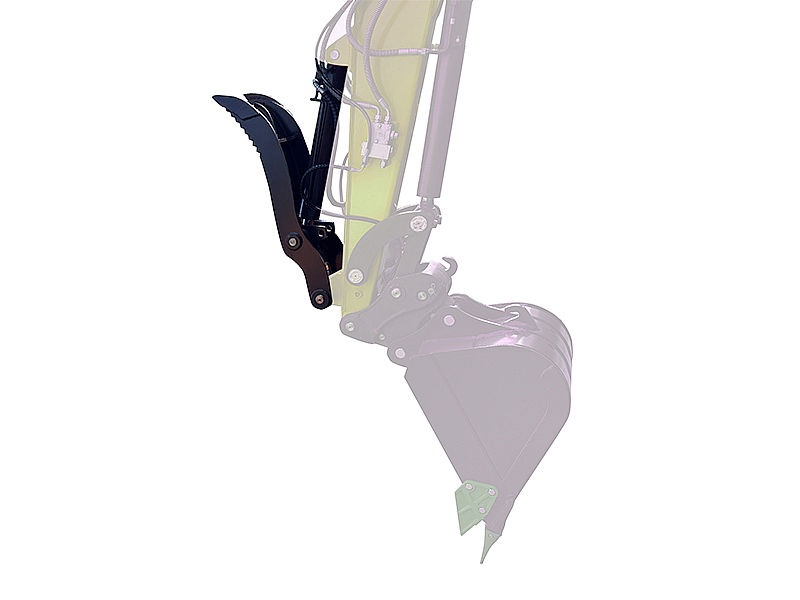

Hydraulic thumb installation kit

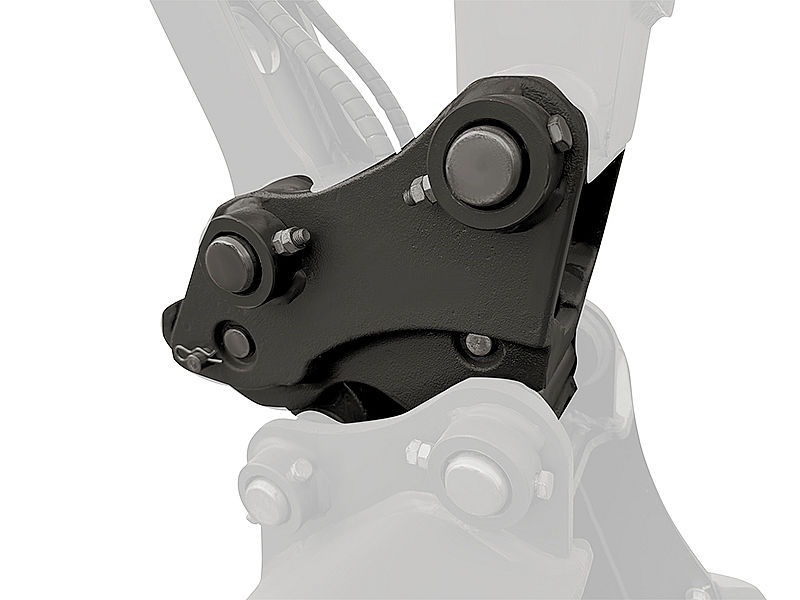

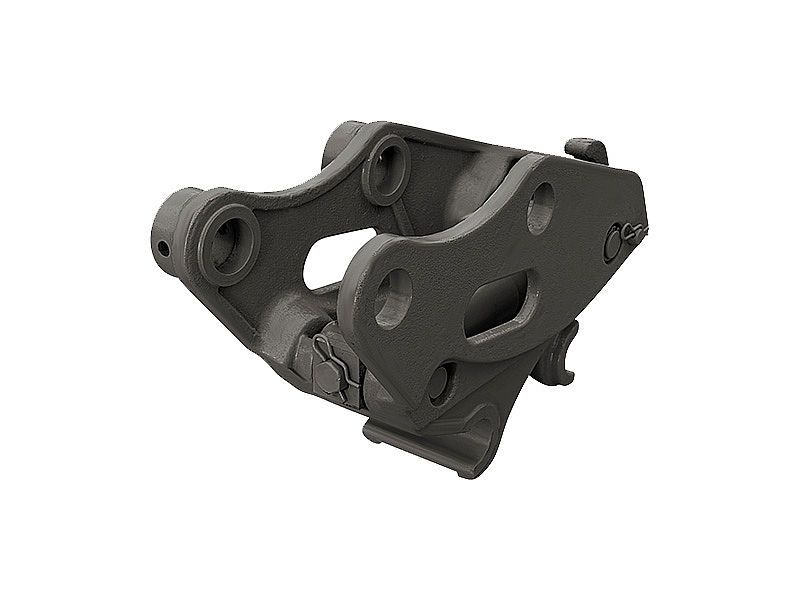

Mechanical Quick Hitch
Hydraulic Quick Hitch

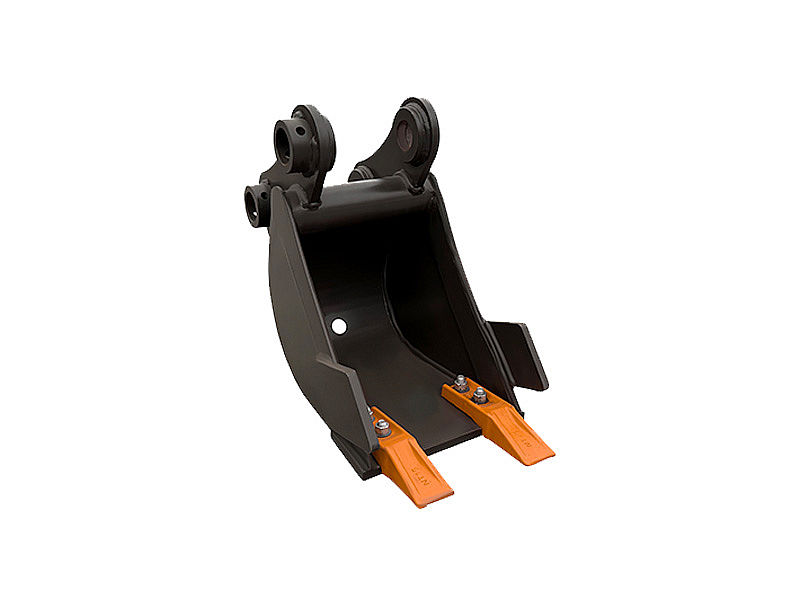

260 mm Bucket with Teeth

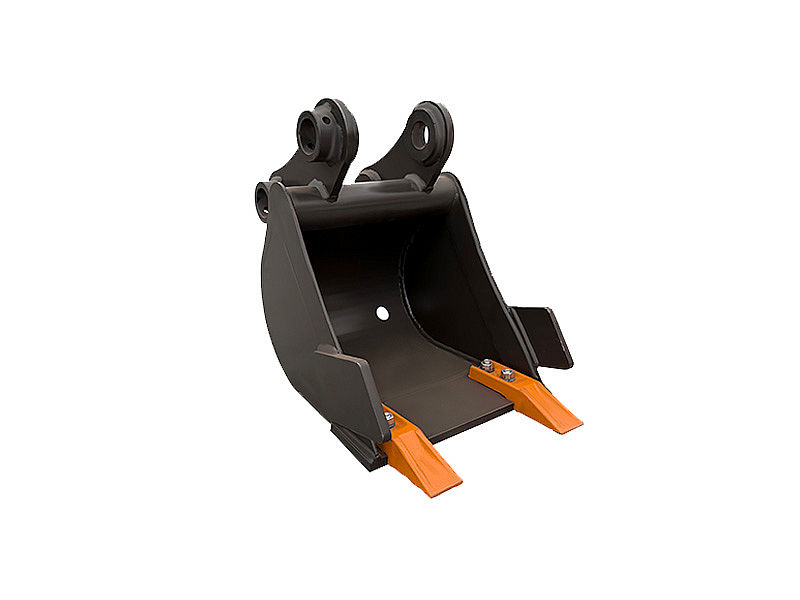

350 mm bucket with teeth

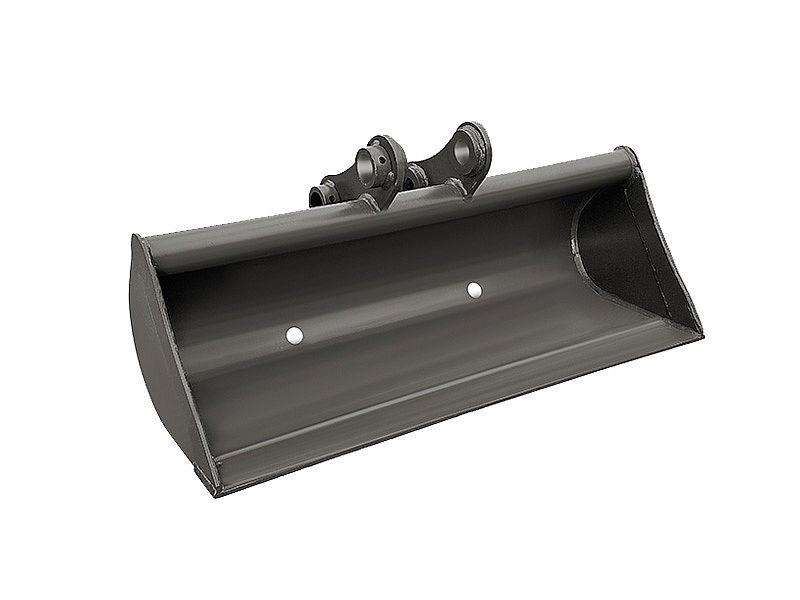

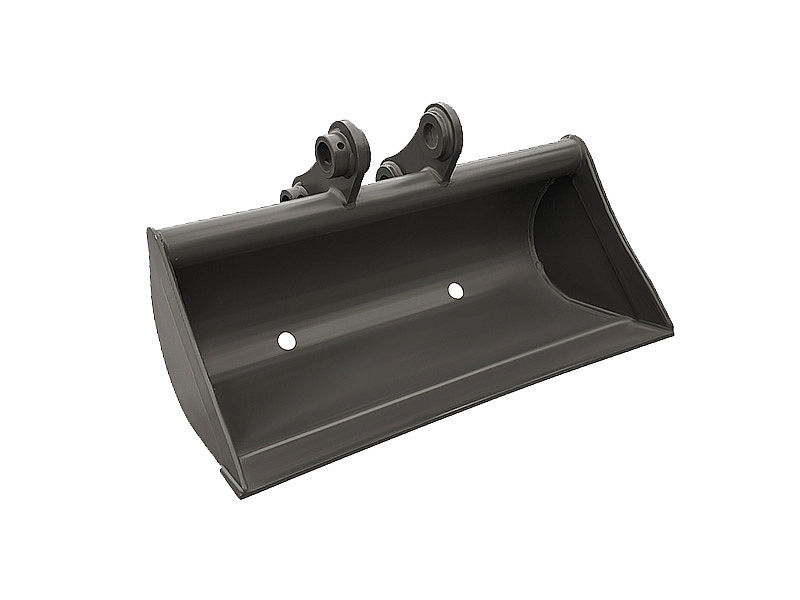

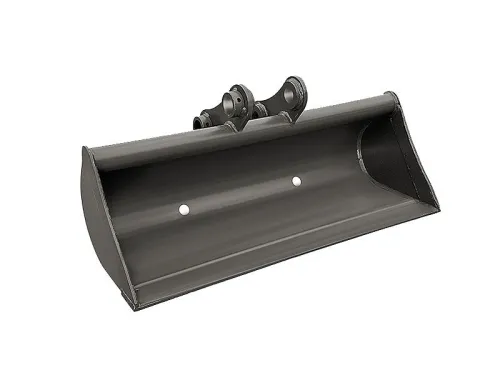

800 mm Clean Bucket

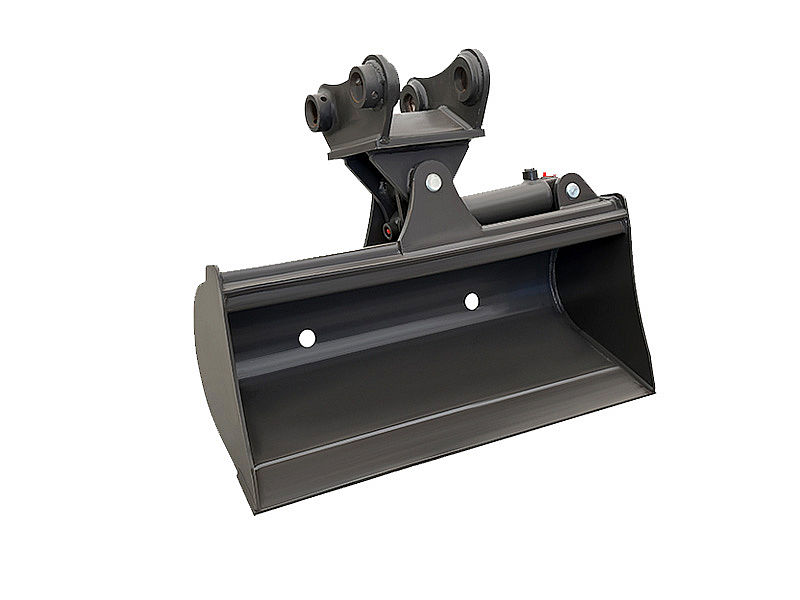

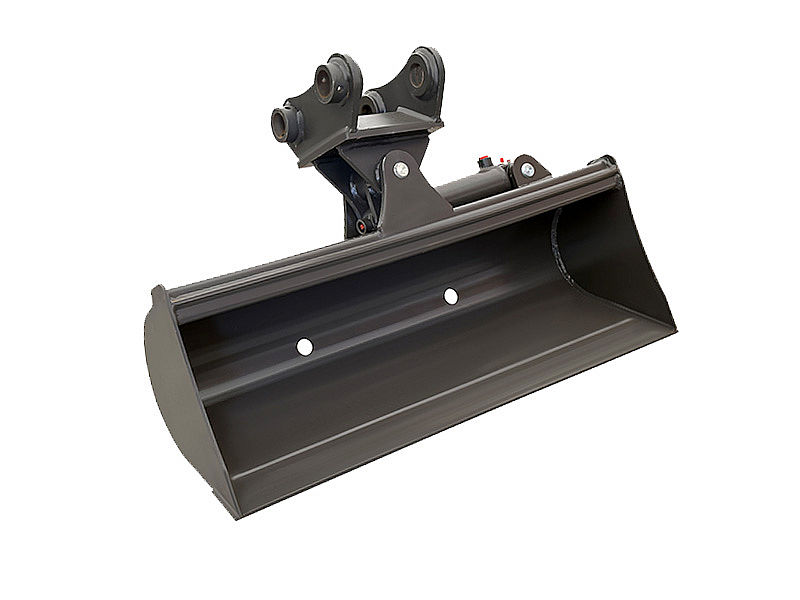

800 mm Hydraulic Tilt Bucket
1000 mm Clean Bucket
1000 mm Tilt Bucket

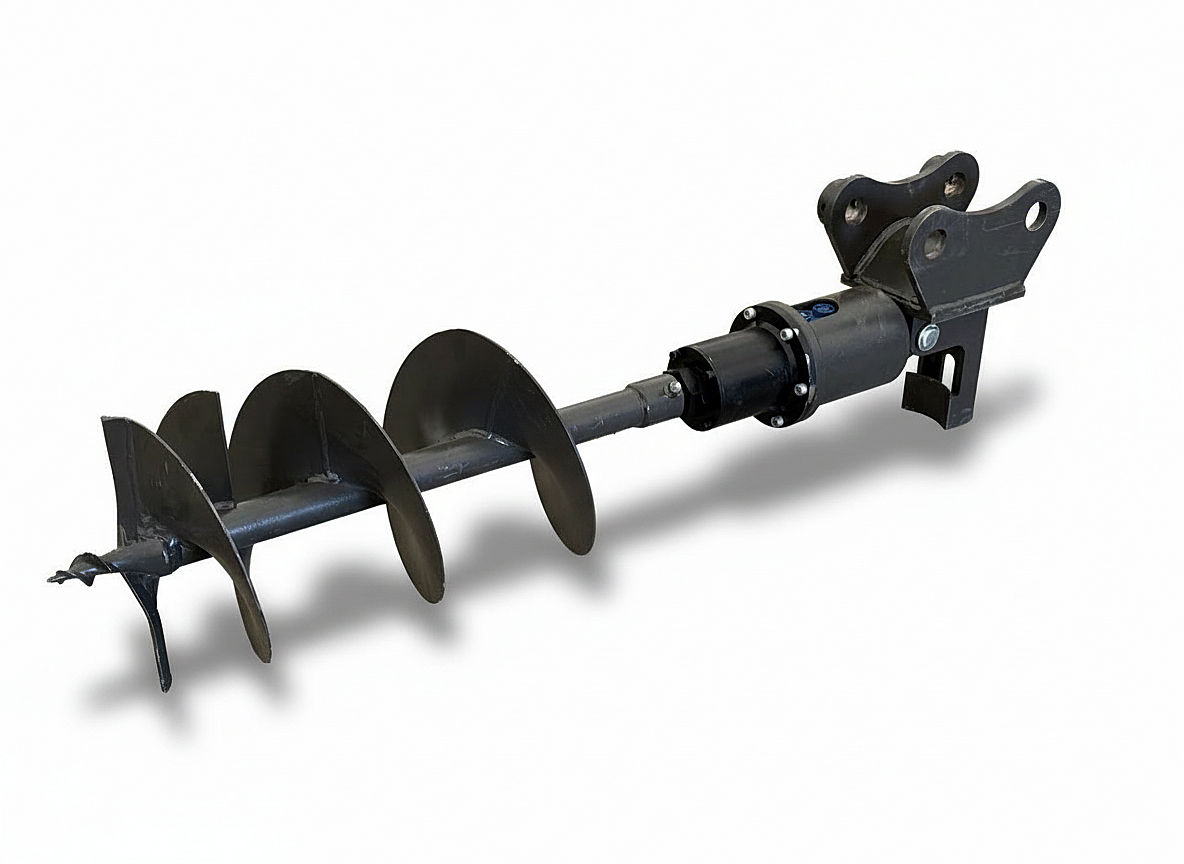

Hydraulic Auger 300 mm

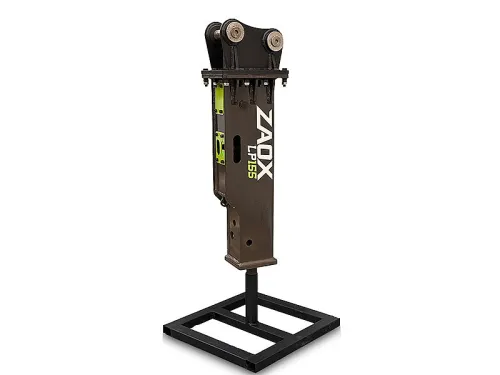

LP155

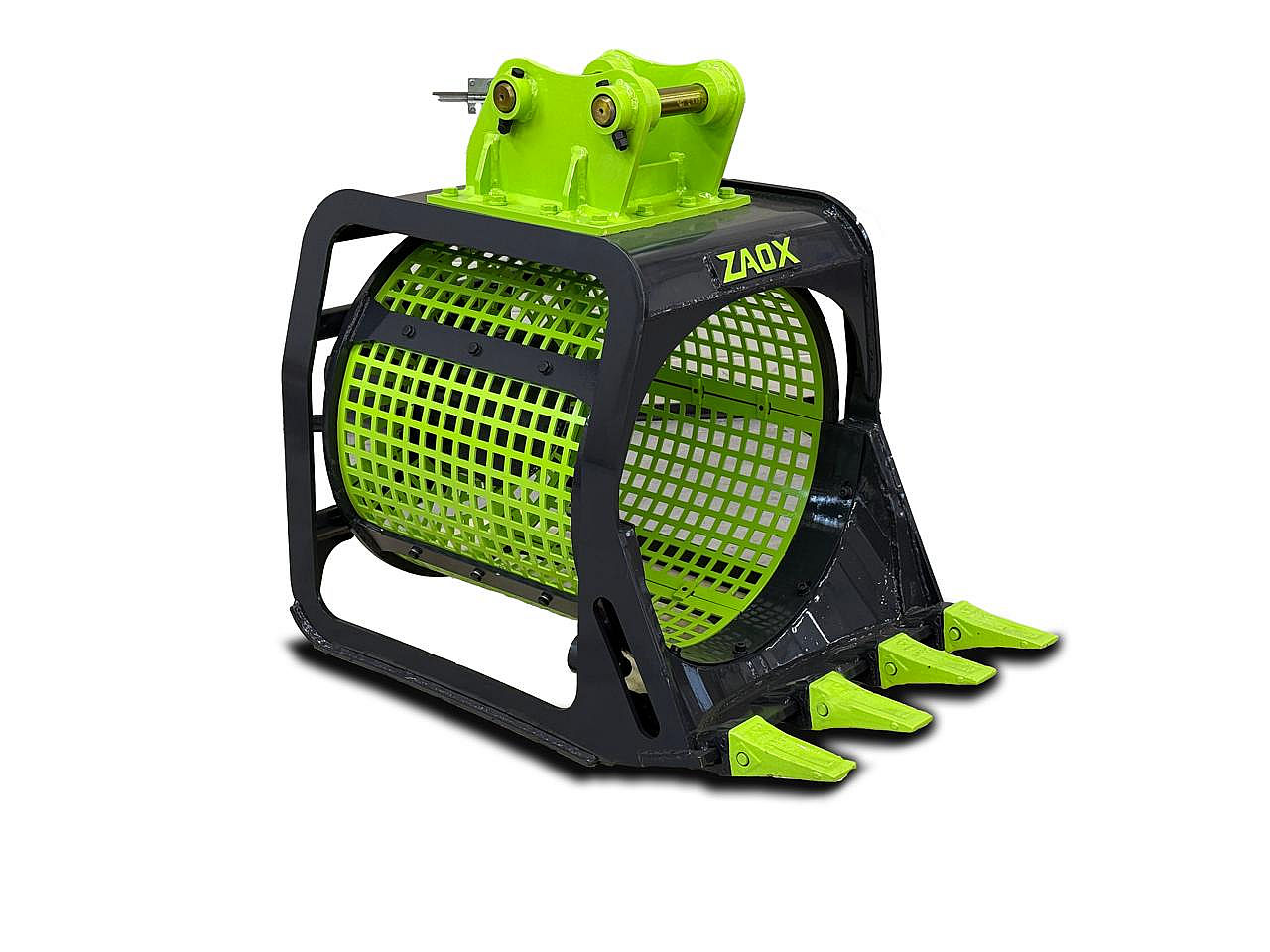

Rotary Screening Bucket ZM2555
Pallet forks for mini excavators

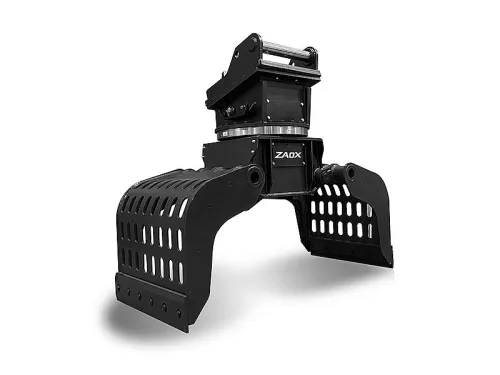

Demolition Grapple ZMDG03 with Rotator
DETAILED SPECIFICATION
| Standard Bucket Capacity/Length (?/mm) | 0.1/500 |
| Swing Speed (rmp) | 1-10 |
| Gradeability (°) | 58 |
| Max. Bucket Digging Force (KN) | 23.5 |
| Max. Arm Digging Force (KN) | 14 |
| Engine Model | KUBOTA D1105 |
| Power/Revolution speed (Kw(HP)/rpm) | 14[18.7]/2000 |
| System Pressure (MPa) | 20.5 |
| Fuel Tank Capacity (L) | 23 |
| Hydraulic Circuit Capacity (L) | 30 |
| Cooling Circuit Capacity (L) | 9 |
| Engine Oil Capacity (L) | 4.2 |
| Bucket capacity (m³) | 0.1 |
| Load Sensing System | <span>?</span> |
| Pump - Variable-output Piston Pump - axial | <span>?</span> |
| Manufacturer Hydraulic Pump | Le-Hydraulix (Bosch/Rexroth) |
| Manufacturer Travel Hydraulic Motor | LKC Hydraulics |
| Manufacturer Swing Hydraulic Motor | RunSun Hydraulic |
| Max. Digging Height (mm) | 4427 |
| Max. Dumping Height (mm) | 3005 |
| Max. Digging Depth (mm) | 2830 |
| Max. Vertical Digging Depth (mm) | 2500 |
| Max. Digging Radius (mm) | 4835 |
| Max. Swing Radius (mm) | 2160 |
| MAx. Dozer Blade Lifting Distance (mm) | 308 |
| MAx. Dozer Blade Cutting Distance (mm) | 360 |
| Total Length (mm) | 4195 |
| Total Width (mm) | 1550 |
| Machine Weight (with all fluids) (kg) | 2720 |
| Cabin Height (mm) | 2479 |
| Axle Base (mm) | 1550 |
| Minimum Ground Clearance (mm) | 285 |
| Wheel (track) Distance (mm) | 1250 |
| Tail Swing Radius (mm) | 860 |
 |
2 years or 1000 hours | + 15 000 Kč |
|
|
3 years or 3000 hours | + 24 500 Kč |
