ZA38A

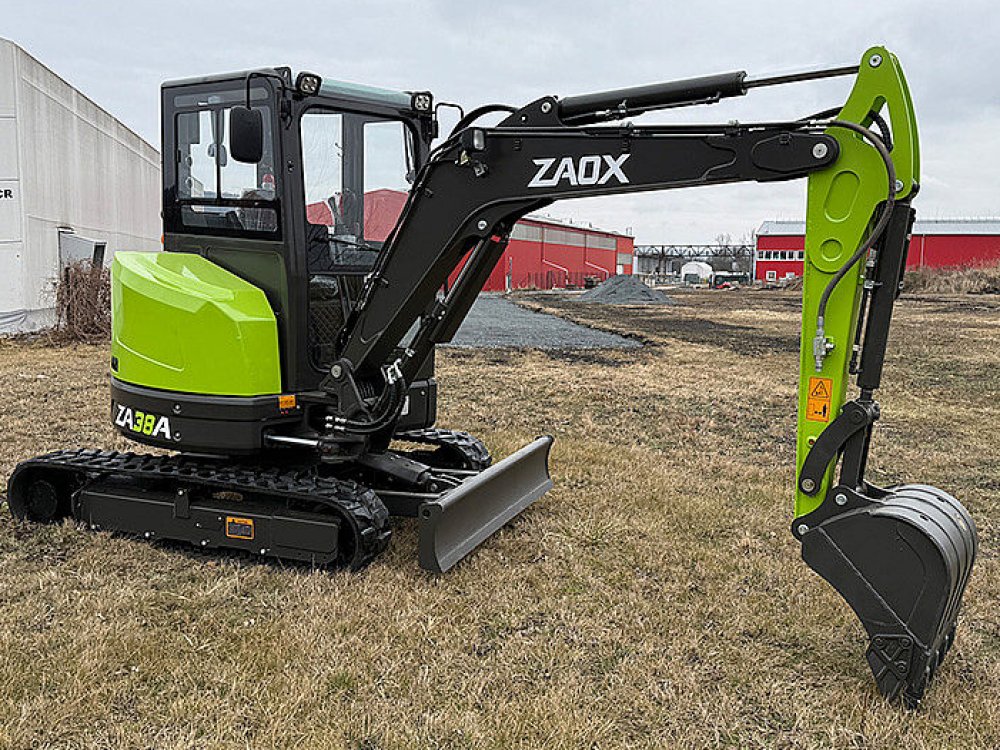

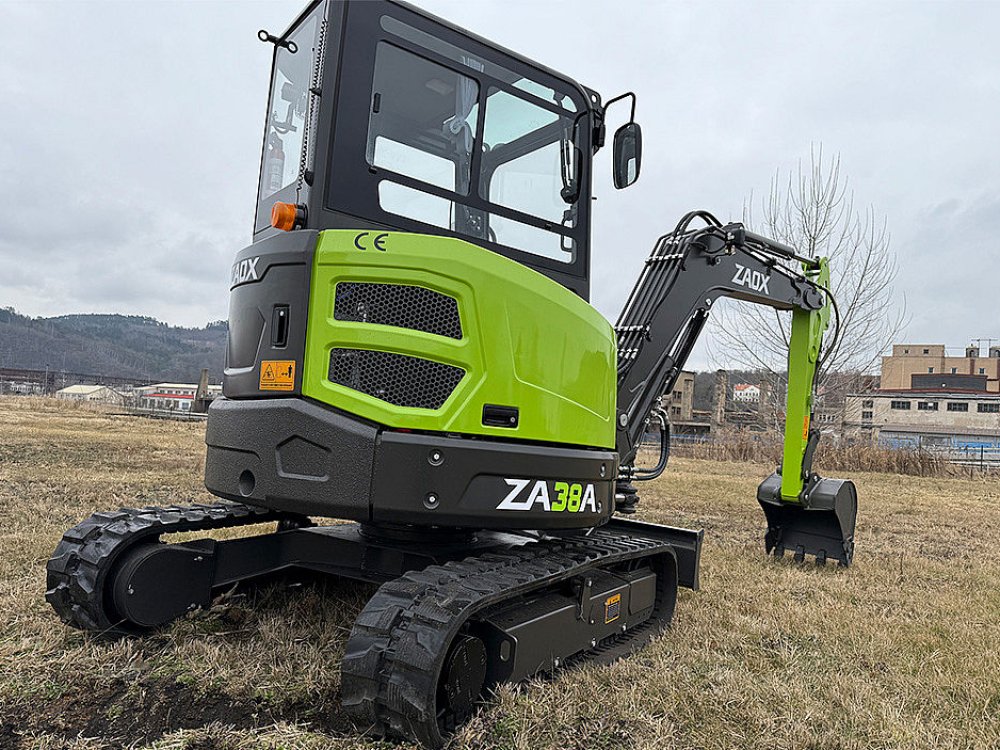

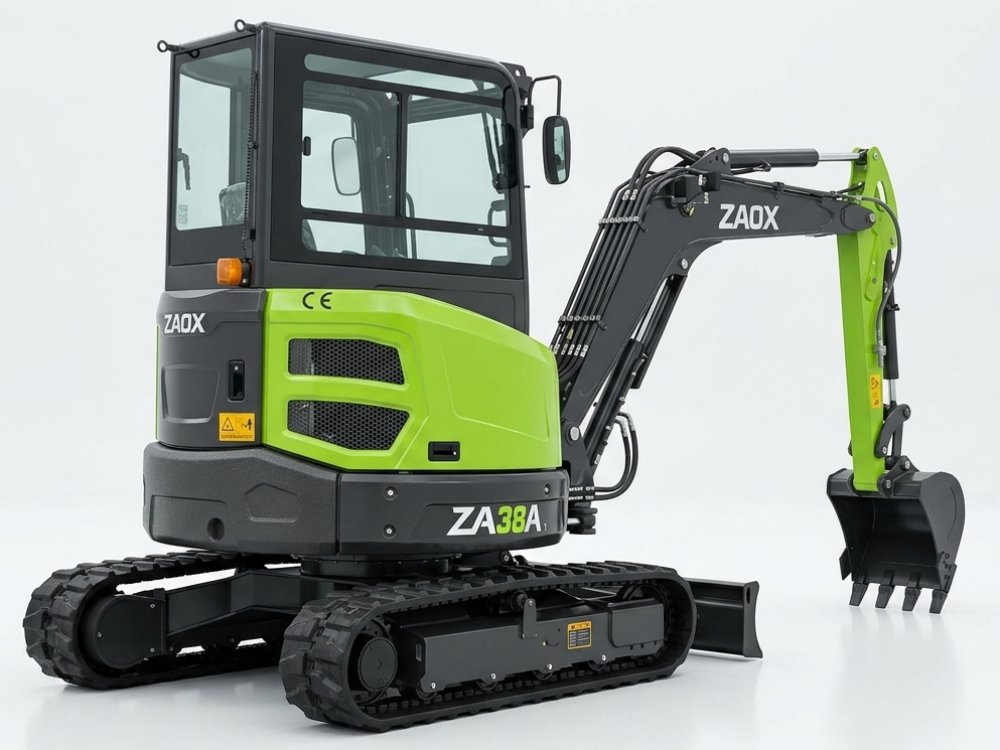

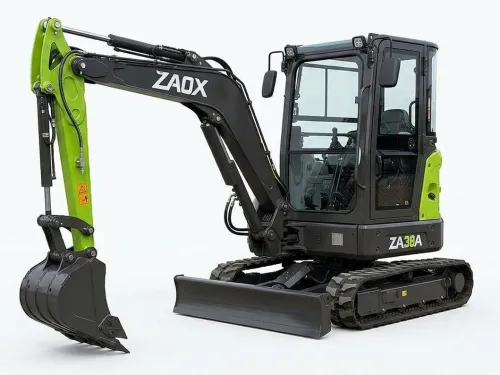

MINI EXCAVATOR ZA38A
WEIGHT: 3 875 KG
ENGINE MODEL: KUBOTA D1703
MAX. DIGGING DEPTH: 3208 mm
KUBOTA D1703 ENGINE
580MM BUCKET WITH TEETH
SWING BOOM
A/C
RUBBER TRUCK
H/L SPEED
AUXILIARY HYDRAULIC PIPELINE

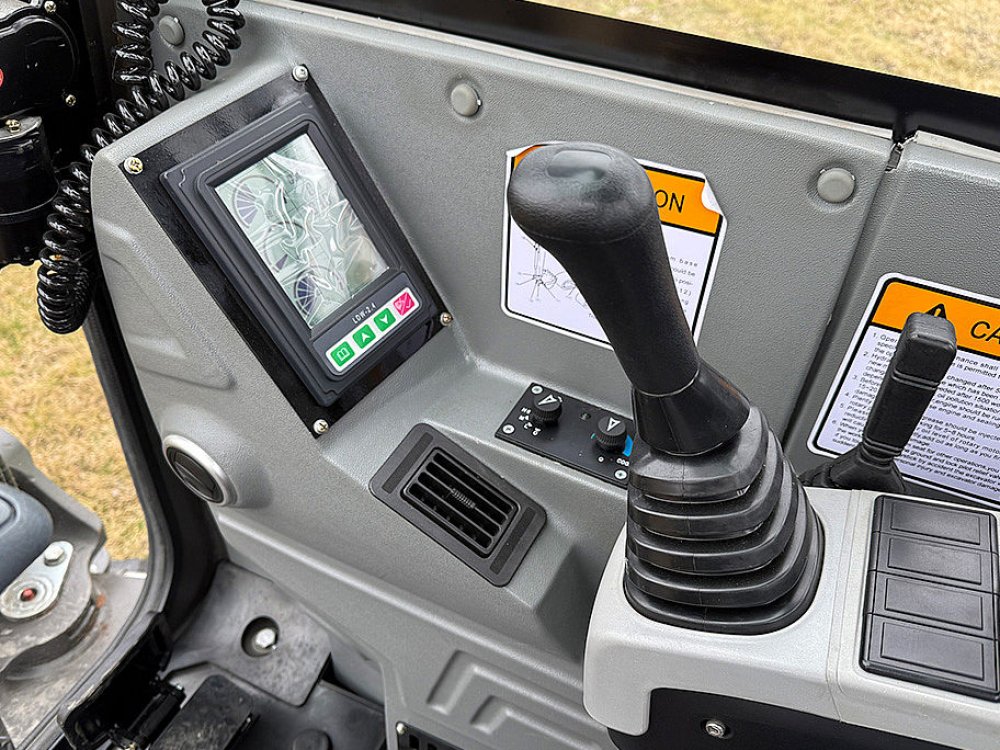

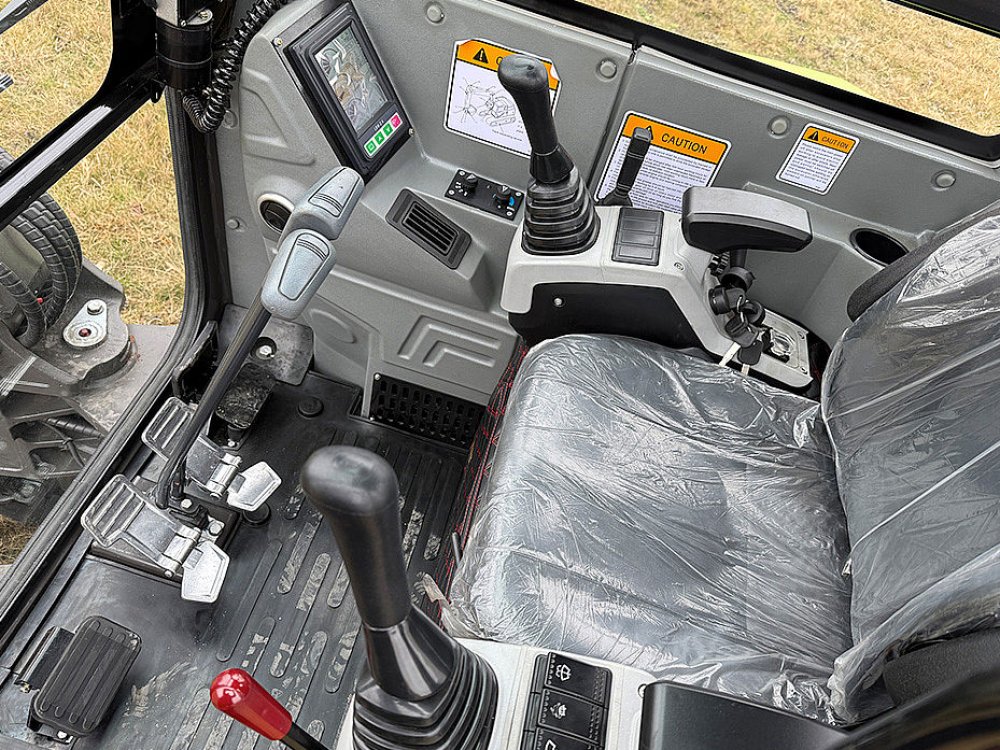

HEATED CAB
ONE YEAR WARRANTY

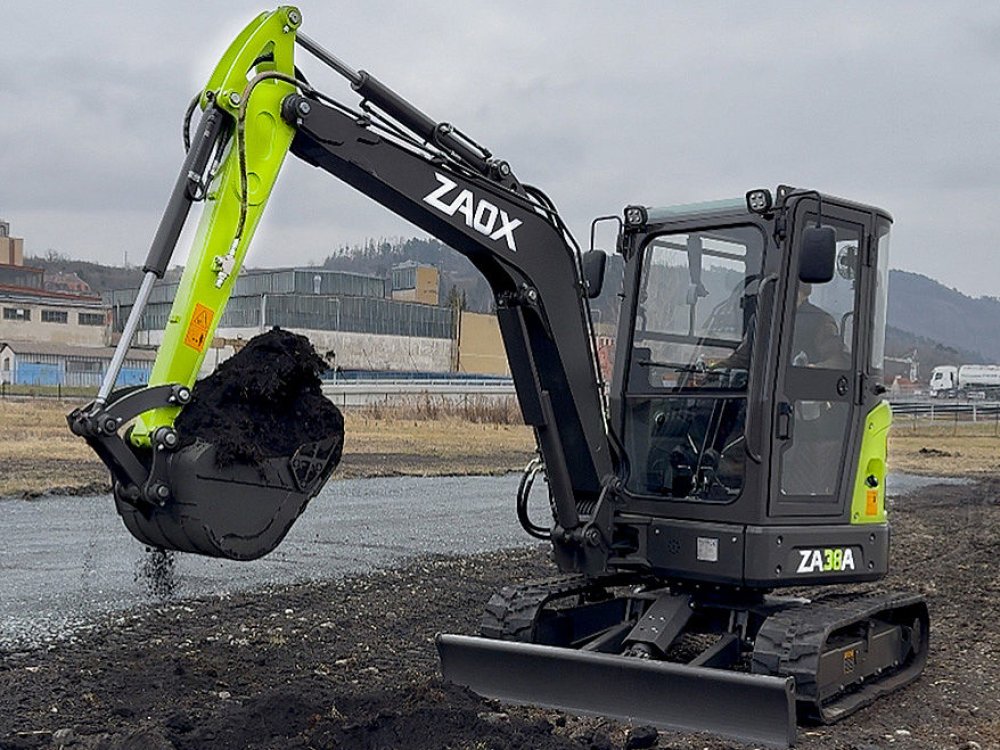

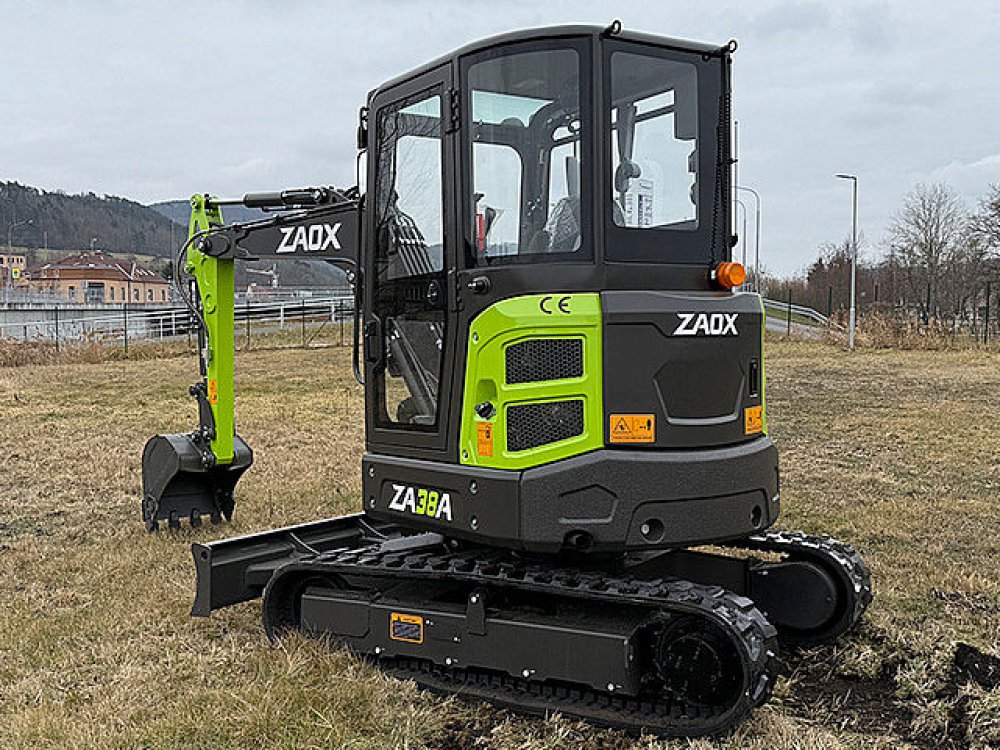

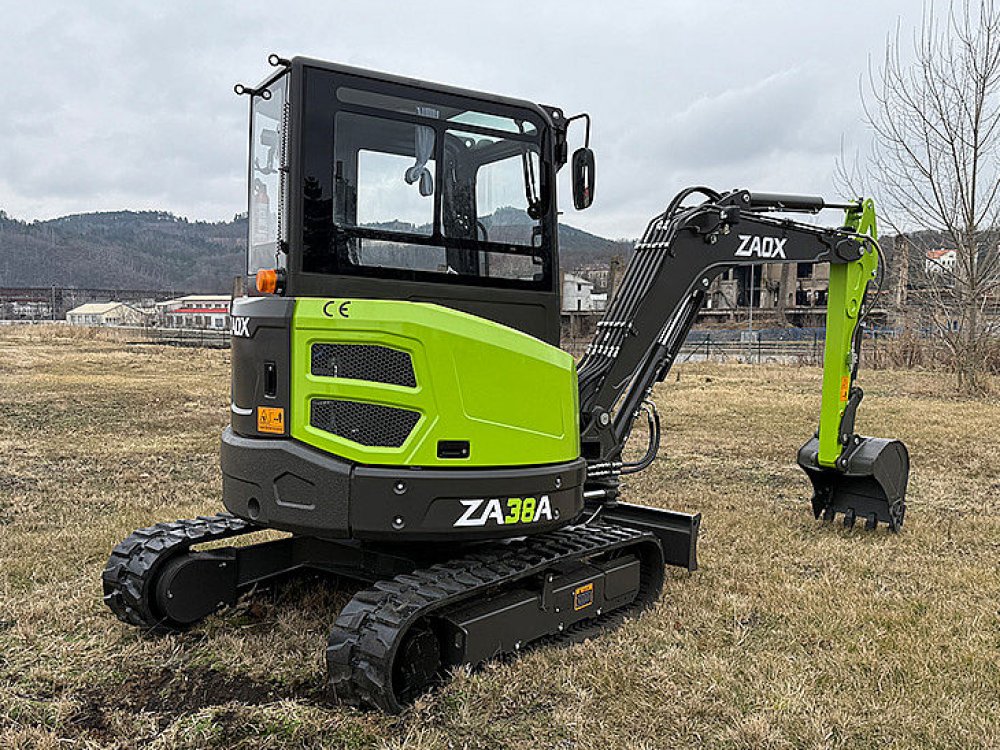

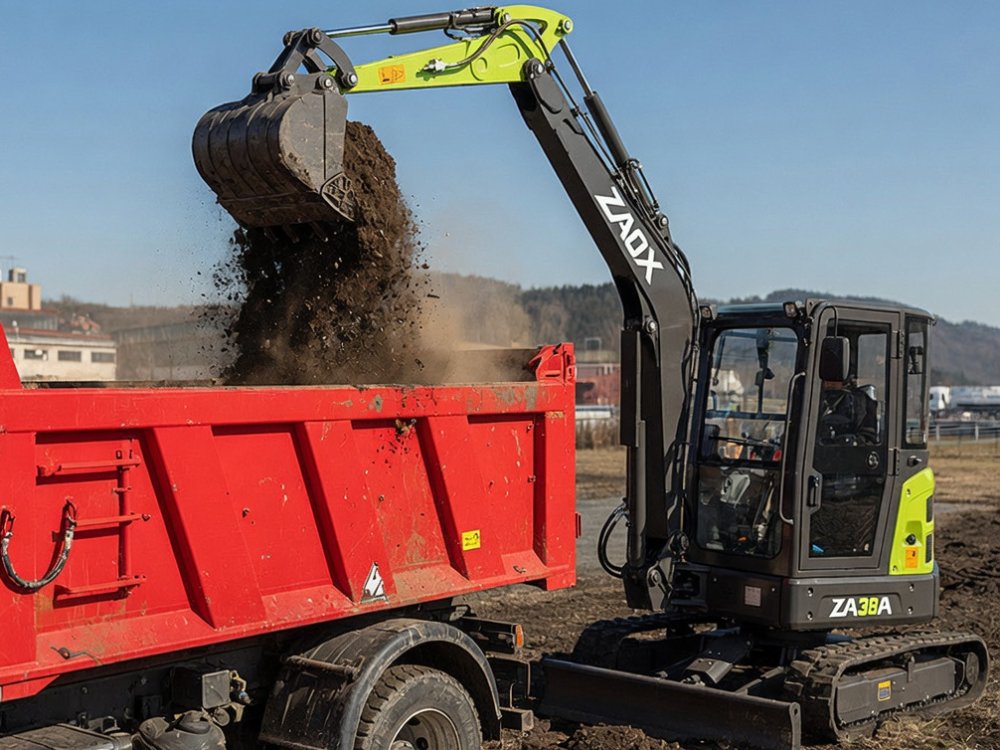

The ZA38A is an excellent hydraulic mini excavator with an operative weight of 3875 kg (around 3.9 tons). It is a no tail machine, with a max Digging Depth over 3,2 mt. The machine comes with a 580 mm Standard Bucket, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard.
The ZA38A is powered by a reliable and low fuel consumption Kubota D17034B Euro V engine in combination with top notch Hydraulic Components. The Zaox Load Sensing System provide a precise control of different execution elements, good controllability and high working efficiency.
The machine has plenty of power and an enviable quality/price ratio.
The ZA38A is powered by a reliable and low fuel consumption Kubota D17034B Euro V engine in combination with top notch Hydraulic Components. The Zaox Load Sensing System provide a precise control of different execution elements, good controllability and high working efficiency.
The machine has plenty of power and an enviable quality/price ratio.
Starting at
606 000 Kč
733 260 Kč VAT included
🛡️
Extend your warranty — 2 years or 2000 hours for only + 17 500 Kč
FACTORY OPTIONS
 |
Hydraulic Thumb | + 17 500 Kč |
 |
Quick Hitch Aux Pipeline | + 8 000 Kč |
 |
Second Aux. Pipeline | + 32 000 Kč |
 |
Tilt Blade | + 56 000 Kč |
AVAILABLE ACCESSORIES

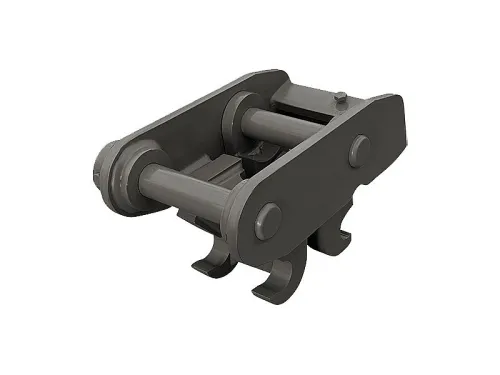

Mechanical quick hitch
Hydraulic Quick Hitch

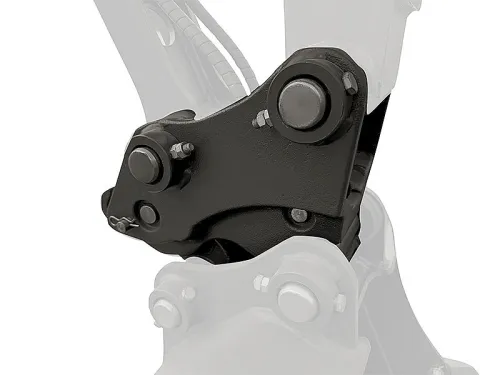

Tilt Quick Hitch
Tiltrotator with quick coupling

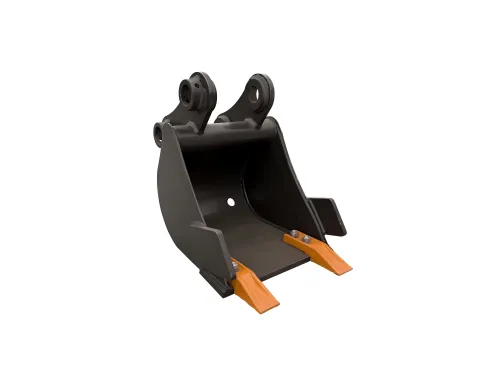

300 mm bucket with teeth
350 mm bucket with teeth
400 mm bucket with teeth
800 mm Clean Bucket
800 mm Hydraulic Tilt Bucket
1000 mm Clean Bucket

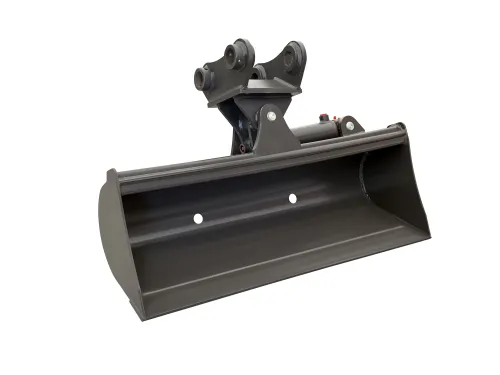

1000 mm Tilt Bucket
1200 mm Tilt Bucket
Hydraulic Auger 300 mm
LP155

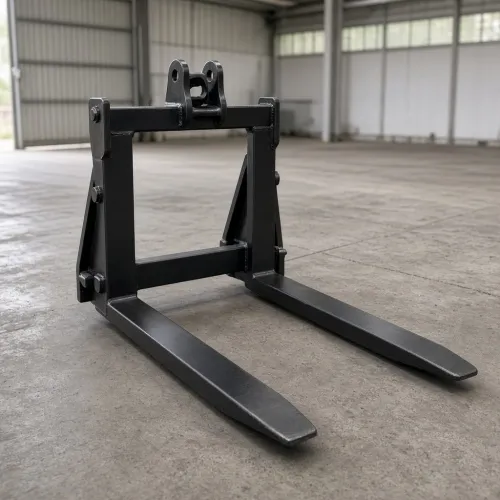

Pallet fork for mini excavator
Rotary Screening Bucket ZM2555
Hydraulic thumb installation kit
DETAILED SPECIFICATION
| Standard Bucket Capacity/Length (?/mm) | 0.2/580 |
| Swing Speed (rmp) | 1-11 |
| Gradeability (°) | 30 |
| Max. Bucket Digging Force (KN) | 30 |
| Max. Arm Digging Force (KN) | 18 |
| Engine Model | KUBOTA D1703 |
| Power/Revolution speed (Kw(HP)/rpm) | 18.2[24.4]/2200 |
| System Pressure (MPa) | 27 |
| Fuel Tank Capacity (L) | 42 |
| Hydraulic Circuit Capacity (L) | 30 |
| Cooling Circuit Capacity (L) | 9 |
| Engine Oil Capacity (L) | 8 |
| Bucket capacity (m³) | 0.12 |
| Load Sensing System | YES |
| Pump - Variable-output Piston Pump - axial | YES |
| Manufacturer Hydraulic Pump | Hengly |
| Manufacturer Travel Hydraulic Motor | LKC Hydraulics |
| Manufacturer Swing Hydraulic Motor | RunSun Hydraulic |
| Max. Digging Height (mm) | 4800 |
| Max. Dumping Height (mm) | 3406 |
| Max. Digging Depth (mm) | 3208 |
| Max. Vertical Digging Depth (mm) | 2957 |
| Max. Digging Radius (mm) | 5480 |
| Max. Swing Radius (mm) | 2530 |
| MAx. Dozer Blade Lifting Distance (mm) | 365 |
| MAx. Dozer Blade Cutting Distance (mm) | 385 |
| Total Length (mm) | 4919 |
| Total Width (mm) | 1755 |
| Machine Weight (with all fluids) (kg) | 3800 |
| Cabin Height (mm) | 2525 |
| Axle Base (mm) | 1670 |
| Minimum Ground Clearance (mm) | 295 |
| Wheel (track) Distance (mm) | 1420 |
| Tail Swing Radius (mm) | 870 |
 |
2 years or 2000 hours | + 17 500 Kč |
|
|
3 years or 3000 hours | + 28 500 Kč |
