ZS12

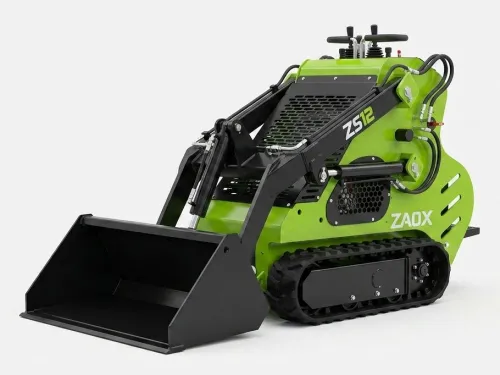

MINI SKID LOADER ZS12
WEIGHT: 1 185 KG
DUMPING HEIGHT: 1395 mm
With a maximum lift height of 2178mm and an unload height of 1395mm, this machine is highly agile and efficient. Its 18.2KW engine delivers strong performance, complemented by a stable, reliable hydraulic system with noise levels at or below 90dB. Ideal for construction sites or farms, it weighs 1185kg, moves at 6km/h, and is a versatile, dependable work partner.
Starting at
156 000 Kč
188 760 Kč VAT included
🛡️
Extend your warranty — 2 years or 2000 hours for only + 5 500 Kč
FACTORY OPTIONS
 |
High Flow Pump | + 6 500 Kč |
DETAILED SPECIFICATION
| Standard Bucket Capacity/Length (?/mm) | 0.12/835 |
| Gradeability (°) | 30 |
| Power/Revolution speed (Kw(HP)/rpm) | 17.2[23]/3600 |
| System Pressure (MPa) | 20 |
| Max Speed (km/h? | 6 |
| Engine Model | Briggs&Stratton |
| Dumping height (mm) | 1395 |
| Dumping angle at maximum height (°) | 36 |
| Maximum Dumping Distance from Frame (mm) | 620 |
| Rollback of Bucket on Ground (°) | 14 |
| Rollback of Bucket at Full Height (°) | 43 |
| Total Length (mm) | 2400 |
| Total Width (mm) | 835 |
| Track Width (mm) | 830 |
| Machine Weight (with all fluids) (kg) | 1185 |
| Overall Operating Height (mm) | 1260 |
| Overall Length with Bucket (mm) | 2400 |
| Width (mm) | 830 |
| Bucket Width (mm) | 835 |
 |
2 years or 2000 hours | + 5 500 Kč |
|
|
3 years or 3000 hours | + 8 000 Kč |
