ZR1500

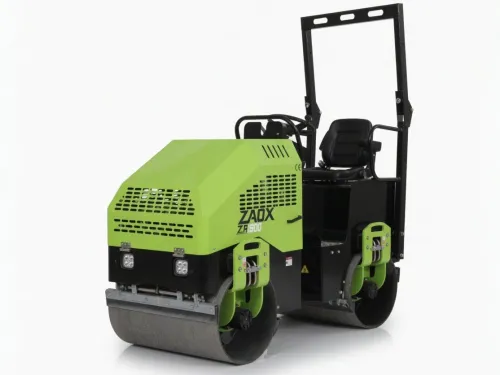

ROAD ROLLER ZR1500
WEIGHT: 1 500 KG
ENGINE MODEL: Kubota D1105
EXITING FORCE: 30 KN
KUBOTA D1105 ENGINE
ONE YEAR WARRANTY
HYDRAULIC TRANSMISSION
HYDRAULIC VIBRATION
WATER TANK

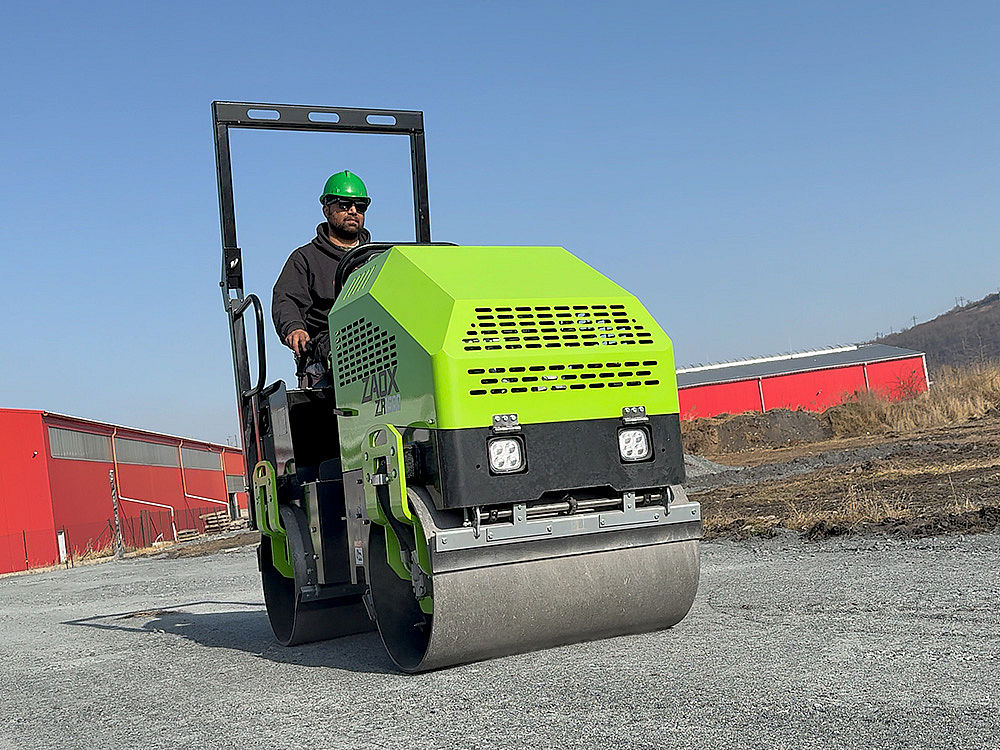

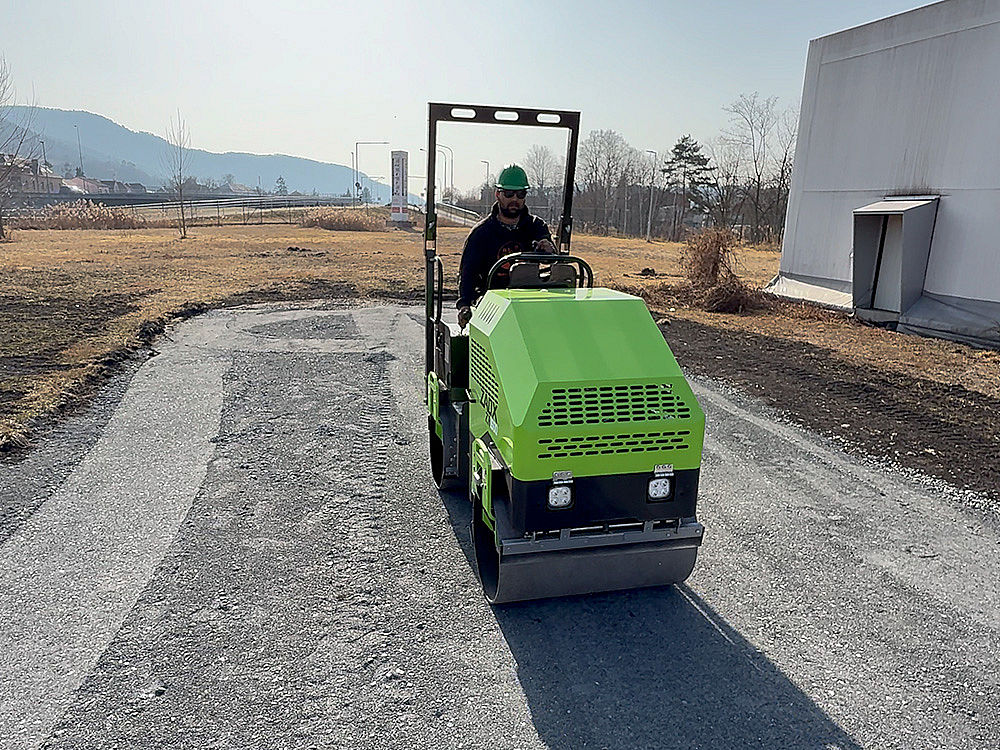

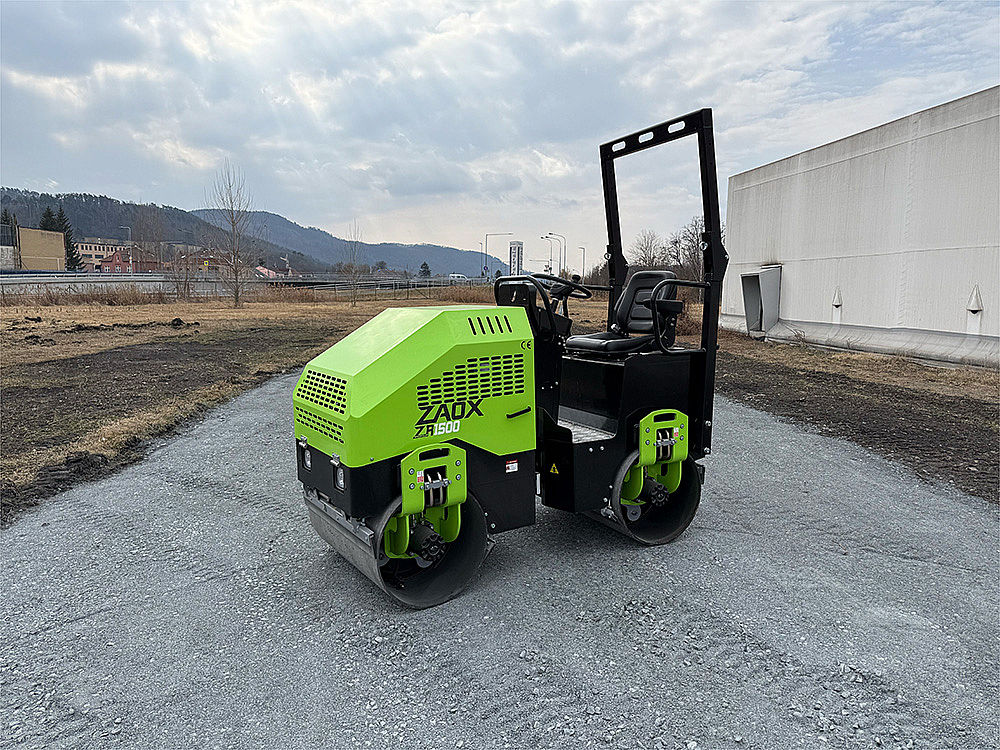

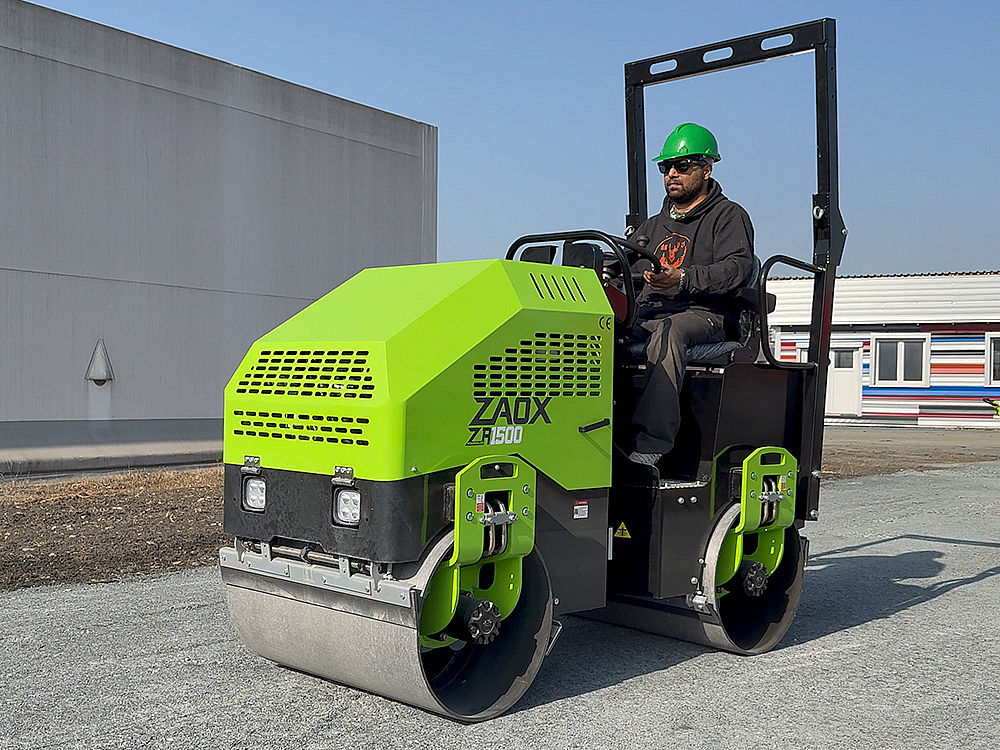

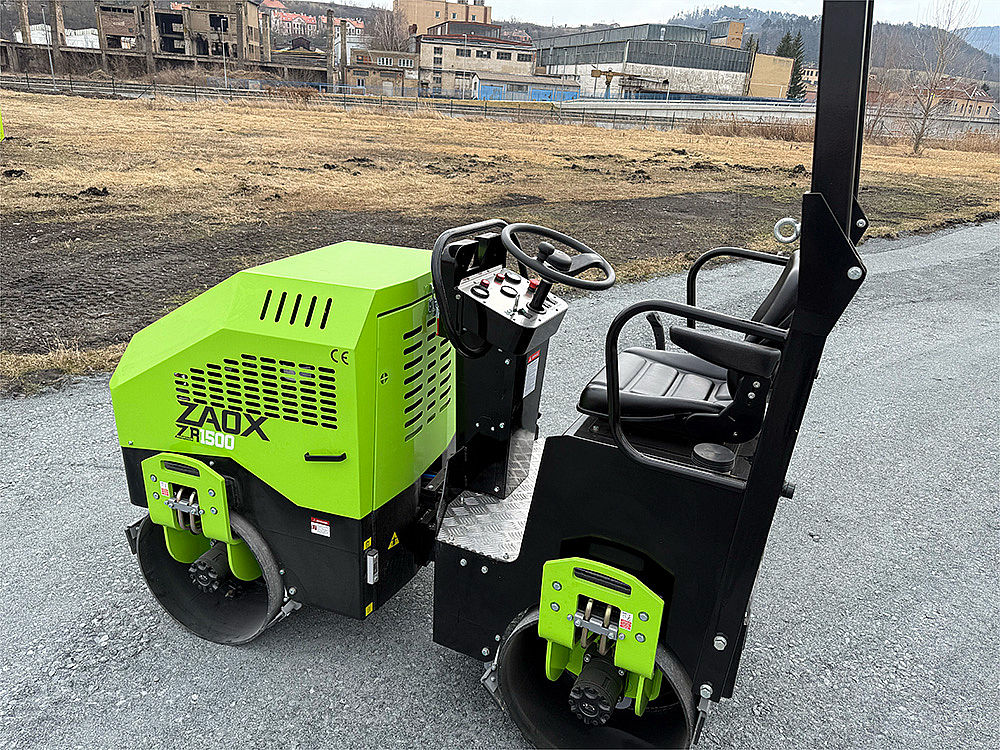

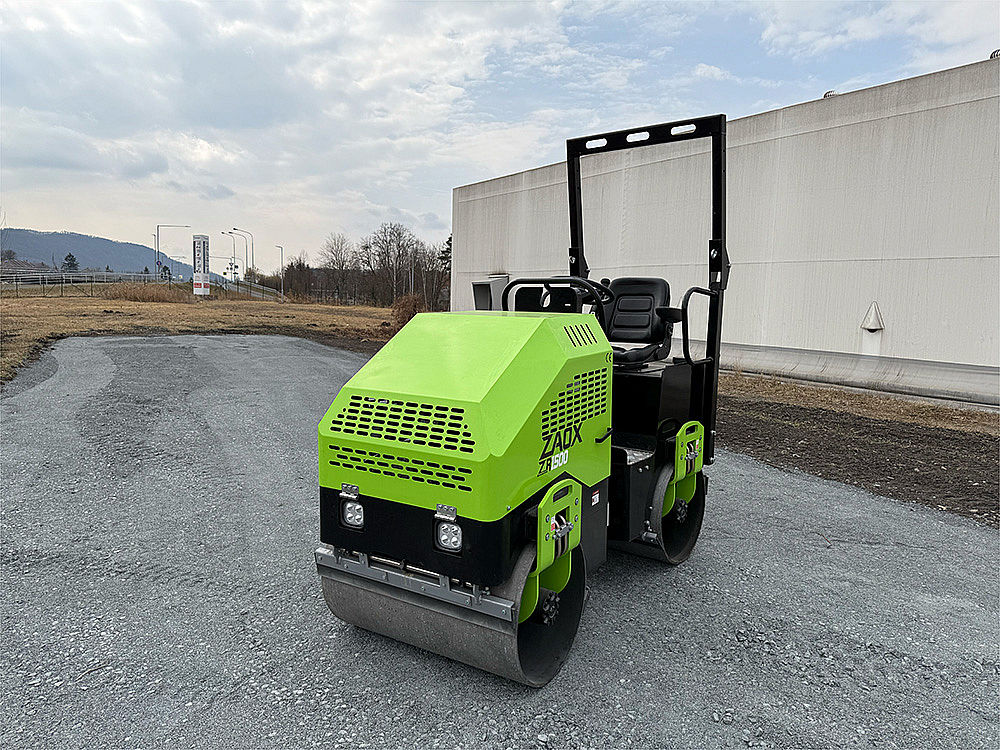

The Road Roller ZAOX model ZR1500 is a comfortable and very reliable machinery with an operating weight of 1.5 tons. It is powered by a low consumption Euro V Kubota D1105 engine, with hydraulic stearing and hydraulic transmission.
It has a huge 100L water tank and hydraulic vibration system.

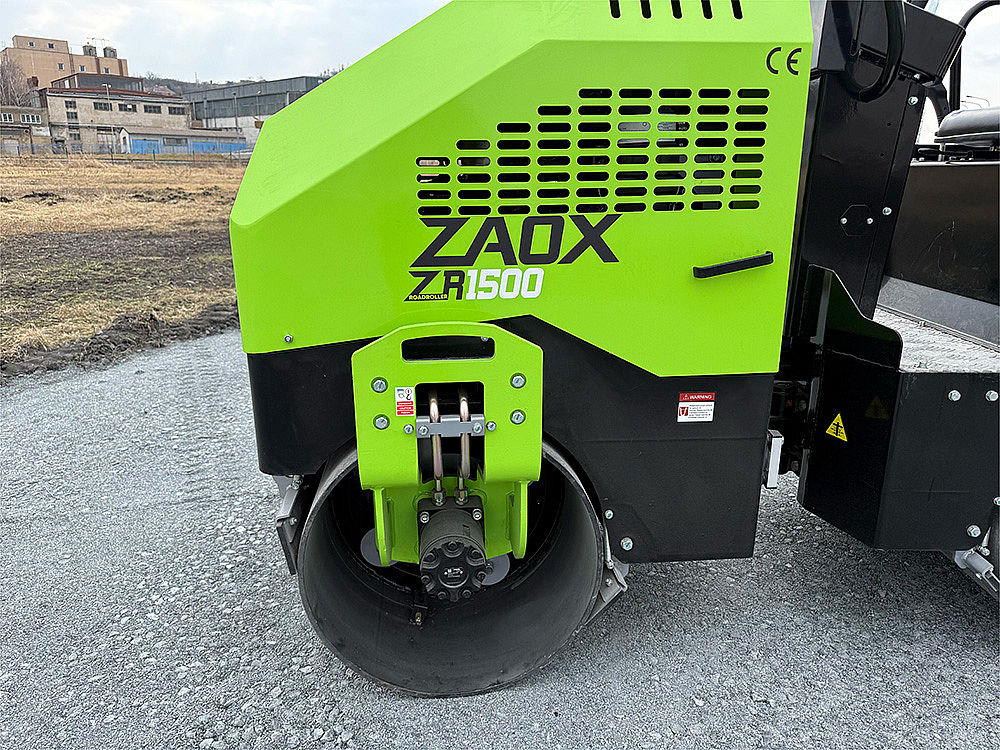

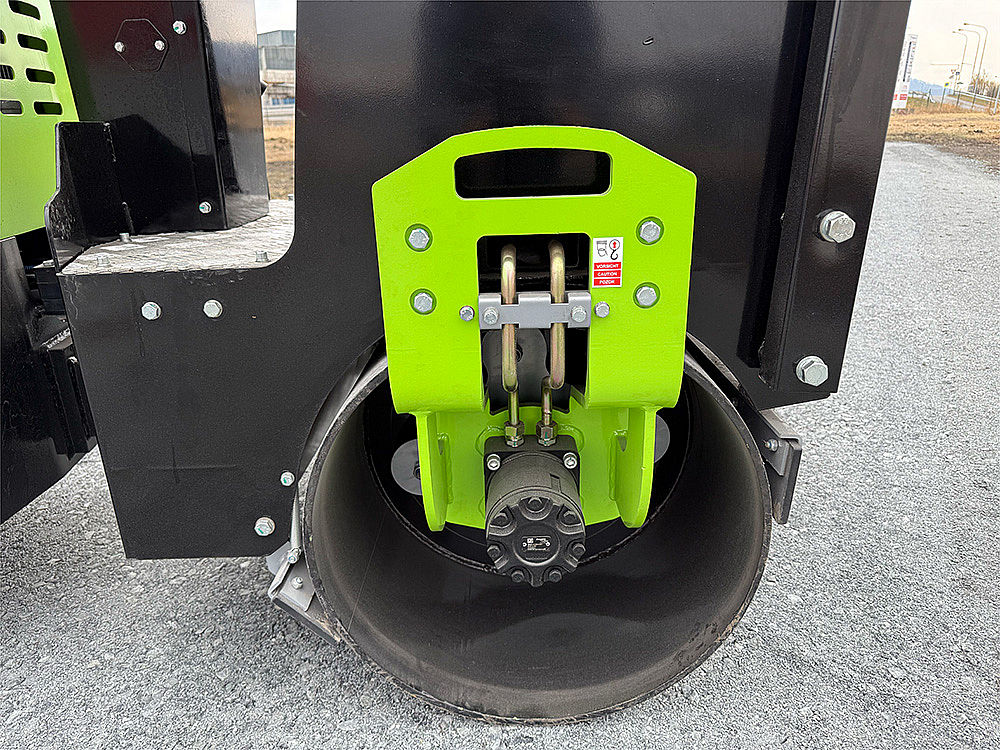

The machinery works smoot on any terrain (gravel, sand, asphalt) with a high productivity thank to en exiting force up to 30KN and a steel wheels with a diameter of 560mm at a width of 900 mm (front axle) and 1000 mm (rear axle)
The Road Roller ZAOX model ZR1500 is a valid option in all places where it is necessary to compact the soil, even for heavy-duty work.
It has a huge 100L water tank and hydraulic vibration system.
The machinery works smoot on any terrain (gravel, sand, asphalt) with a high productivity thank to en exiting force up to 30KN and a steel wheels with a diameter of 560mm at a width of 900 mm (front axle) and 1000 mm (rear axle)
The Road Roller ZAOX model ZR1500 is a valid option in all places where it is necessary to compact the soil, even for heavy-duty work.
Starting at
364 000 Kč
440 440 Kč VAT included
🛡️
Extend your warranty — 2 years or 2000 hours for only + 18 000 Kč
DETAILED SPECIFICATION
| Gradeability (°) | 30 |
| Engine Model | Kubota D1105 |
| Power/Revolution speed (Kw(HP)/rpm) | 18.2[24.4]/3000 |
| Operative weight (Kg) | 1500 |
| Driving Mode | Hydraulic |
| Walk Speed (km/h) | 0-8 |
| Vibrating Control | Hydraulic |
| Static Linear Load (N/cm) | 55/70 |
| Nominal Amplitude (mm) | 0.6 |
| Vibration Frequency (HZ) | 65 |
| Exiting Force (KN) | 30 |
| Water Tank (L) | 100 |
| Hydraulic Oil Tank Capacity (L) | 60 |
| Steel Wheel Size (Front / Rear) (mm) | [fi]560X900 / [fi]560X1000 |
| Machine Weight (with all fluids) (kg) | 1425 |
| Length (mm) | 2325 |
| Width (mm) | 985 |
| Height (mm) | 2125 |
 |
2 years or 2000 hours | + 18 000 Kč |
|
|
3 years or 3000 hours | + 27 500 Kč |
