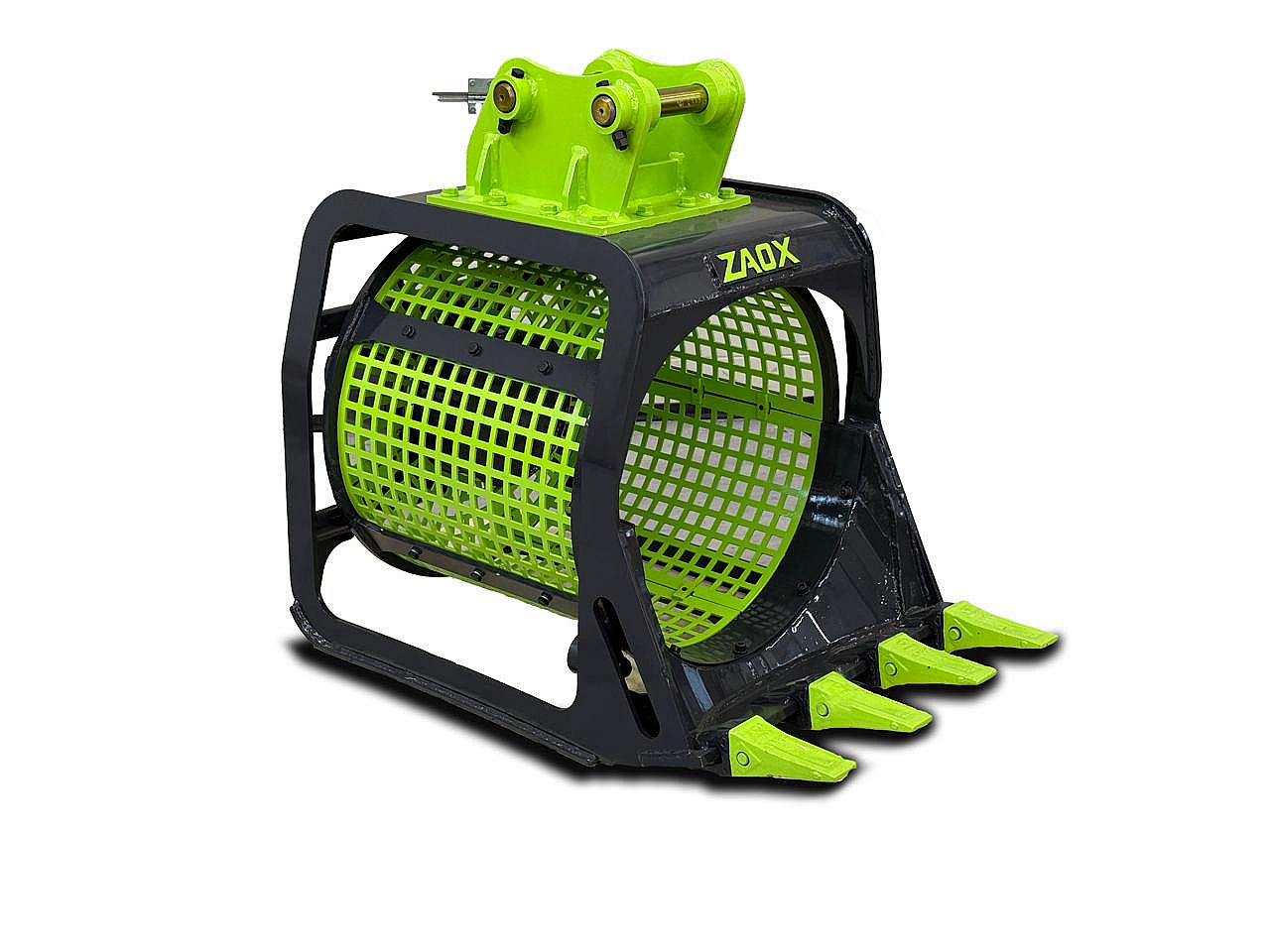

Rotary Screening Bucket ZM2555
Rotary Screening Bucket ZM2555
WEIGHT: 260 KG
EXCAVATOR WEIGHT: 2.5 - 5.5 ton
ROTARY SCREEN DIAMETER: 592 mm
BUCKET WIDTH: 592 mm

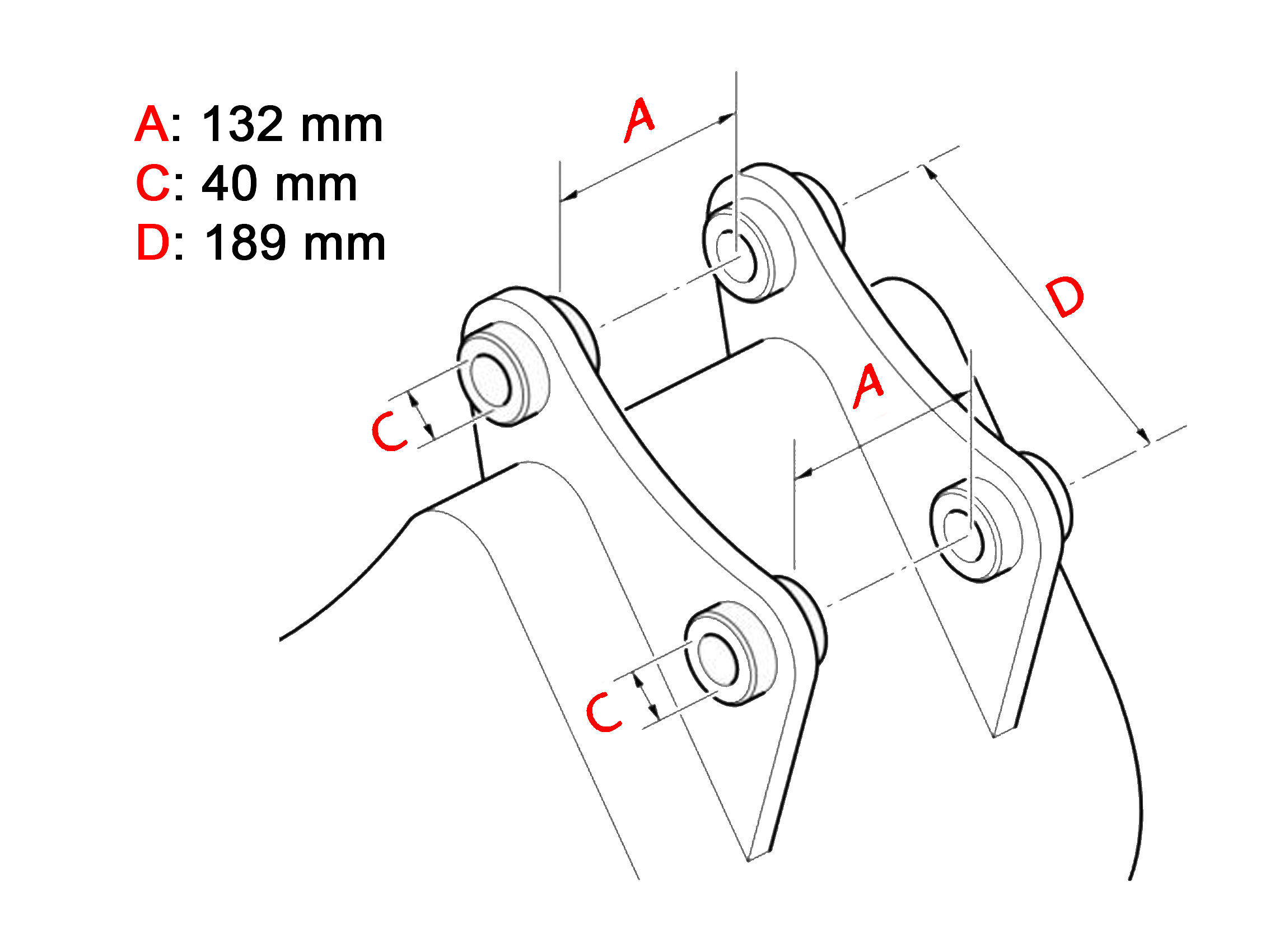

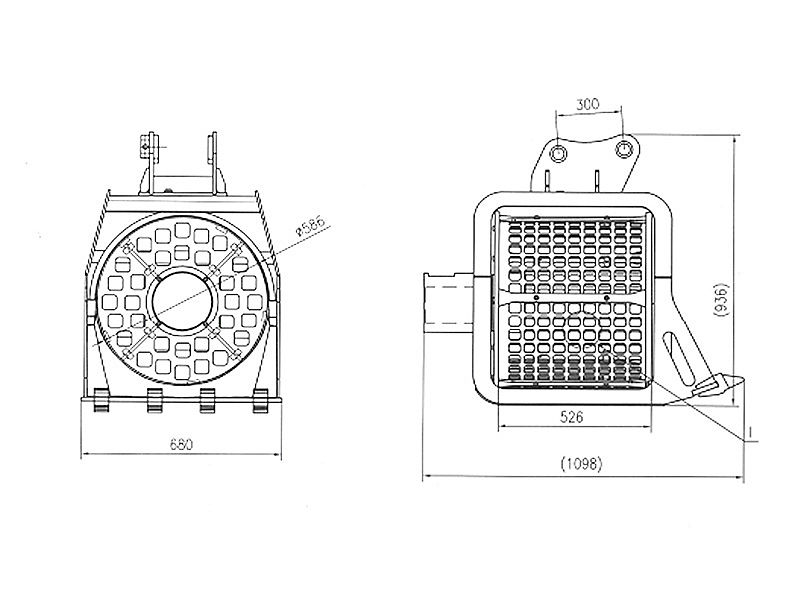

Advanced rotary screening bucket designed for mini excavators in the 2.5-5.5 ton class. Compatible with ZA20A, ZA28A, and ZA38A models, featuring appropriate mounting configurations to match respective pin specifications. Compact dimensions: 1098mm length x 592mm width x 396mm height with Ø592mm screening drum. Operating specifications: 10-12 MPa system pressure, 18-20 L/min rated flow, 30-35 rpm rotary speed. The rotating drum continuously agitates materials while automatically clearing particles from screen perforations, preventing clogging during operation. Standard 25mm mesh dimension with alternative mesh sizes available (optional). Perfect for soil separation, debris screening, and construction material sorting. Enhances operational flexibility and job site productivity by transforming your excavator into specialized screening equipment. Professional construction with 12-month warranty included.
Starting at
144 000 Kč
174 240 Kč VAT included
🛡️
Extend your warranty — 2 years for only + 6 500 Kč
FACTORY OPTIONS
 |
Custom mesh size | + 3 800 Kč |
DETAILED SPECIFICATION
| System Pressure (MPa) | 10-12 |
| Rated flux (L/min) | 18-20 |
| Excavator Weight (ton) | 2.5 - 5.5 |
| Rotary Screen diameter (mm) | 592 |
| Rotary Speed (r/m) | 30-35 |
| Bucket Width (mm) | 592 |
| Length (mm) | 1098 |
| Height (mm) | 396 |
 |
2 years | + 6 500 Kč |
