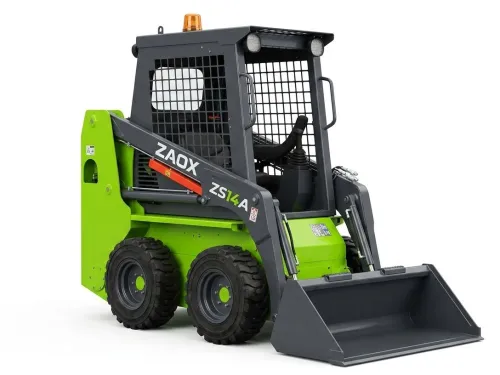

SKID LOADER ZS14A
SKID LOADER ZS14A
WEIGHT: 1 375 KG
ENGINE MODEL: Kubota D1105
DUMPING HEIGHT: 2000 mm
TWO YEAR WARRANTY
1070MM BUCKET
INTEGRATED MANUAL QUICK COUPLER

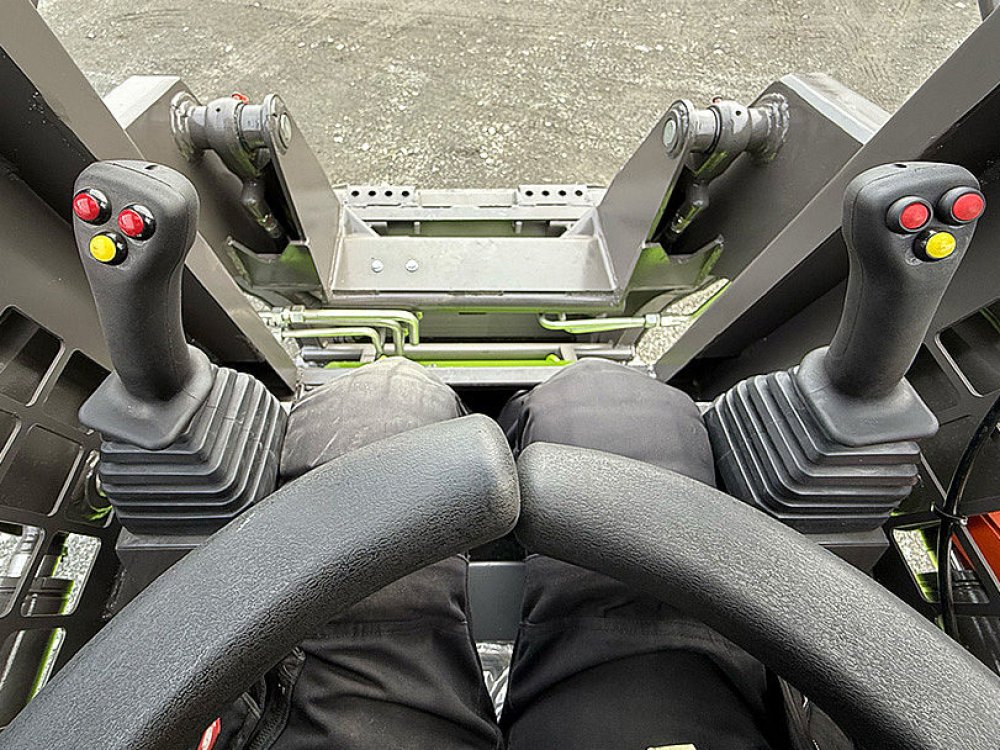

HYDRAULIC CONTROLS
ONE YEAR WARRANTY
3-WAY AUXILIARY HYDRAULICS

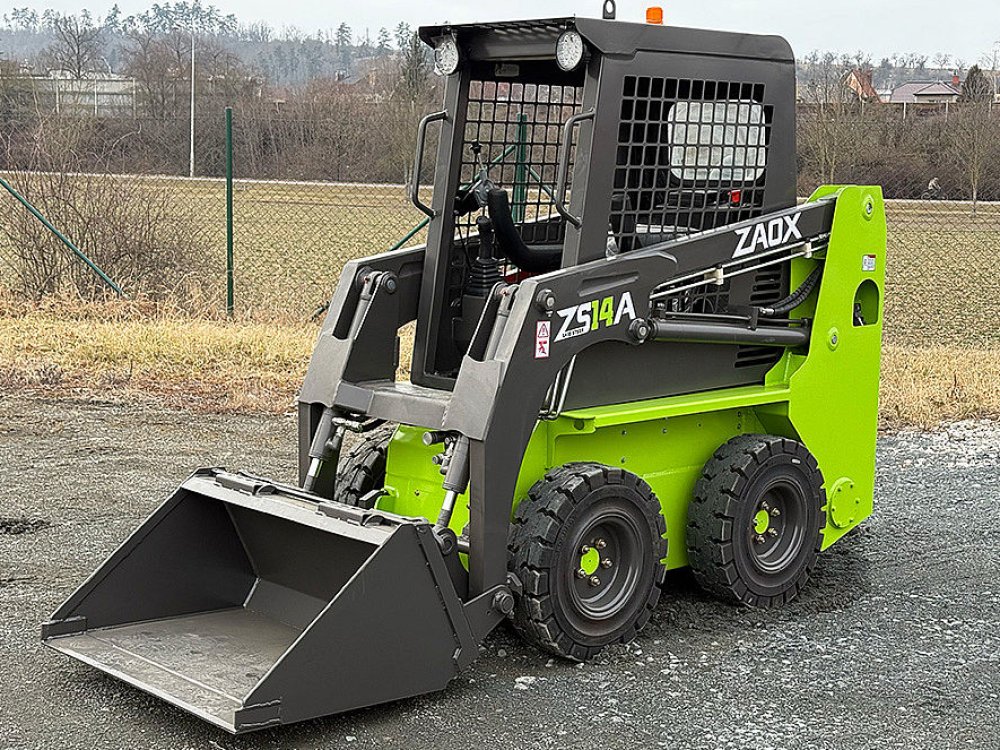

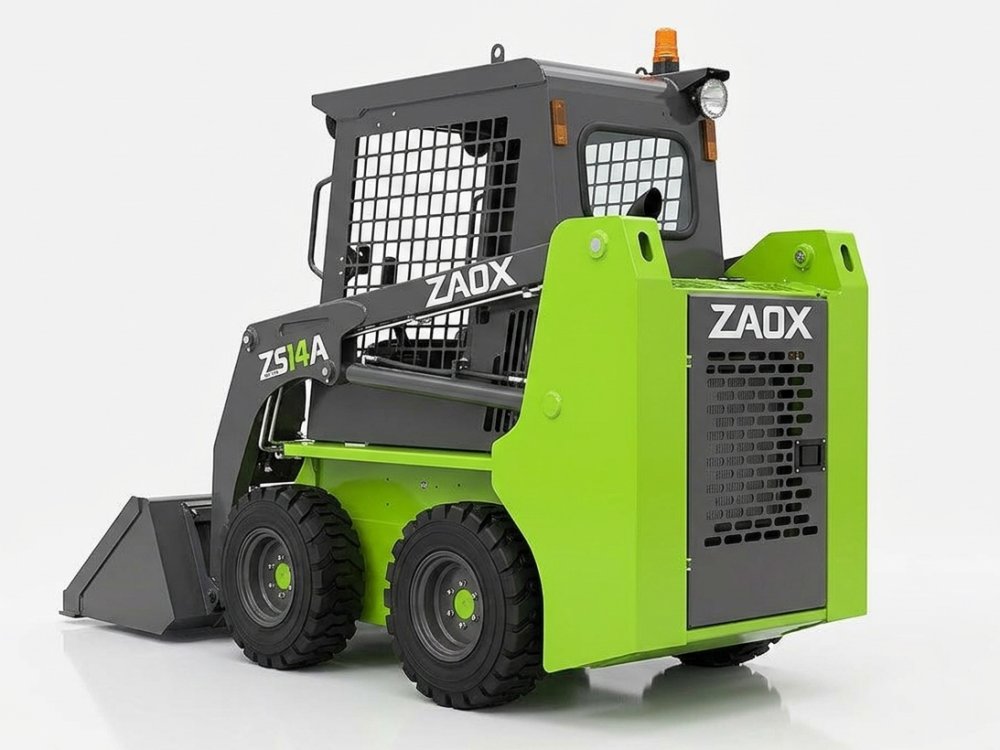

The Skid loader ZAOX ZS14A is a compact machine with an operating weight of about 1375 Kg, powered by a Euro V Kubota D1105 engine with low fuel consumption.
The machine is equipped with a bucket with a capacity of 0.2 m3, 1070 mm wide and reached the real dumping height of 2000 mm.
Compactness and ease of use, together with various attachments, make this vehicle an ideal companion for any type of company.
The machine is equipped with a bucket with a capacity of 0.2 m3, 1070 mm wide and reached the real dumping height of 2000 mm.
Compactness and ease of use, together with various attachments, make this vehicle an ideal companion for any type of company.
Starting at
360 000 Kč
435 600 Kč VAT included
🛡️
Extend your warranty — 2 years or 2000 hours for only + 26 000 Kč
FACTORY OPTIONS
 |
Heated Cabin | — |
 |
A/C | — |
AVAILABLE ACCESSORIES

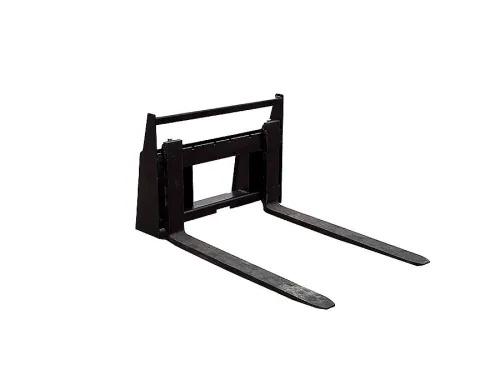

Pallet Fork

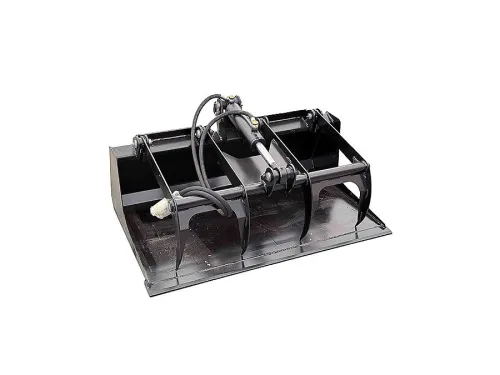

Grapple Bucket
DETAILED SPECIFICATION
| Bucket capacity (m³) | 0.2 |
| Max Speed (km/h? | 9 |
| Rated flux (L/min) | 50 |
| High Flow Flux (L/min) | / |
| Operative weight (Kg) | 1375 |
| Engine Model | Kubota D1105 |
| Power/revolution speed (Kw(HP)/rpm) | 18,2[24.7]/3000 |
| Fuel tank capacity (L) | 28 |
| Operating load (kg) | 380 |

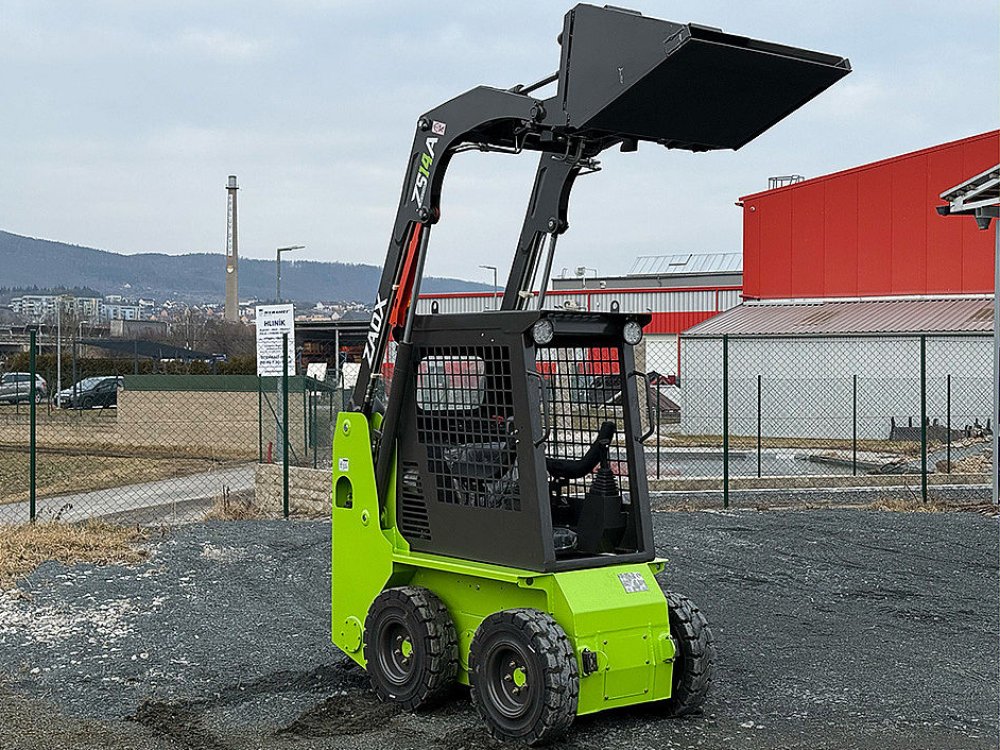

| Dumping height (mm) | 2000 |
| Dumping angle at maximum height (°) | 40 |
| Maximum Dumping Distance from Frame (mm) | 441 |
| Rollback of Bucket on Ground (°) | 30 |
| Rollback of Bucket at Full Height (°) | 103 |
| Front Turning Radius without Bucket (mm) | 960 |
| Front Turning Radius (mm) | 1660 |
| Rear Turning Radius (mm) | 1253 |
| Overall Operating Height (mm) | 3400 |
| Height to top of cab (mm) | 1813 |
| Length Without Bucket (mm) | 2200 |
| Overall Length with Bucket (mm) | 2950 |
| Width (mm) | 920 |
| Bucket Width (mm) | 1070 |
| Height to bottom of flat bucket (mm) | 2446 |
| Height to Bucket Hinge Pin (mm) | 2500 |
| Wheelbase (mm) | 801 |
| Ground Clearance (mm) | 145 |
| Angle of Departure (°) | 20 |
| Distance Between the Rear Axle and the Bumper (mm) | 910 |
| Tread Width (mm) | 785 |
 |
2 years or 2000 hours | + 26 000 Kč |
|
|
3 years or 3000 hours | + 44 000 Kč |
