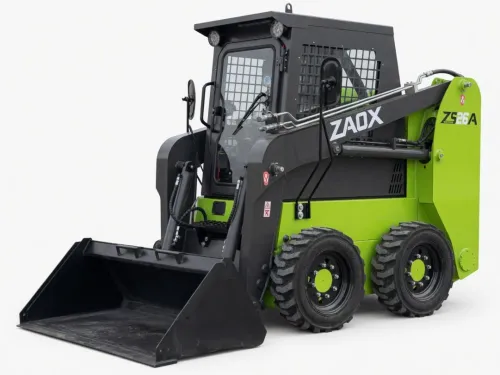

SKID LOADER ZS26A
SKID LOADER ZS26A
WEIGHT: 2 675 KG
ENGINE MODEL: LS Mtron L3CRV-T7
DUMPING HEIGHT: 2000 mm
LS MTRON L3CRV-T7 ENGINE
ONE YEAR WARRANTY
1400MM BUCKET
INTEGRATED MANUAL QUICK COUPLER
HYDRAULIC TRANSMISSION
3-WAY AUXILIARY HYDRAULICS

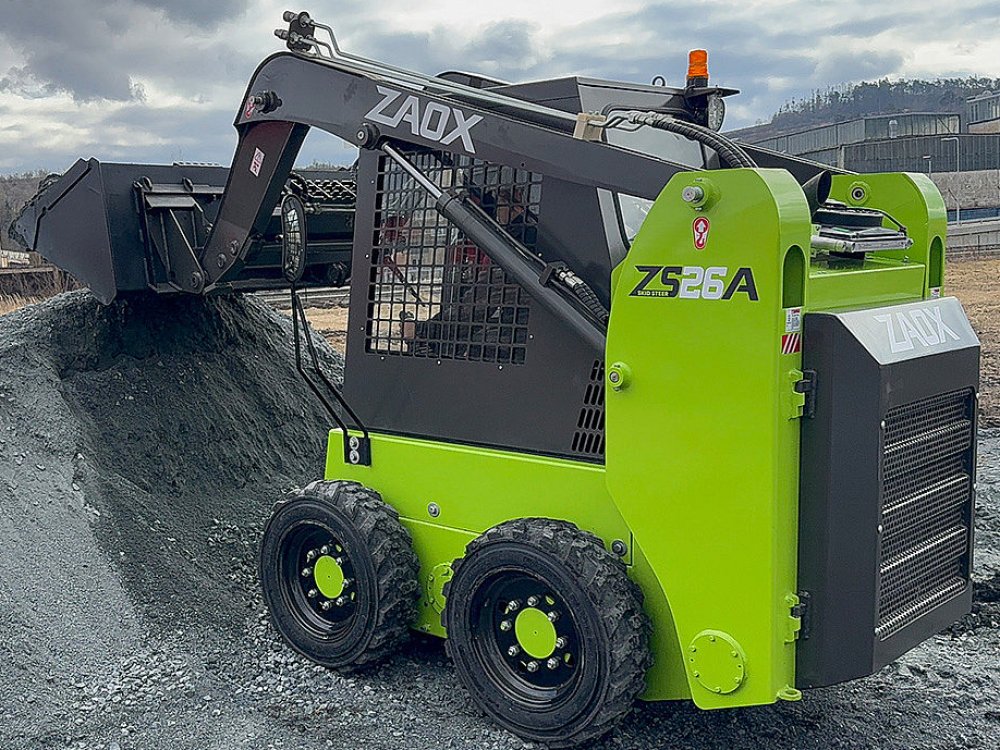

The Skid loader ZS26A from ZAOX, is a medium-sized machine with an operating weight of approximately 2675 kg, powered by a Korean LS Mtron L3CRV-T7 engine with Euro V standards, which guarantee low fuel consumption.
The machine is equipped with a bucket with a capacity of 0.3 m3, 1400 mm wide and has reached the real unloading height of 2000 mm.
Compactness and ease of use, high power, together with various accessories, make this vehicle an ideal companion for any type of company.
The machine is equipped with a bucket with a capacity of 0.3 m3, 1400 mm wide and has reached the real unloading height of 2000 mm.
Compactness and ease of use, high power, together with various accessories, make this vehicle an ideal companion for any type of company.
Starting at
464 000 Kč
561 440 Kč VAT included
🛡️
Extend your warranty — 2 years or 2000 hours for only + 30 000 Kč
FACTORY OPTIONS
 |
A/C | + 16 000 Kč |
 |
Hydraulic Controls | + 22 500 Kč |
AVAILABLE ACCESSORIES
Quick coupling plate for hydraulic hammer
Sweeper
Pallet Forks
Pallet Forks
LP129
DETAILED SPECIFICATION
| Bucket capacity (m³) | 0.3 |
| Max Speed (km/h? | 10 |
| Rated flux (L/min) | 60 |
| High Flow Flux (L/min) | / |
| Operative weight (Kg) | 2675 |
| Engine Model | LS Mtron L3CRV-T7 |
| Power/revolution speed (Kw(HP)/rpm) | 24.5[57]/2600 |
| Fuel tank capacity (L) | 60 |
| Operating load (kg) | 500 |
| Dumping height (mm) | 2000 |
| Dumping angle at maximum height (°) | 40 |
| Maximum Dumping Distance from Frame (mm) | 790 |
| Rollback of Bucket on Ground (°) | 30 |
| Rollback of Bucket at Full Height (°) | 104 |
| Front Turning Radius without Bucket (mm) | 1760 |
| Front Turning Radius (mm) | 1296 |
| Rear Turning Radius (mm) | 1098 |
| Overall Operating Height (mm) | 2675 |
| Height to top of cab (mm) | 2000 |
| Length Without Bucket (mm) | 2300 |
| Overall Length with Bucket (mm) | 2950 |
| Width (mm) | 1300 |
| Bucket Width (mm) | 1400 |
| Height to bottom of flat bucket (mm) | 2558 |
| Height to Bucket Hinge Pin (mm) | 2725 |
| Wheelbase (mm) | 879 |
| Ground Clearance (mm) | 140 |
| Angle of Departure (°) | 20 |
| Distance Between the Rear Axle and the Bumper (mm) | 946 |
| Tread Width (mm) | 1080 |
 |
2 years or 2000 hours | + 30 000 Kč |
|
|
3 years or 3000 hours | + 50 000 Kč |
