ZRV.085

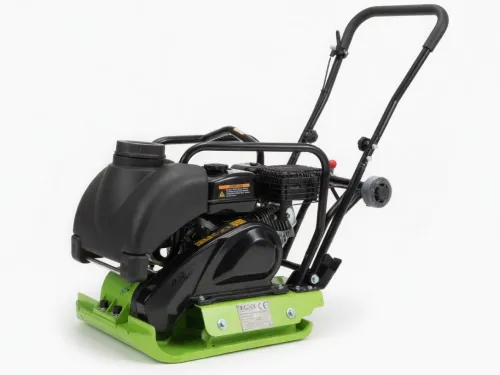

Vibratory Plate ZRV.085
WEIGHT: 85 KG
POWER: 5.5 HP
VIBRATING FORCE: 20 KN
The Vibratory Plate Compactor ZAOX model ZRV.85 is small size machinery with water tank, designed for use on granular soils, hot or cold asphalt, and paving blocks. This machinery is ideal for trenches, road construction, backfill, and foundation work. It is also suitable for compacting at the edges of road, abutment channel, groove in narrow trenches.

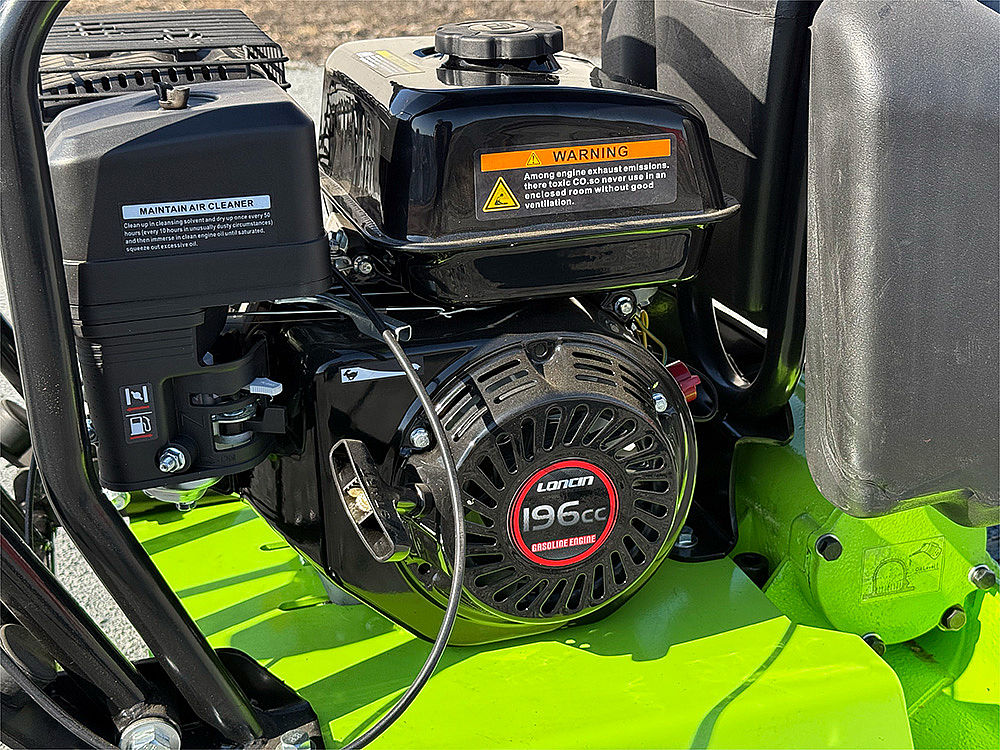

The Vibratory Plate Compactors ZAOX model ZRV.85 is powered by a reliable Euro V Loncin G200 engine, with high quality vibratory component and a very solid structure.
Even if the weight is just 85 kg, this machine has a surprising compacting capacity even at medium speed.
The Vibratory Plate Compactors ZAOX model ZRV.85 is powered by a reliable Euro V Loncin G200 engine, with high quality vibratory component and a very solid structure.
Even if the weight is just 85 kg, this machine has a surprising compacting capacity even at medium speed.
Starting at
21 500 Kč
26 015 Kč VAT included
AVAILABLE ACCESSORIES
Rubber Pad
DETAILED SPECIFICATION
| Fuel Tank Capacity (L) | 3.5 |
| Fuel | Petrol |
| Engine | Loncin G200 |
| Oil when temperature from 4°C to 50°C | SAE 30 |
| Oil when temperature from -9°C to 4°C | SAE 20 |
| Oil when temperature under -9°C | SA 10W-30 |
| Power (HP) | 5.5 |
| Working Area (mm) | 430x550 |
| Walking | Forward YES |
| Vibrating Force (KN) | 20 |
| Frequency (HZ) | 70 |
| Gradeability (%) | 25 |
| Weight (kg) | 75 |
