ZRV.175

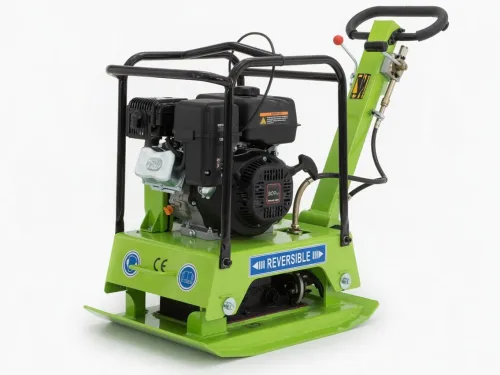

Vibratory Plate ZRV.175
WEIGHT: 175 KG
POWER: 5.4 HP
VIBRATING FORCE: 30 KN
The Vibratory Plate Compactor ZAOX model ZRV.175 is medium size machinery designed for heavy use on granular soils, hot or cold asphalt, and paving blocks. This machinery is superb for trenches, road construction, backfill, and foundation work. It is also suitable for compacting at the edges of road, abutment channel, groove in narrow trenches.

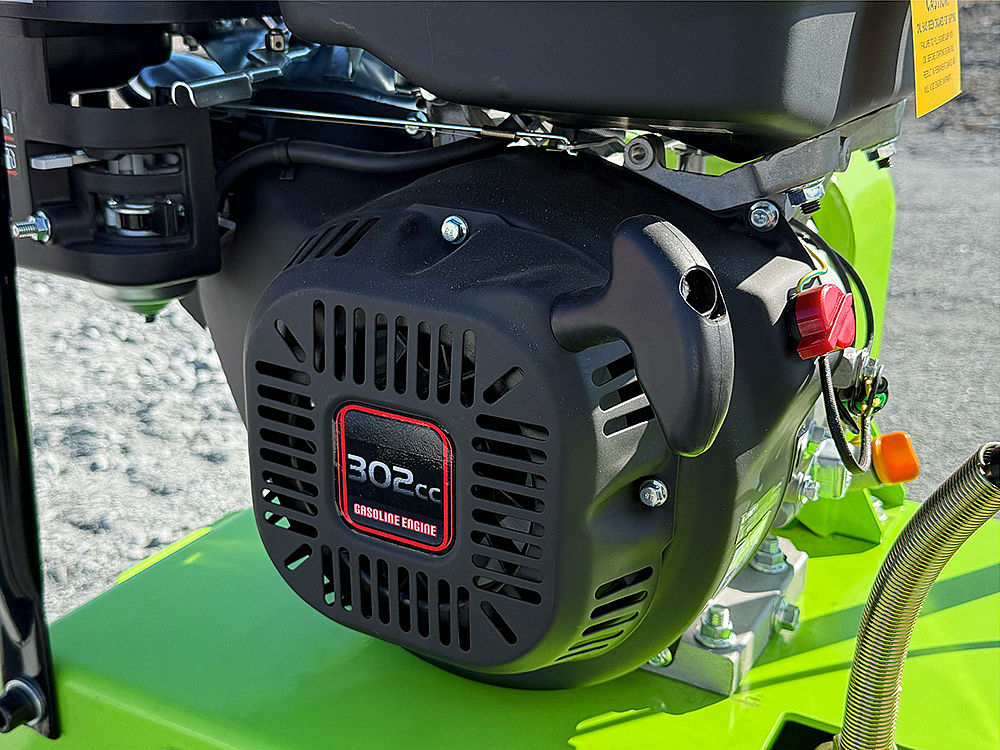

The Vibratory Plate Compactors ZAOX model ZRV.175 is powered by a reliable Euro V Loncin G300 engine, with high quality vibratory component and a very solid structure.
With a the weight 175 kg, this machinery is a powerful solution when high productivity is needed.
The Vibratory Plate Compactors ZAOX model ZRV.175 is powered by a reliable Euro V Loncin G300 engine, with high quality vibratory component and a very solid structure.
With a the weight 175 kg, this machinery is a powerful solution when high productivity is needed.
Starting at
30 000 Kč
36 300 Kč VAT included
DETAILED SPECIFICATION
| Engine | Loncin G300 |
| Oil when temperature from 4°C to 50°C | SAE 30 |
| Oil when temperature from -9°C to 4°C | SAE 20 |
| Oil when temperature under -9°C | SAE 10W-30 |
| Power (HP) | 5.4 |
| Working Area (mm) | 500x690 |
| Walking | Reversible |
| Vibrating Force (KN) | 30 |
| Frequency (HZ) | 70 |
| Gradeability (%) | 25 |
| Weight (kg) | 175 |
